CONFIGURING MAXPRO NVR
Configuring the Cameras
98 MAXPRO NVR 3.1 Operator’s Guide
4
Managing Analog Cameras
MAXPRO NVR Hybrid now supports Analog Capture card through which you can connect up
to 16 analog cameras. The following figures depict the MAXPRO NVR Hybrid SE, XE and PE
box with analog capture card.

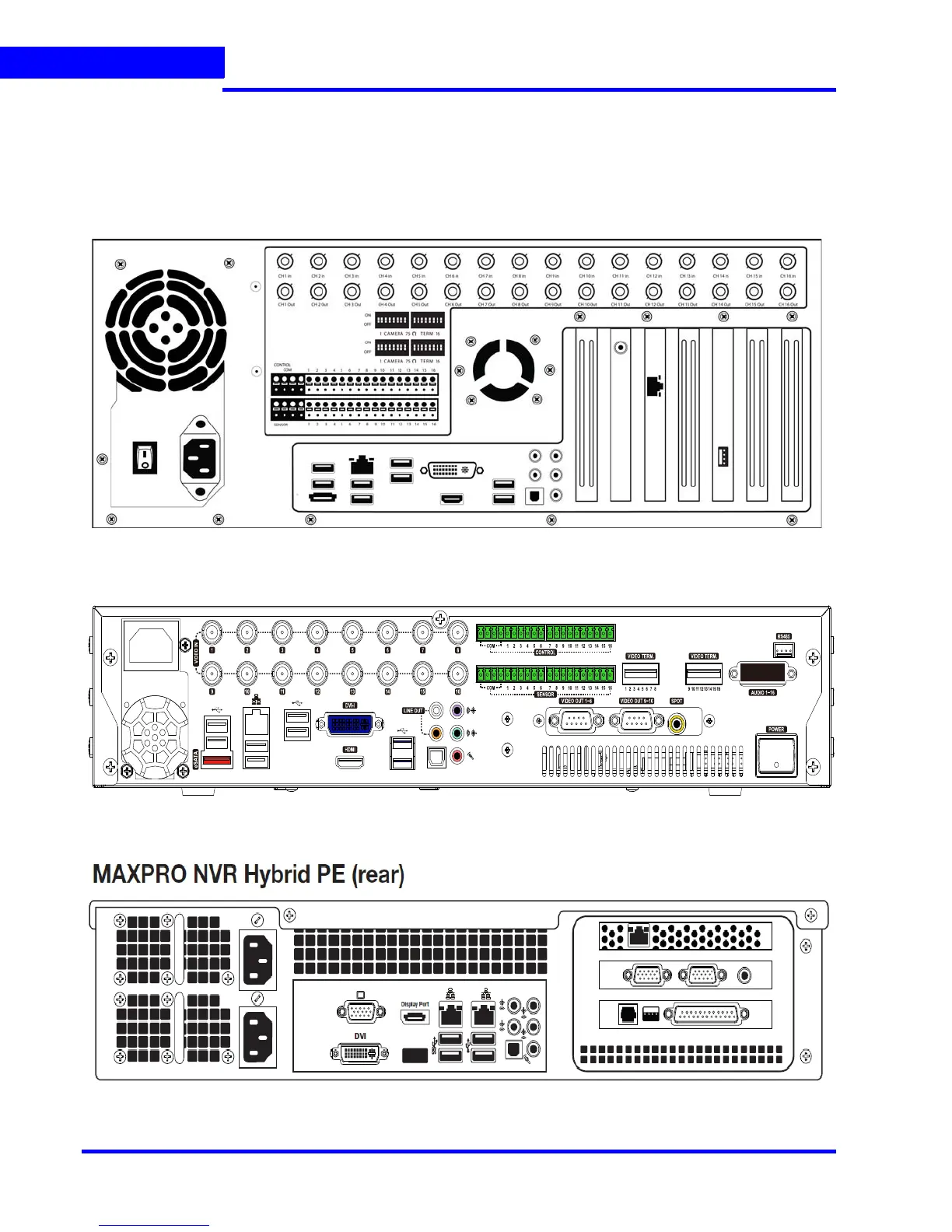

Figure 4-21 MAXPRO NVR Hybrid SE Rear View
Figure 4-22 MAXPRO NVR Hybrid XE Rear View
Figure 4-23 MAXPRO NVR Hybrid PE Rear View

Honeywell MAXPRO Specifications

General

Video Compression	H.264
Video Output	HDMI, VGA
Operating System	Embedded Linux
Network Interface	10/100 Mbps Ethernet
USB Ports	2 USB 2.0 ports
Remote Access	Web browser
Recording Resolution	Up to 1080p
Alarm Input/Output	4 Input
Power Supply	12VDC
Channels	4, 8, 16
Audio Input/Output	1 audio input, 1 audio output
