LOGGING ON AND FAMILIARIZATION
Port Forwarding
MAXPRO NVR 3.1 Operator’s Guide 47
• Server Port: 8001
• Controller IP: 199.63.245.84
• Controller Port: 8002
• Storage Engine IP: 199.63.245.84
• Storage Engine Port: 8003
Note: The mapping of the ports 8001, 8002, 8003 to the respective NVR IP and ports
(20007, 26026, 1000) helps an external MAXPRO NVR Internet client to connect
to the MAXPRO NVR system.
Scenario 2: Services mapped to existing ports
A single NVR is configured behind the router, and all the services on the NVR are running on
the default ports. In the router’s port forwarding section specify the default ports. The Internet
client can just specify the public IP Address and default ports to connect to the NVR. The
drawback of mapping to the same ports is that only one NVR can be behind the router.

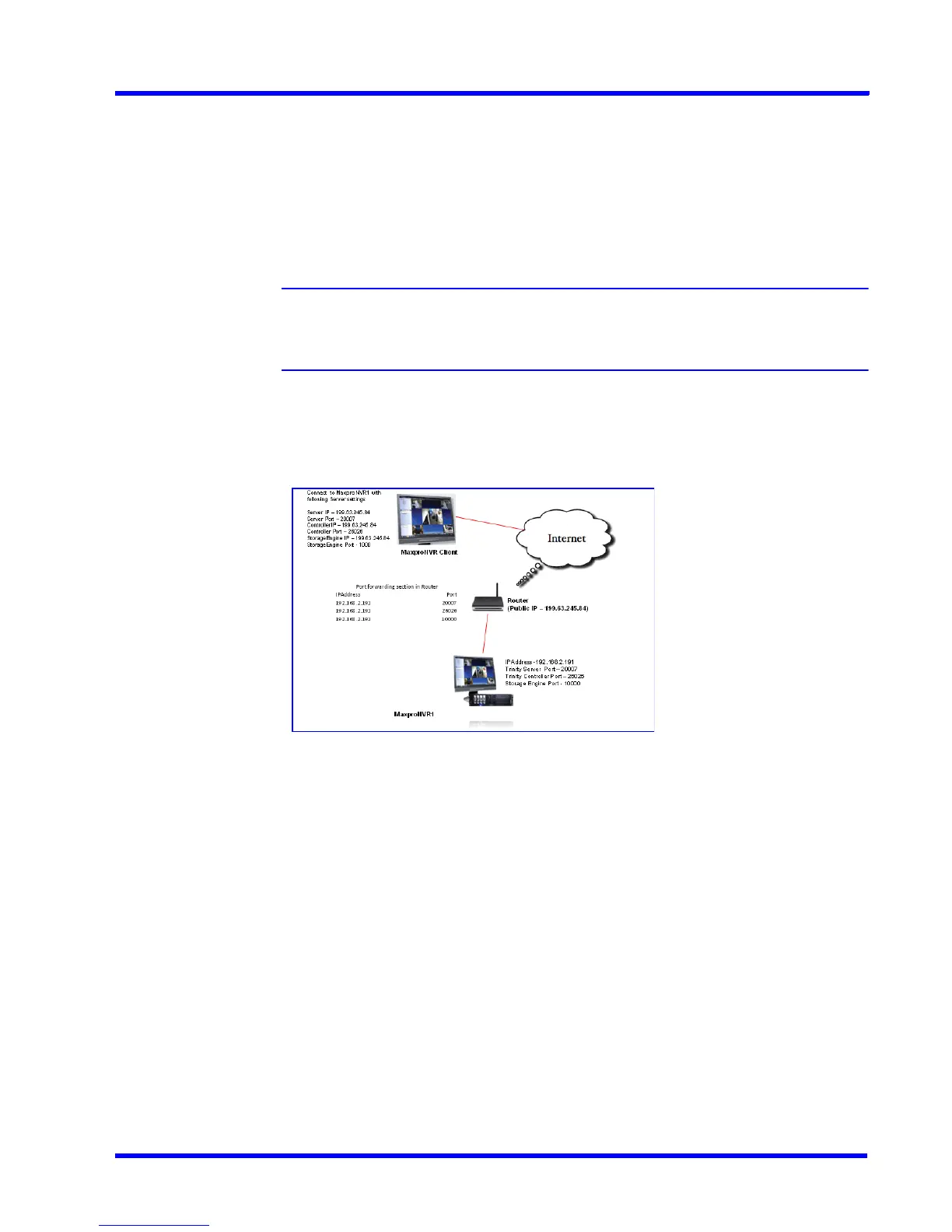

Figure 3-6 Port Forwarding scenario 2
In the above figure:
There is a single MAXPRO NVR 1 with the default port numbers, 20007, 26026, 10000
configured for the following services respectively:
• Trinity Server
• Trinity Controller
• Storage Engine
In the router’s port forwarding table, the default ports numbers for these services are
specified.
An external MAXPRO NVR client can access the MAXPRO NVRs using the following settings:
• Server IP: 199.63.245.84
• Server Port: 20007
• Controller IP: 199.63.245.84
