CONFIGURING MAXPRO NVR
Configuring the Disk Management Settings
MAXPRO NVR 3.1 Operator’s Guide 73
Note: By default, only the fixed drives are listed. See step 5 to explicitly add a network
drive or fixed drive.
• Storage Path - displays the default storage path for saving the recorded video. You
can type a new path for saving the recorded video
• Selected for Storage - By default, this check box is selected for all the fixed drives
that are listed except C: To disable video recording on a particular drive, clear the
Select for Storage check box corresponding to the drive.
• Total Space (GB) - displays the total space available on the drive.
• Free Space (GB) - displays the free space available on the drive.
• Current Recording Drive - displays a status indicator indicating that recording is
taking place on the drive. “Green” indicates that current recorded video is saved on
the drive.
4. Under Disk Space
The overall drive statistics specified for the recorded video at any point of time is indicated
by the following fields:
• Total available disk space - displays the total storage space available on the drives
used for saving the recorded video.
• Used non video disk space - displays the disk space used by non video data on the
drives.
• Used video disk space - displays the disk space on the drives used for saving the
recorded video.
• Free disk space - displays the free disk space available on the drives.
You can also view a graphical illustration of the drive statistics with legends for each of the
above fields.

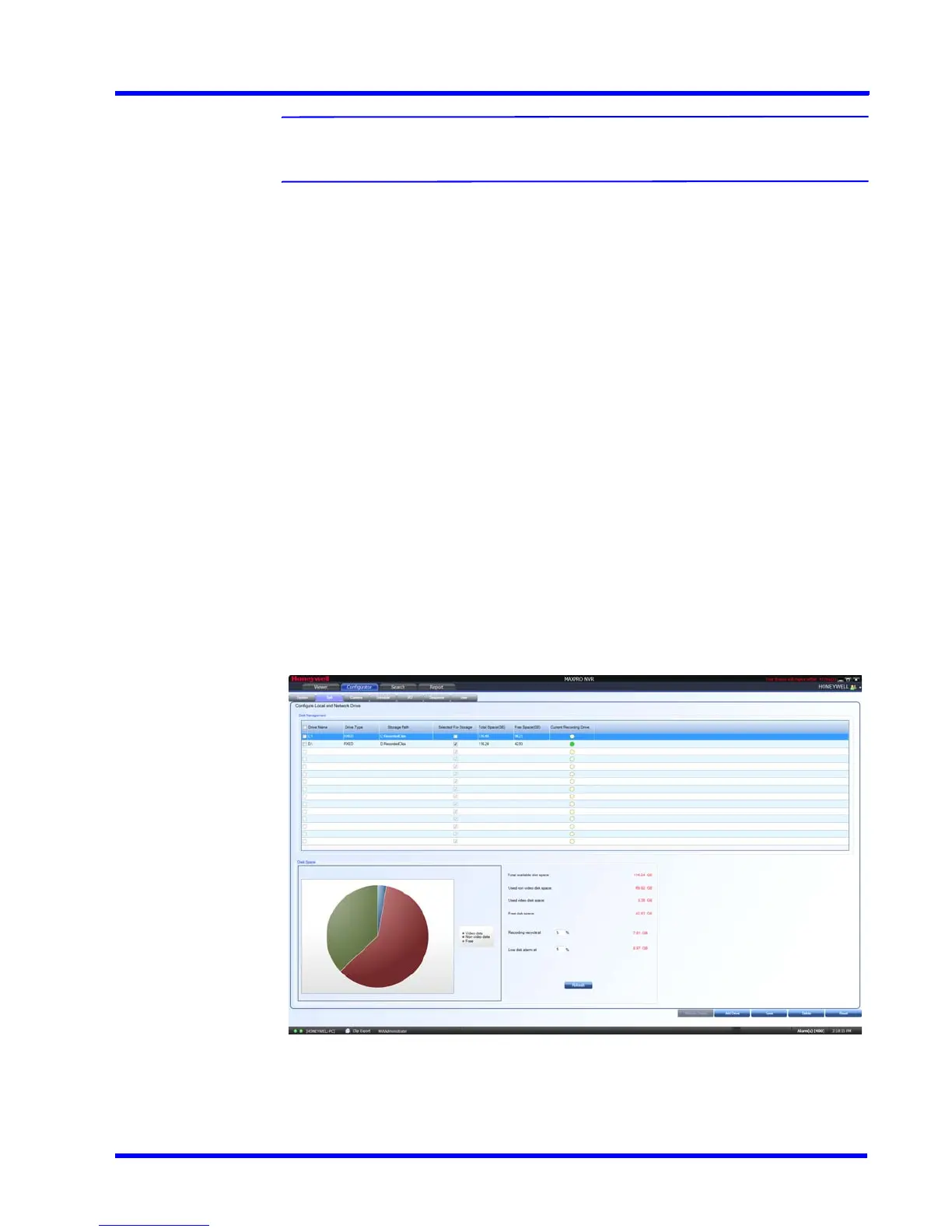

Figure 4-3 Graphical Illustration
