Using Instrument Functions
Using limit Testing
Delta Frequency This marker limit test allows you to set marker 1 as a frequency reference
against which marker 2 is limit tested.
1.
2.
3.
4.
5.

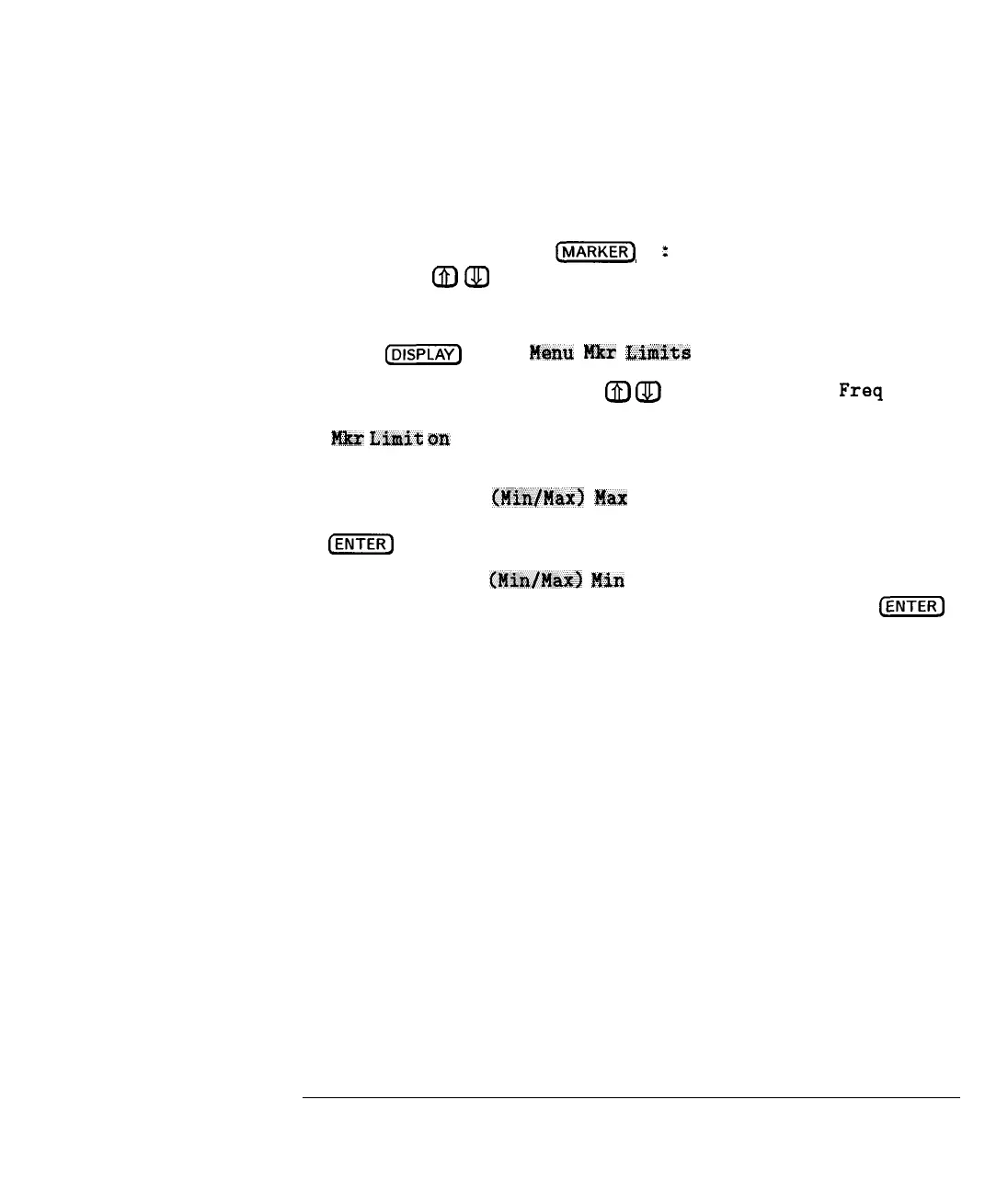

This limit test requires that you first use marker 1 to determine the
reference frequency: Press Cm) 2 :
and then use the front panel
knob or the @) @) keys to place marker 1 at the desired place on the
measurement trace. The frequency of marker 1 at this point becomes the
delta reference’ for this marker limit test.
Press @iKK) Limit Menu Mkr Limits
Use the front panel knob or the m (lJ keys to select Delta Freq in
the marker limit test table. Turn this limit function on by pressing the
Hkz LWt QT~ OFF key. Note that the entry in the on/off column of the
table changes to “on.”
Press Edit Limit C#ZnfHztx> M9x Limit and enter the maximum
limit using the front panel keypad and terminating the entry with the
(m) key.
Press Edit Limit C#~n/prX> Min Limit and enter the minimum limit
using the front panel keypad and terminating the entry with the [‘)
key.
4-43
