Calibrating for Increased Measurement
Accuracy
Check the Calibration
Load Match
Load match is a transmission measurement error term. It is
a measure of the re-reflections contributed from the match
of the THRU standard and the receiver port (RF IN).
A typical value for this match term is < - 10 dB.
WI: Memory
D2: Off
Log Mag
5.0 dB/ Ref -45.00 dB C
I I
I I
I
I
I
I
I
I
I
I
I
I I
Start 0.300 MHZ
Stoo 1 300.000 MHZ

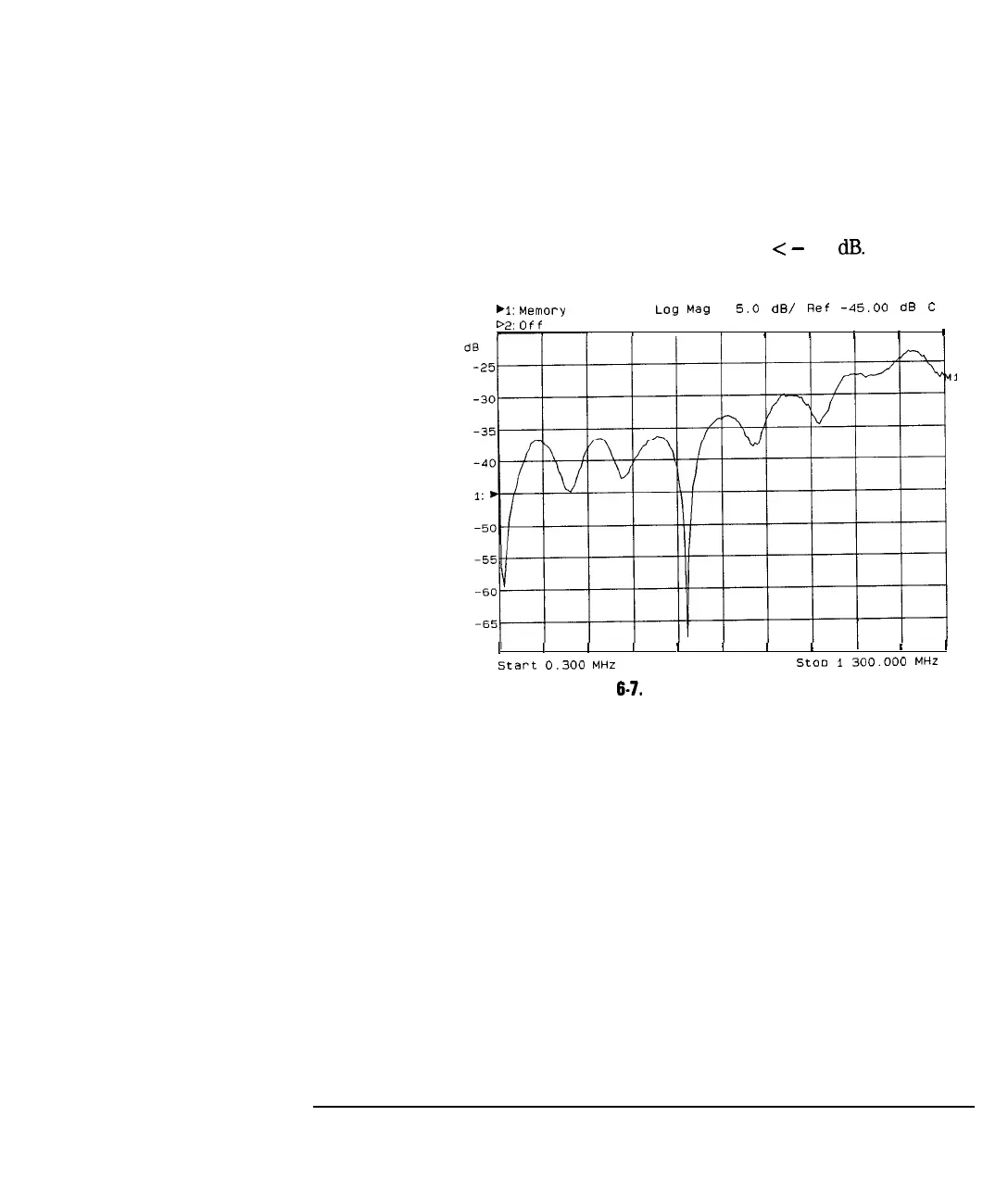

Figure 6-7. Typical load Match Error Term
