HP 8712C User Manual

I
-
I
-
B*
R*/R*
B/R

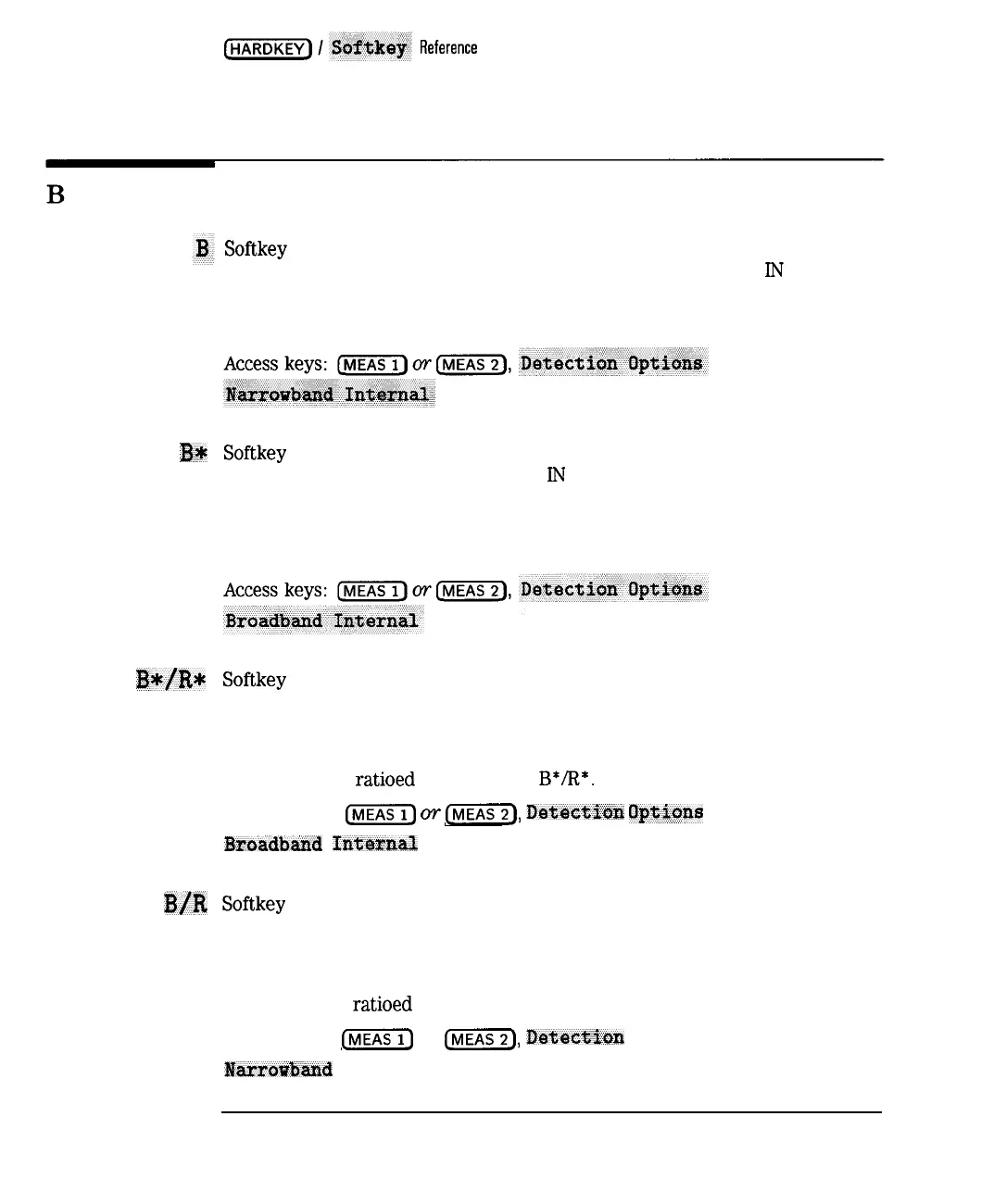

Softkey in the narrowband internal menu. Selects tuned receiver
transmission measurement of input B (power transmitted to RF IN port).
See “Measuring Devices with Your Network Analyzer” in Chapter 3 for more
information on input B.
Softkey in broadband internal menu. Selects diode detector measurement
of input B* (power transmitted to RF IN port). This is the “power”
measurement detector.
See “Measuring Devices with Your Network Analyzer” in Chapter 3 for more
information on input B*.
Softkey in broadband internal menu. Selects diode detector transmission
measurement; ratio of input B* (broadband transmitted power) to input R*
(broadband reference signal).
See “Measuring Devices with Your Network Analyzer” in Chapter 3 for more
information on ratioed measurement B*/R*.
Access Keys: C-1 o?” (j-2), Detoct%oft Opticrns
&oadbartd Intar*naI
Softkey in narrowband internal menu. Selects tuned receiver transmission
measurement; ratio of input B (transmitted power) to input R (reference
signal).
See “Measuring Devices with Your Network Analyzer” in Chapter 3 for more
information on ratioed measurement B/R.
Access keys: [jE%i) or (j-1, Wtection Options
Namowband Internal
9-10
