Getting Started
Entering Measurement Parameters

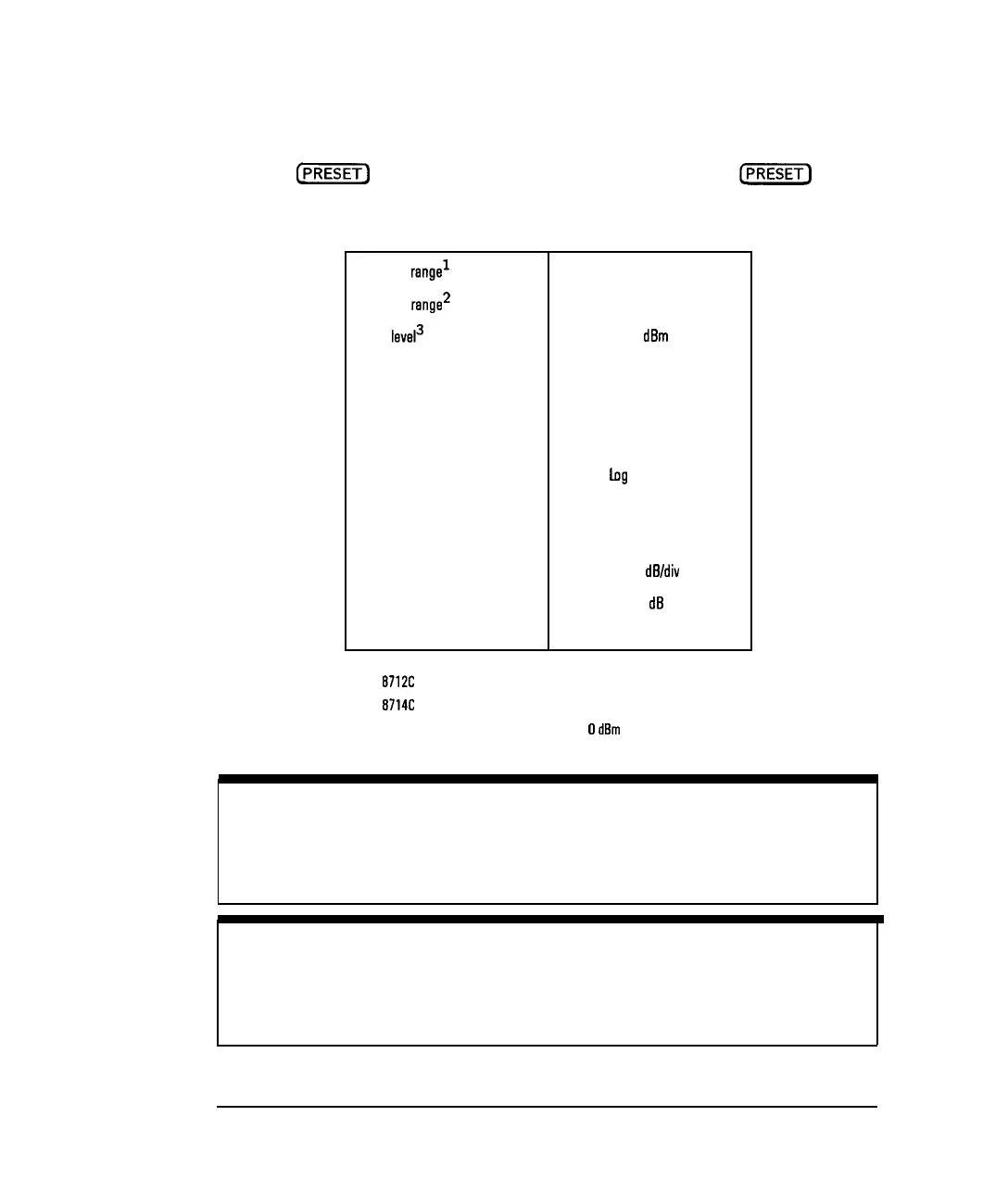

Presetting the Analyzer Press the
(FEEEQ
key. When the analyzer is preset with the
@SiZi]
key,
it reverts to a known operating condition. When this key is pressed, the
following major default conditions apply:
Frequency
rangel
0.3 to 1300 MHz
Frequency range* 0.3 to 3000 MHz
Power level3 0
dBm
Measurement Channel 1
Transmission
measurement
Measurement Channel 2
Off
measurement
Format
leg
Magnitude
Number of points
201
Sweep time
Auto
Scale
10 dB/div
Reference 0
dB
System Bandwidth
Medium Wide
1 HP
87121:
only
2 HP
8714C
only
3 Preset power level can be set to other then 0
dBm
if desired. See ‘Entering
Source Power Level,’ later in this chapter for more information.
NOTE
The measurement parameters that you enter will be retained in the analyzer’s memory when the
power is turned off, and will be restored when the power is turned back on.
See Also
Refer to Chapter 12, “Preset State and Memory Allocation,” for a comprehensive table of preset
conditions.
