Port-Based Virtual LANs (VLANs) and GVRP

Port-Based Virtual LANs (Static VLANs)

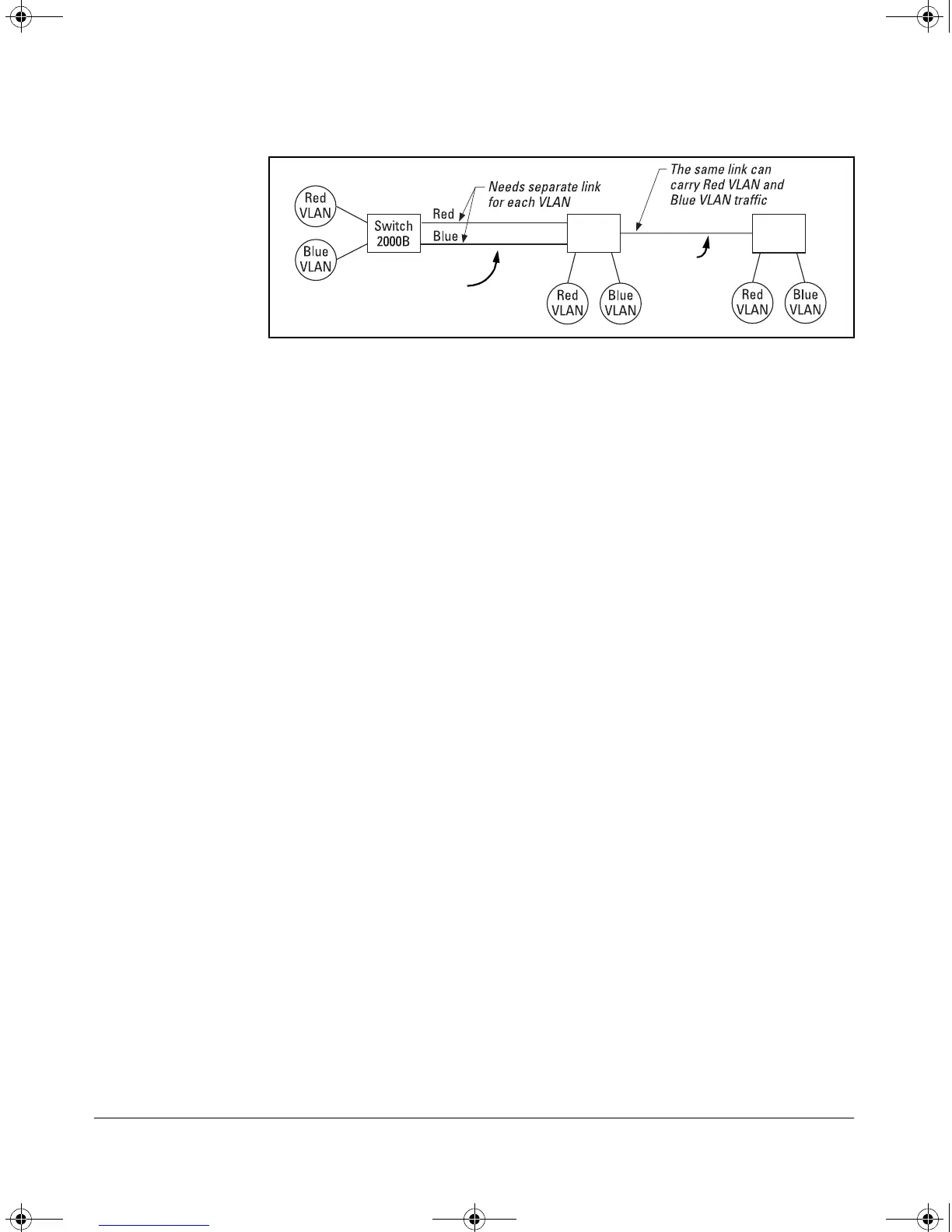

Figure 11-4. Example of Tagged and Untagged VLAN Technology in the Same

Network

For more information on VLANs, refer to:

■ “Overview of Using VLANs” (page 11-6)

■ “Menu: Configuring VLAN Parameters (page 11-10)

■ “CLI: Configuring VLAN Parameters” (page 11-10)

■ “Web: Viewing and Configuring VLAN Parameters” (page 11-21)

■ “VLAN Tagging Information” (page 11-22)

■ “Effect of VLANs on Other Switch Features” (page 11-30)

■ “VLAN Restrictions” (page 11-31)

Overview of Using VLANs

VLAN Support and the Default VLAN

In the factory default configuration, all ports on the switch belong to the

default VLAN (named DEFAULT_VLAN). This places all ports in the switch

into one physical broadcast domain. In the factory-default state, the default

VLAN is the primary VLAN.

You can partition the switch into multiple virtual broadcast domains by adding

one or more additional VLANs and moving ports from the default VLAN to the

new VLANs. (The Switches 2650 and 6108 support up to 30 VLANs.) You can

change the name of the default VLAN, but you cannot change the default

VLAN’s VID (which is always “1”). Although you can remove all ports from the

default VLAN, this VLAN is always present; that is, you cannot delete it from

the switch.

Non-802.1Q-

compliant switch

Switch

2524

Procurve

Switch

Procurve

Switch

Untagged VLAN Links

Tagged VLAN

Link
