2-7

Using the Menu Interface

Main Menu Features

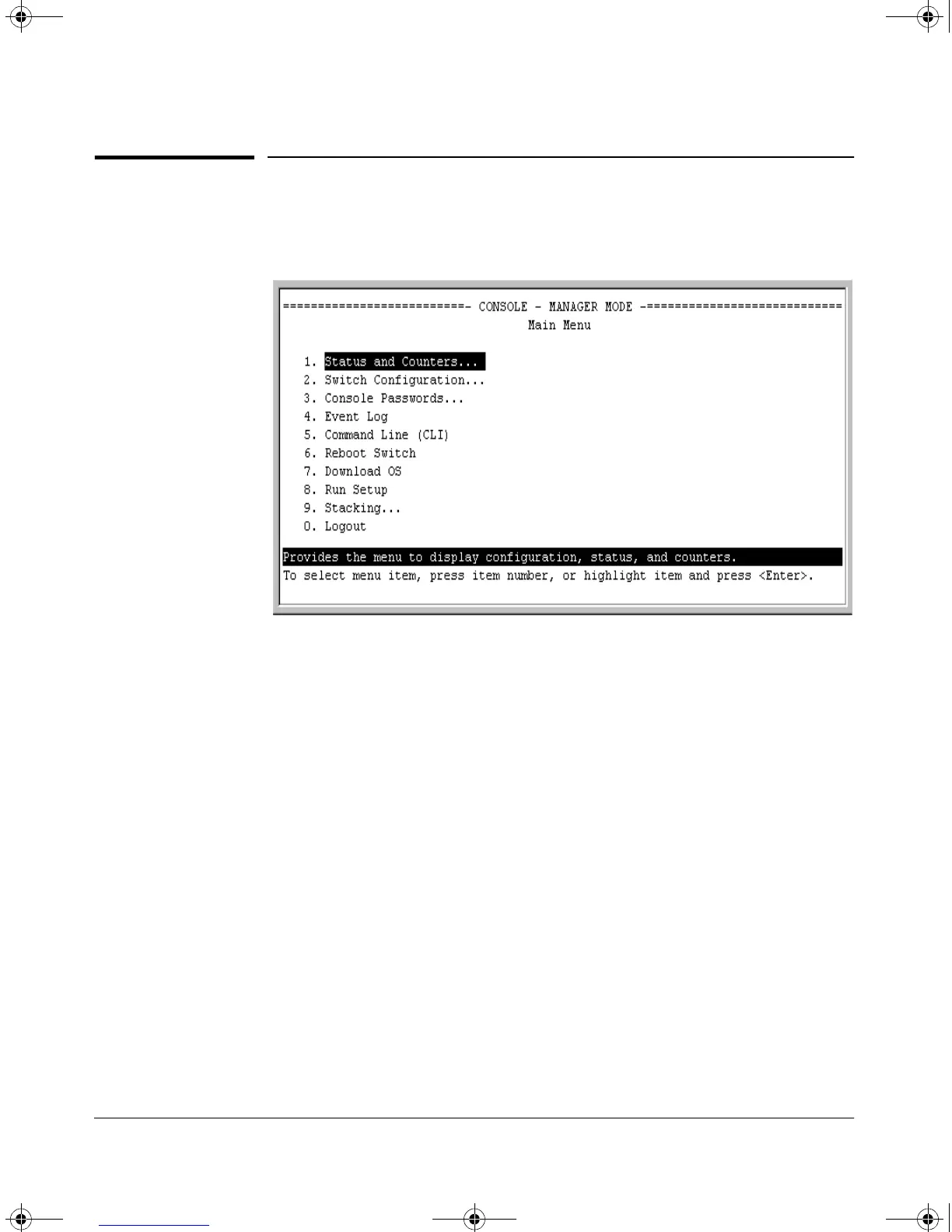

Figure 2-3. The Main Menu View with Manager Privileges

The Main Menu gives you access to these Menu interface features:

■ Status and Counters: Provides access to display screens showing

switch information, port status and counters, port and VLAN address

tables, and spanning tree information. (See Chapter B, “Monitoring and

Analyzing Switch Operation”.)

■ Switch Configuration: Provides access to configuration screens for

displaying and changing the current configuration settings. (See the Con-

tents listing at the front of this manual.) For a listing of features and

parameters configurable through the menu interface, see the “Menu Fea-

tures List” on page 2-14 .

■ Console Passwords: Provides access to the screen used to set or change

Manager-level and Operator-level passwords, and to delete Manager and

Operator password protection. (See the local password chapter in the

Access Security Guide shipped with your switch.)

■ Event Log: Enables you to read progress and error messages that are

useful for checking and troubleshooting switch operation. (See “Using the

Event Log To Identify Problem Sources” on page C-21.)

!Software.book Page 7 Thursday, October 10, 2002 6:10 PM
