Using the HP Web Browser Interface
Status Reporting Features
Status Reporting Features
Browser elements covered in this section include:
■ The Overview window (below)
■ Port utilization and status (page 4-16)
■ The Alert log (page 4-19)
■ The Status bar (page 4-22)
The Overview Window
The Overview Window is the home screen for any entry into the web browser
interface.The following figure identifies the various parts of the screen.

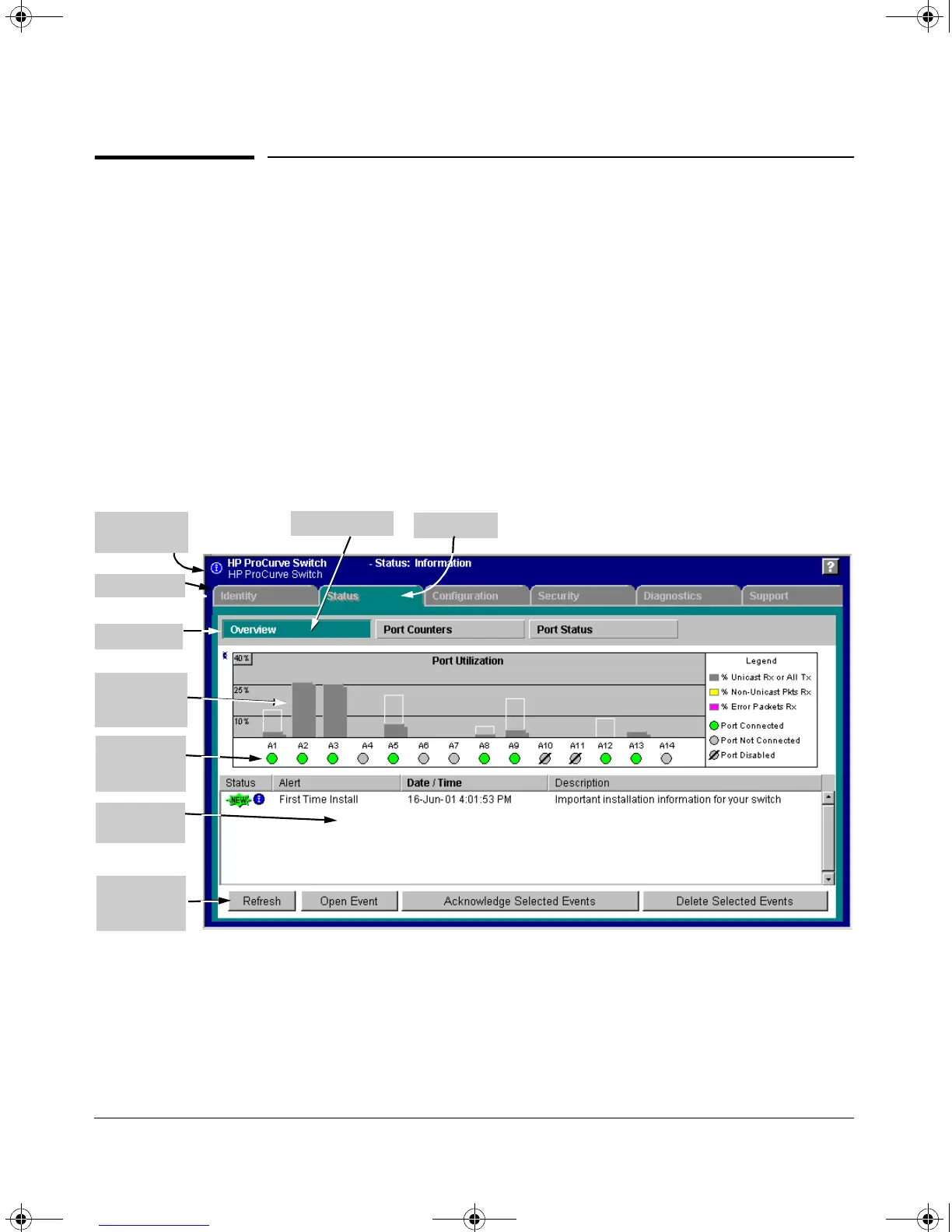

Figure 4-8. The Overview Window
Alert Log
Control Bar
Port Utiliza-
tion Graphs
(page 4-16)
Active Tab
Active Button
Alert Log
(page 4-19)
Port Status
Indicators
(page 4-18)
Button Bar
Tab Bar
Status Bar
(page 4-22)
