B-9

Monitoring and Analyzing Switch Operation

Status and Counters Data

Menu Access to Port and Trunk Statistics

To access this screen from the Main Menu, select:

1. Status and Counters . . .

4. Port Counters

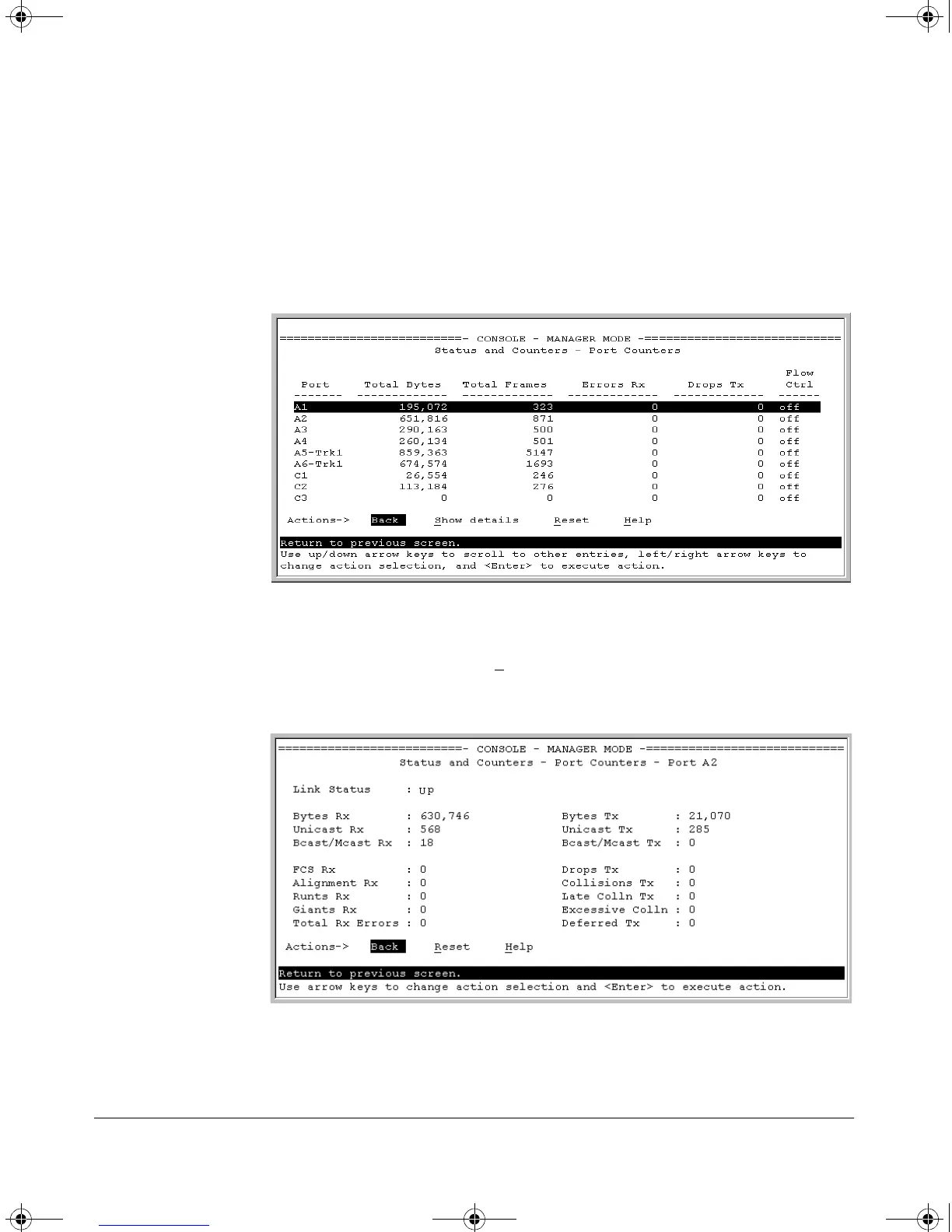

Figure B-5. Example of Port Counters on the Menu Interface

To view details about the traffic on a particular port, use the [v] key to highlight

that port number, then select S

how Details. For example, selecting port A2

displays a screen similar to figure B-6, below.

Figure B-6. Example of the Display for Show details on a Selected Port

This screen also includes the Reset action for the current session. (See the

“Note on Reset” on page B-8.)

!Software.book Page 9 Thursday, October 10, 2002 6:10 PM
