HP ProCurve 2650 User Manual

B-4
Monitoring and Analyzing Switch Operation
Status and Counters Data
Menu Access To Status and Counters
Beginning at the Main Menu, display the Status and Counters menu by select-
ing:
1. Status and Counters

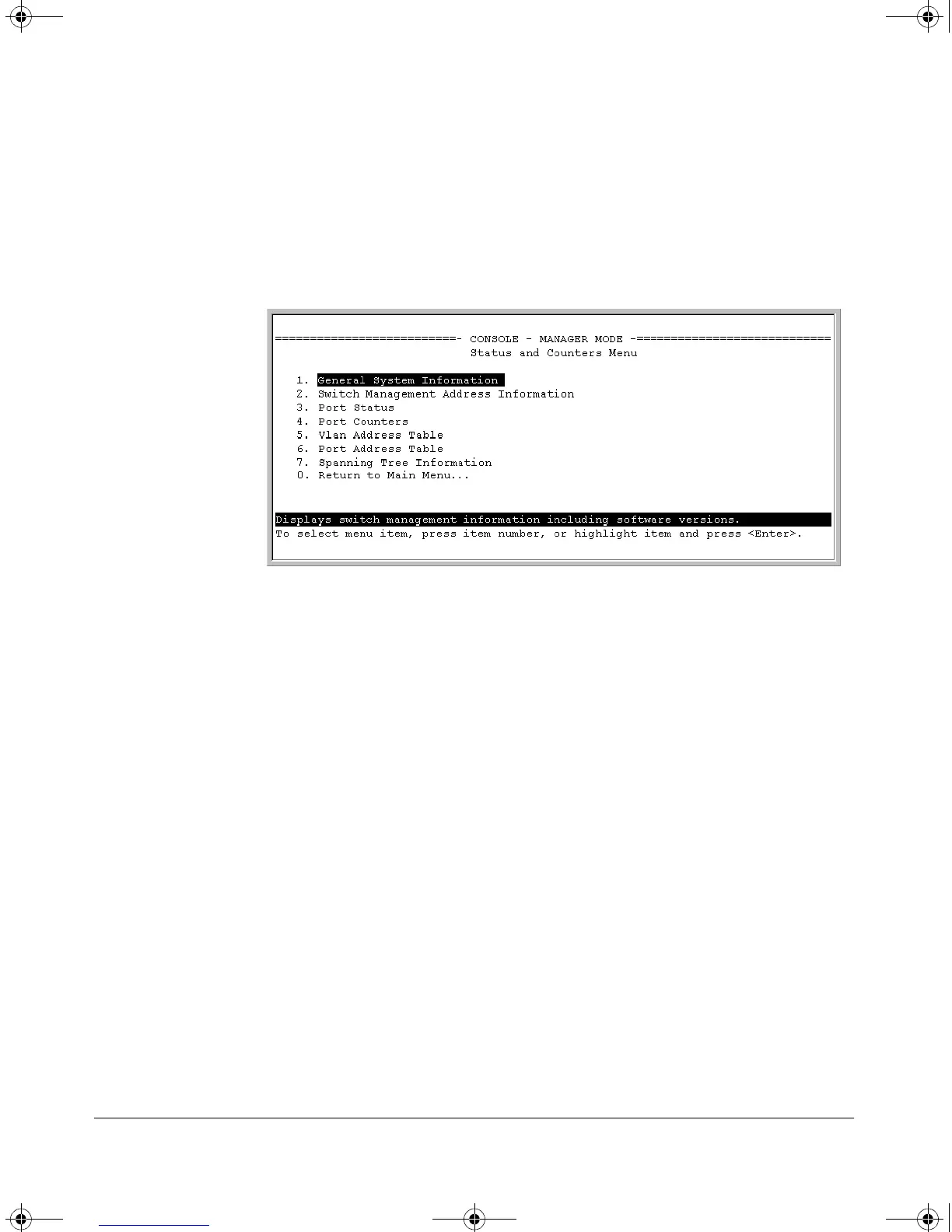

Figure B-1. The Status and Counters Menu
Each of the above menu items accesses the read-only screens described on
the following pages. Refer to the online help for a description of the entries
displayed in these screens.
!Software.book Page 4 Thursday, October 10, 2002 6:10 PM

HP ProCurve 2650 Specifications

General

Switching Capacity	13.6 Gbps
Forwarding Rate	10.1 Mpps
Layer	2
Jumbo Frame Support	Yes
Form Factor	Rack-mountable
VLAN Support	Yes
Layer 3 Routing	No
PoE Support	No
Fanless	No
Altitude	Up to 3, 000 meters
Management	CLI, SNMP
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	15% to 95% non-condensing
