11-10
Port-Based Virtual LANs (VLANs) and GVRP
Port-Based Virtual LANs (Static VLANs)
Menu: Configuring VLAN Parameters
In the factory default state, support is enabled for up to eight VLANs. (You can
change the switch VLAN configuration to support up to 30 VLANs.) Also, all
ports on the switch belong to the default VLAN (DEFAULT_VLAN) and are in
the same broadcast/multicast domain. (The default VLAN is also the default
primary VLAN—see “The Primary VLAN” on page 11-7.) In addition to the
default VLAN, you can configure up to 29 other static VLANs by changing the
“Maximum VLANs” parameter, adding new VLAN names and VIDs, and then
assigning one or more ports to each VLAN. (The switch accepts a maximum
of 30 VLANs, including the default VLAN and any dynamic VLANs the switch
creates if you enable GVRP—page 11-33.) Note that each port can be assigned
to multiple VLANs by using VLAN tagging. (See “VLAN Tagging Information”
on page 11-22.)
To Change VLAN Support Settings
This section describes:
■ Changing the maximum number of VLANs to support
■ Changing the primary VLAN selection (See “Changing the Primary VLAN”
on page 11-18.)
■ Enabling or disabling dynamic VLANs (See “GVRP” on page 11-33.)
1. From the Main Menu select:
2. Switch Configuration
8. VLAN Menu . . .
1. VLAN Support
You will then see the following screen:

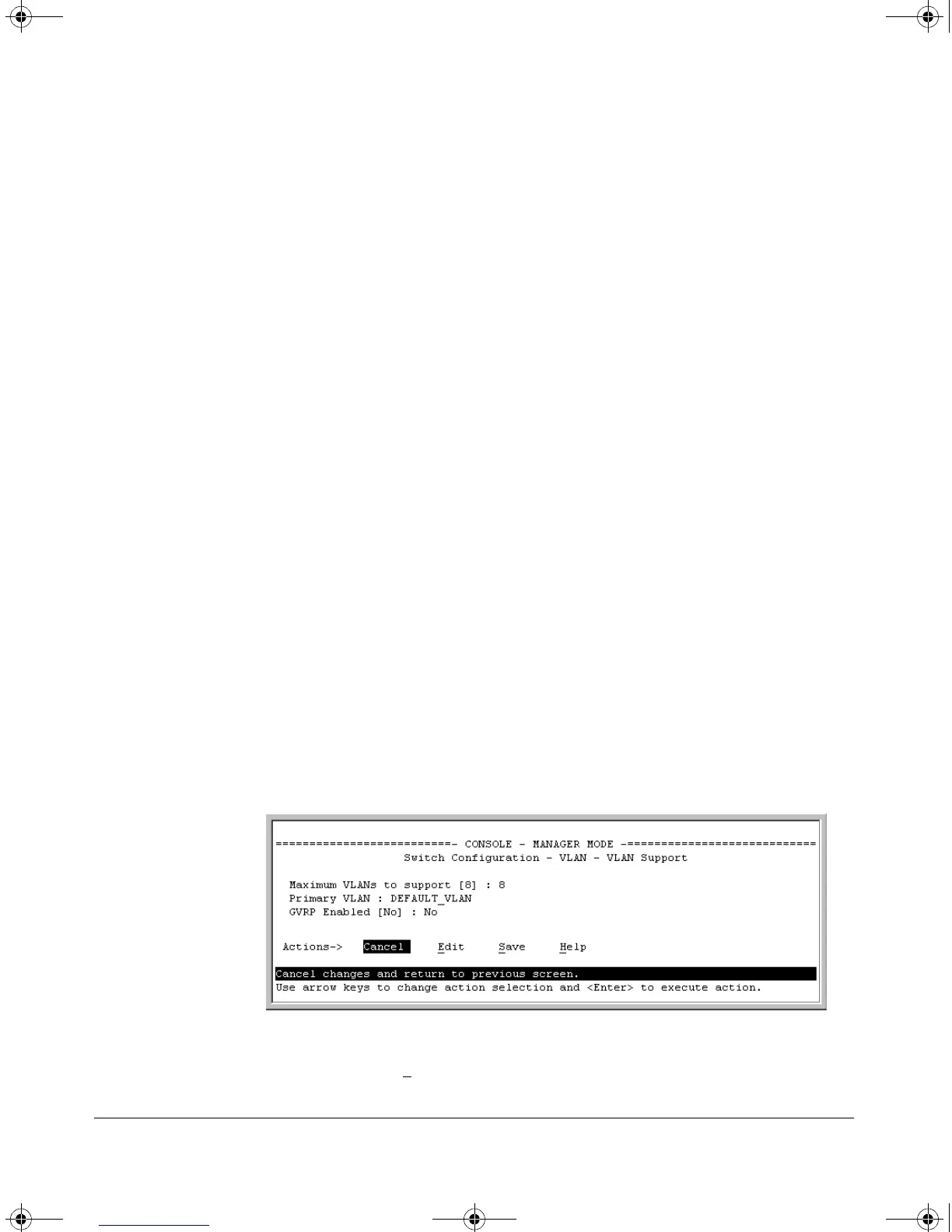

Figure 11-6. The Default VLAN Support Screen
2. Press (for E
dit), then do one or more of the following:
!Software.book Page 10 Thursday, October 10, 2002 6:10 PM
