9-5

Optimizing Traffic Flow with Port Controls, Port Trunking, and Port-Based Priority

Viewing Port Status and Configuring Port Parameters

Menu: Viewing Port Status and Configuring Port

Parameters

From the menu interface, you can configure and view all port parameter

settings and view all port status indicators.

Using the Menu To View Port Status. The menu interface displays the

status for ports and (if configured) a trunk group.

From the Main Menu, select:

1. Status and Counters. . .

4. Port Status

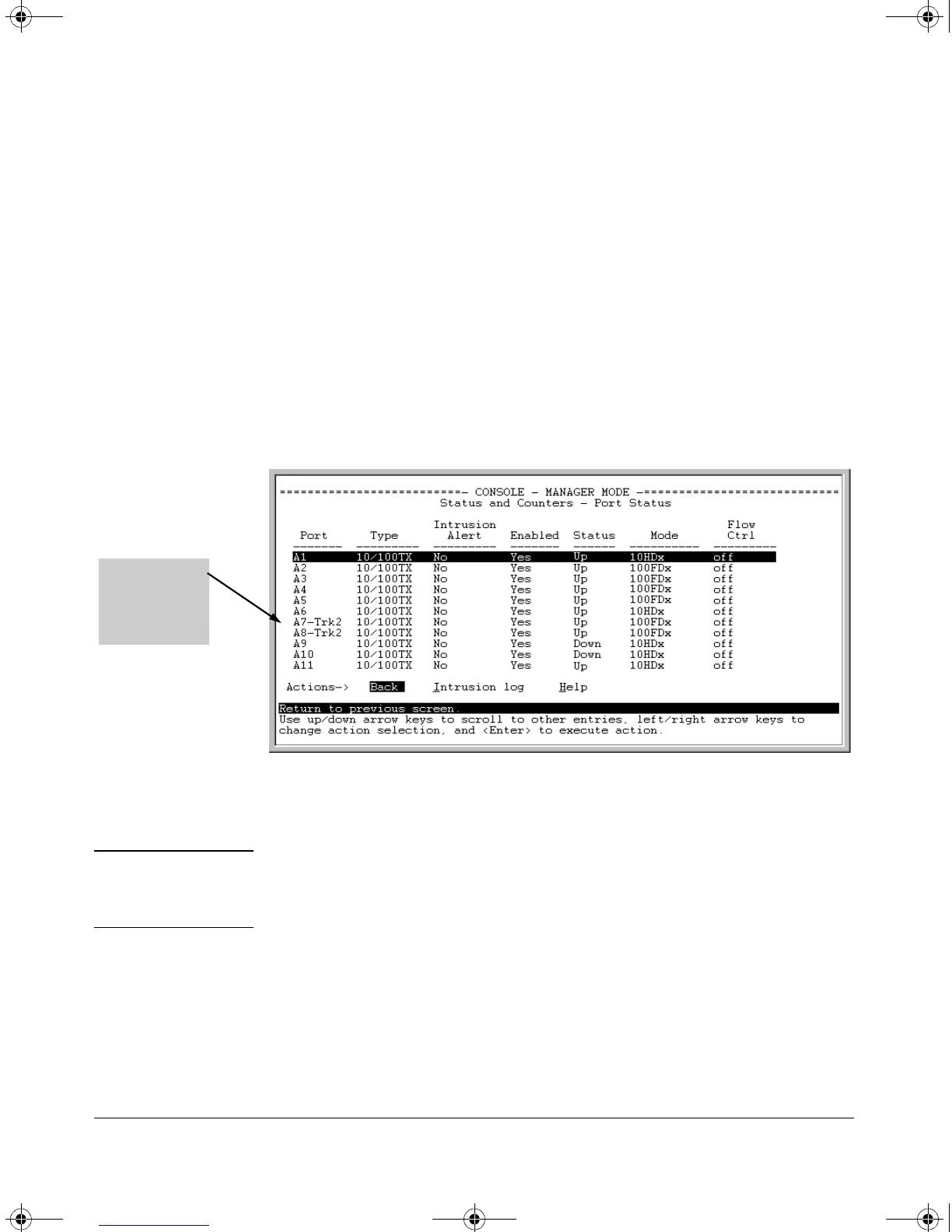

Figure 9-1. Example of the Port Status Screen

Using the Menu To Configure Ports.

Note The menu interface uses the same screen for configuring both individual ports

and port trunk groups. For information on port trunk groups, see “Port

Trunking” on page 9-10.

1. From the Main Menu, Select:

2. Switch Configuration...

2. Port/Trunk Settings

In this example,

ports A7 and A8

have previously

been configured

as a trunk group.

!Software.book Page 5 Thursday, October 10, 2002 6:10 PM
