User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN 151
Innomar Technologie GmbH (2023-01) 151

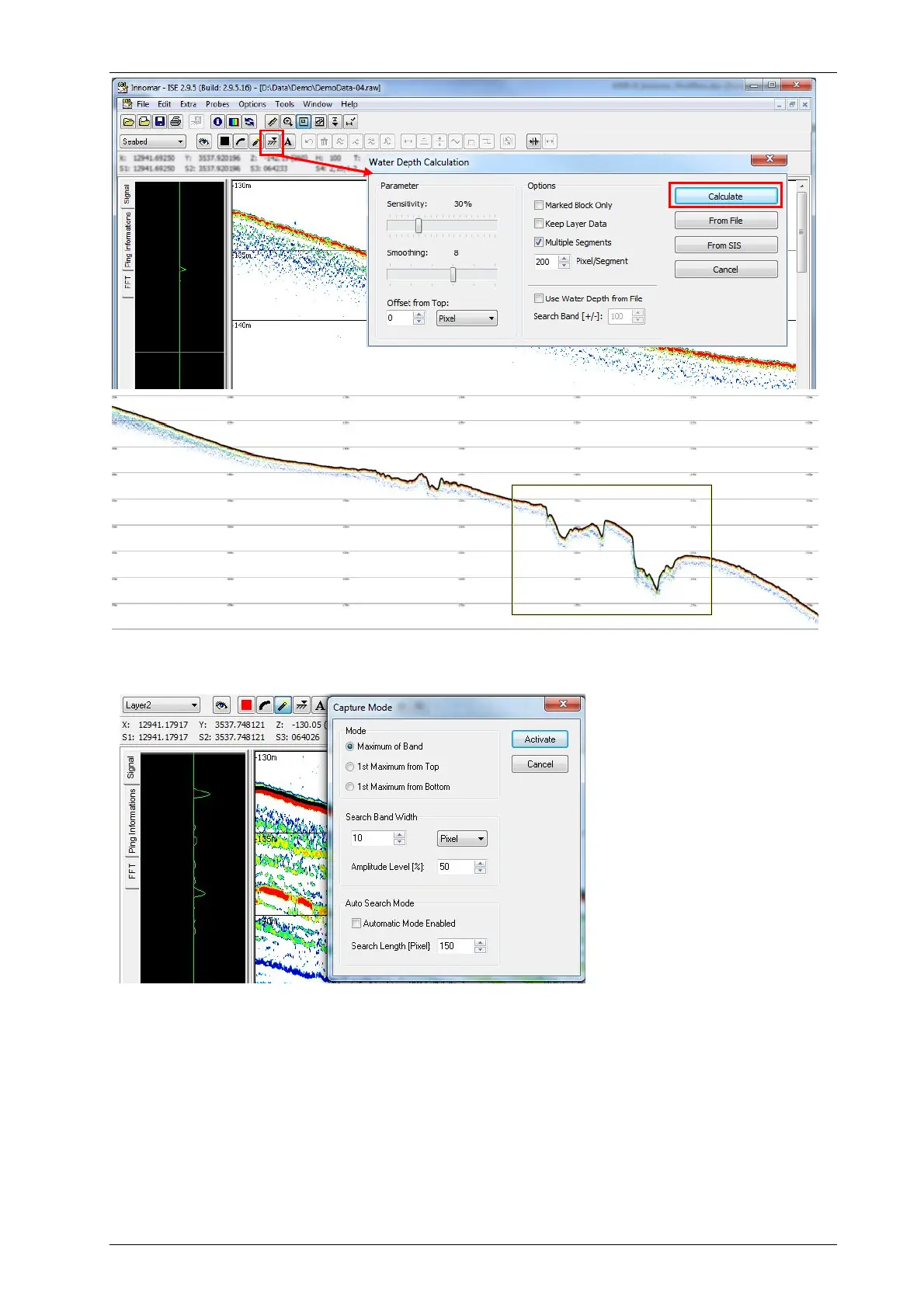

ISE automatic bottom track applied on the HF (100 kHz) channel. ISE operation (top) and result (black line marking
the seabed) on the entire echo print as seen in the ISE overview box (bottom).
ISE layer capture tool.
The digitised layer interfaces can be exported in combination with interpolated position data to
separated XYZ ASCII files (“File Export Layer Data”), see picture below. Layer data can be
also exported as CODA, Pipe, SVG or AutoCAD DXF files. The calculated echo prints can be
saved in different graphics formats, including GeoTiff.
