182 User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN
182 Innomar Technologie GmbH (2023-01)

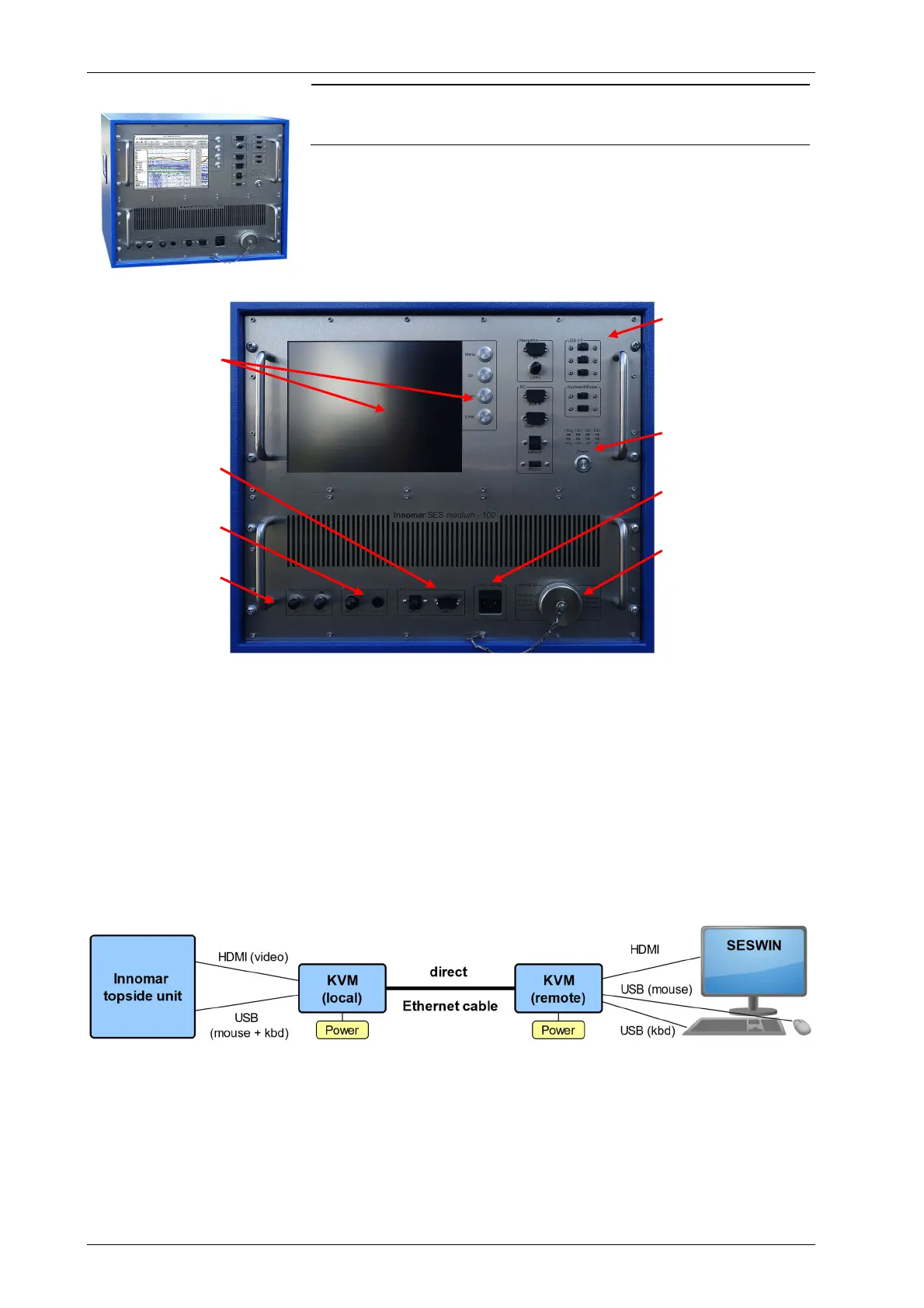

Topside Unit
Dimensions (W×D×H) 52 cm × 40 cm × 44 cm
Housing 19 inch / 9U
Weight c. 44 kg
The control- and data acquisition PC is integrated into the topside
unit. If required, this PC can be remote-controlled.
This topside unit should be preferably installed within an air-
conditioned room. There has to be enough space for connections
and maintenance as well as air venting around the unit.
TFT display +
control buttons
Motion IN
LF out (BNC),
ground wire
Trigger IN / OUT
PC interfaces
(RS232 COM ports,
USB, HDMI monitor,
RJ45 Ethernet)
Power ON/ OFF +
power indicators
Power connector
Transducer
connector
The topside unit has to be installed on a dry and safe place and should be fixed to avoid
mechanical destructions during rough sea.
!
Protect the unit and the installation place against water!
Make sure that the air-intake openings at the front panel and bottom are open and not
blocked. Fans are installed in the rear panels.
Keyboard, mouse and monitor are usually connected to the unit via KVM extender. This consists
of two parts (local and remote), both powered by its own power supply. Keyboard and mouse
connections are USB; monitor connection is HDMI. Maximum Ethernet cable length is 50 m.
Make sure a direct cable connection; the Ethernet cable must not be connected to a network.
