S/N starts with “E”
Dimensions (L×W×H) 49 cm × 49 cm × 11 cm
Weight in air c. 60 kg (incl. 30 m cable)
Cable / Connector Diameter c. 22 mm / c. 54 mm
The transducer cable is moulded non-removable to the transducer.
The standard cable length is 30 meters.
The fairings (black parts) can be removed for hull-mounting; ask
INNOMAR for instructions. There is also a hull-mount frame with shock
absorbers, see next page.

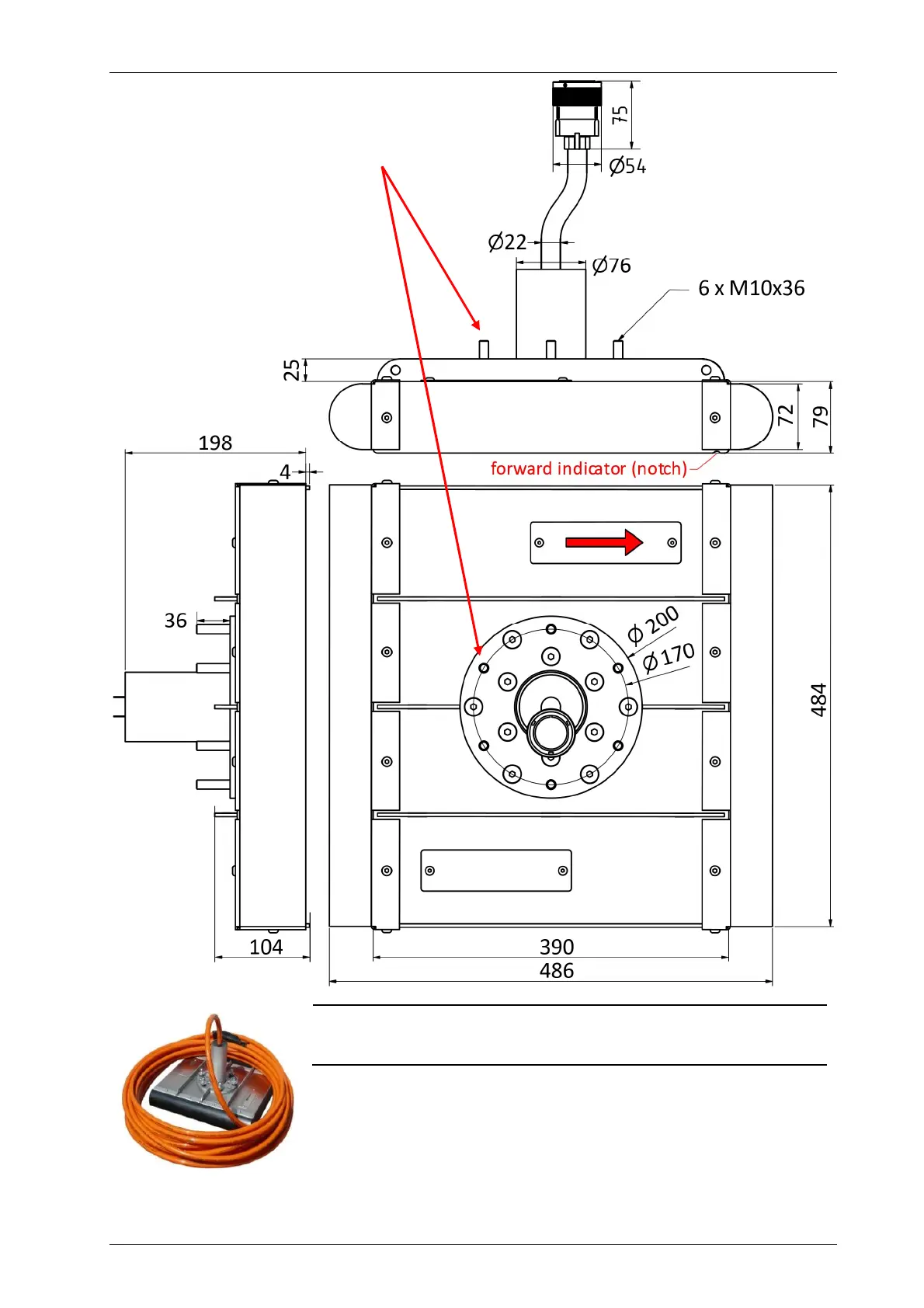

Pole-Mount Transducer
Transducer mounting via six
threaded studs (M10 x 36 mm)
arranged on a 170 mm circle.
Make sure the correct orientation
(arrow pointing forward) for beam-
steering. There is also a small
notch at the bottom skids, indi-
cating the transducer’s front.
