188 User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN
188 Innomar Technologie GmbH (2023-01)

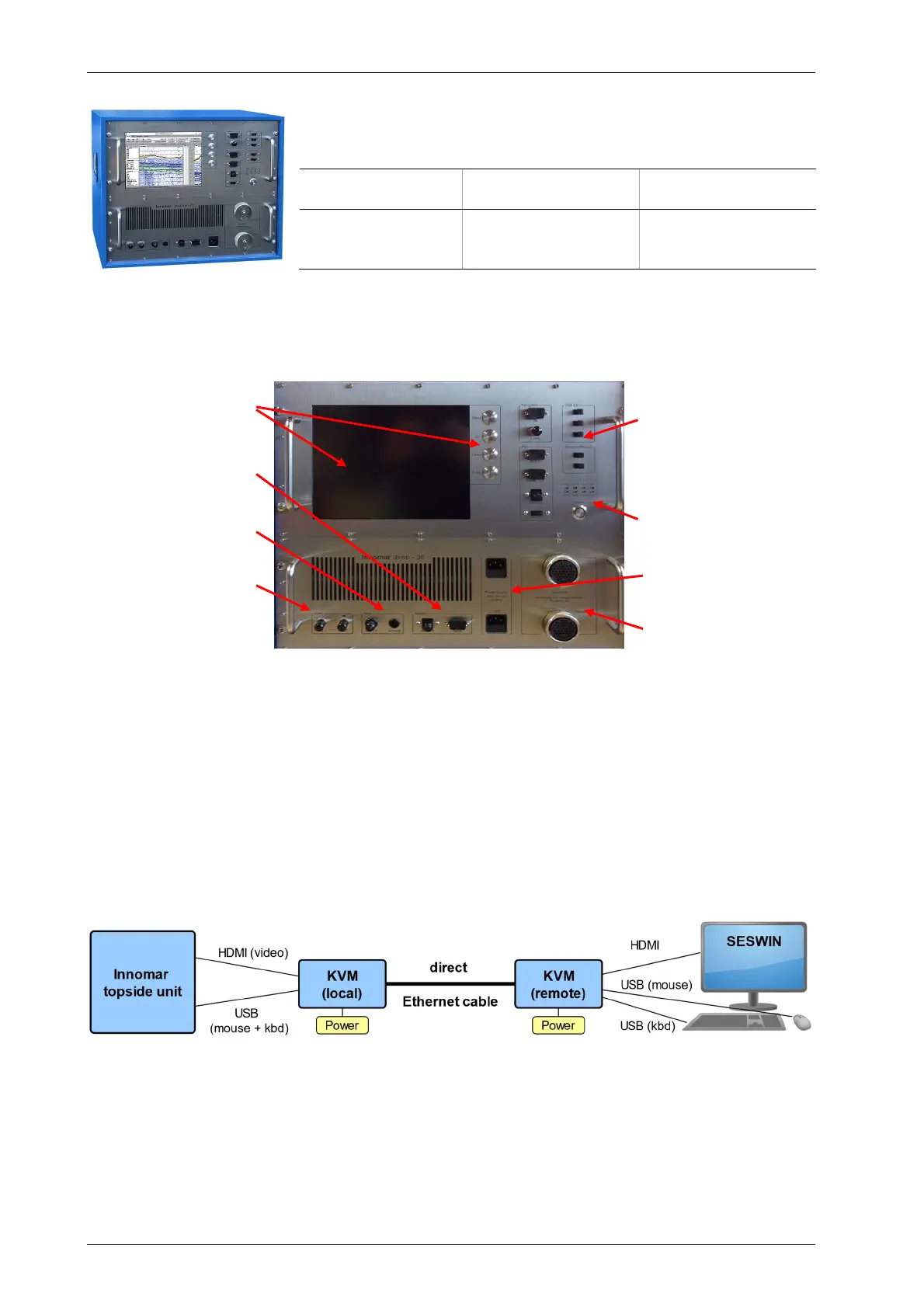

Topside Unit
(picture shows “Basic” version)
There is one (1) topside unit, which contains all transceiver elec-
tronics, data acquisition and the Windows based control PC.
Dimensions and weight depend on the model version:
“Basic” version
(Heave + Roll)
“RP” version
(Heave + Roll + Pitch)
Dimensions (L×W×H) 52 cm × 40 cm × 50 cm 52 cm × 50 cm × 63 cm
Housing 19 inch / 9 U 19 inch / 13 U
Weight c. 52 kg c. 64 kg
The topside unit is preferably installed using shock absorbers
(provided by Innomar) in an air-conditioned room. There has to be
enough space for connections and maintenance as well as air venting
around the unit.
TFT display + control
buttons
Motion IN
LF out (BNC),
ground wire
Trigger IN / OUT
PC interfaces
(RS232 COM ports,
USB, HDMI monitor,
RJ45 Ethernet)
Power ON/ OFF +
power indicators
Power connectors
Transducer connectors
The topside unit has to be installed on a dry and safe place and should be fixed to avoid
mechanical destructions during rough sea.
!
Protect the unit and the installation place against water!
Make sure that the cooling slots are open and the fans can get air! There are openings for
air-intake at the front panels of the topside units. Fans are installed in the rear panels.
Keyboard, mouse and monitor are usually connected to the unit via KVM extender. This consists
of two parts (local and remote), both powered by its own power supply. Keyboard and mouse
connections are USB; monitor connection is HDMI. Maximum Ethernet cable length is 50 m.
Make sure a direct cable connection; the Ethernet cable must not be connected to a network.
