Transducer
Dimensions (L×W×H) 69 cm × 75 cm × 22 cm
Weight in air c. 140 kg (excl. cable)
Cable / Connector Diameter c. 22 mm / c. 54 mm
This transducer can be mounted into a sea chest, blister or gondola
using 18 bolts M12. It can also be used in a moon-pool or drop-keel.
This transducer incorporates optimized shock absorbers to avoid
structure-borne noise picked up and a zinc anode to prevent corrosion.
Please note that the cable is moulded non-removable to the transducer,
its default length is 30 meters.

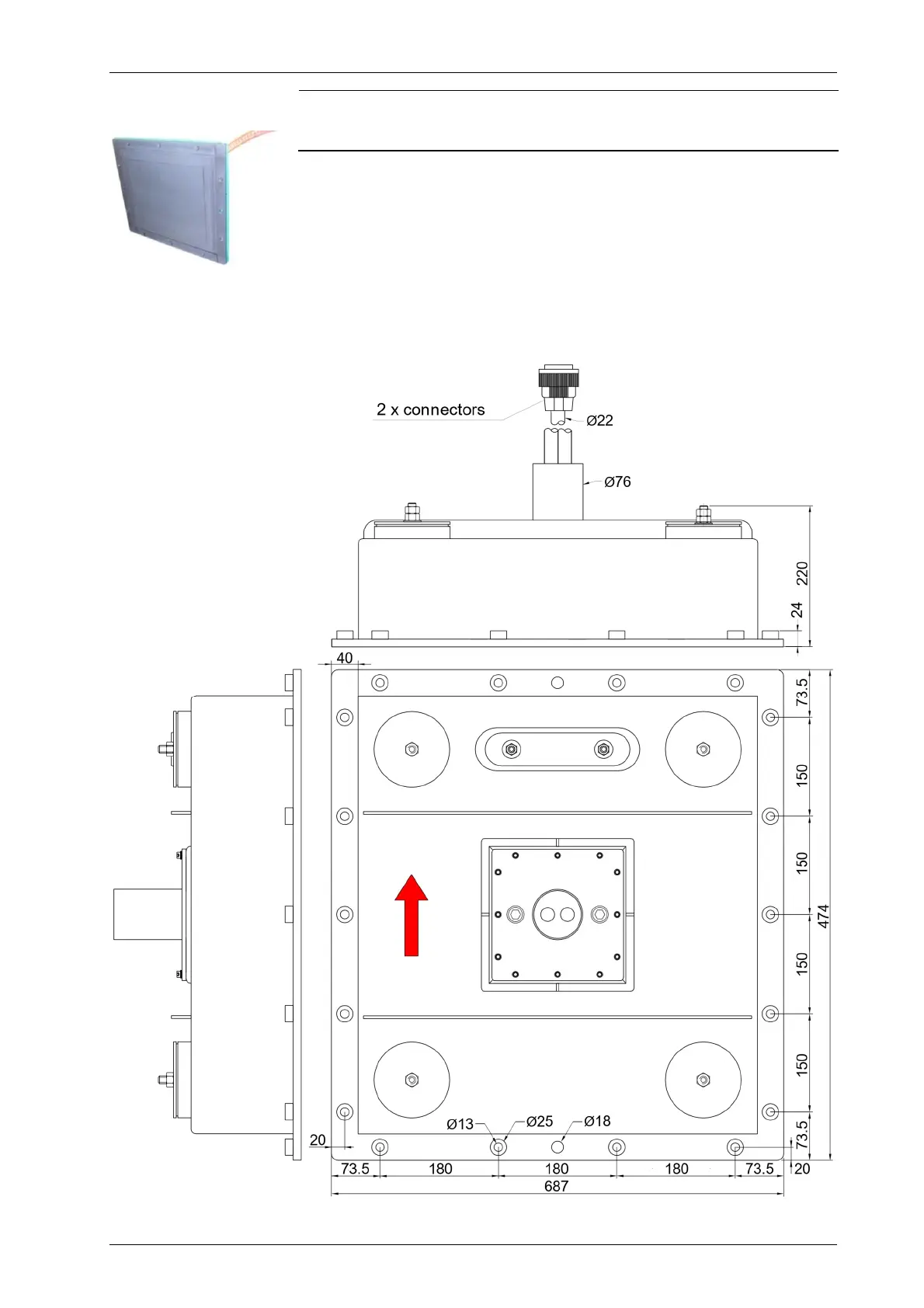

For drilling the mounting threads into the flange at the correct positions,
INNOMAR provides a drilling template.
Make sure the correct orien-
tation (arrow pointing forward)
for beam-steering.
