200 User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN
200 Innomar Technologie GmbH (2023-01)

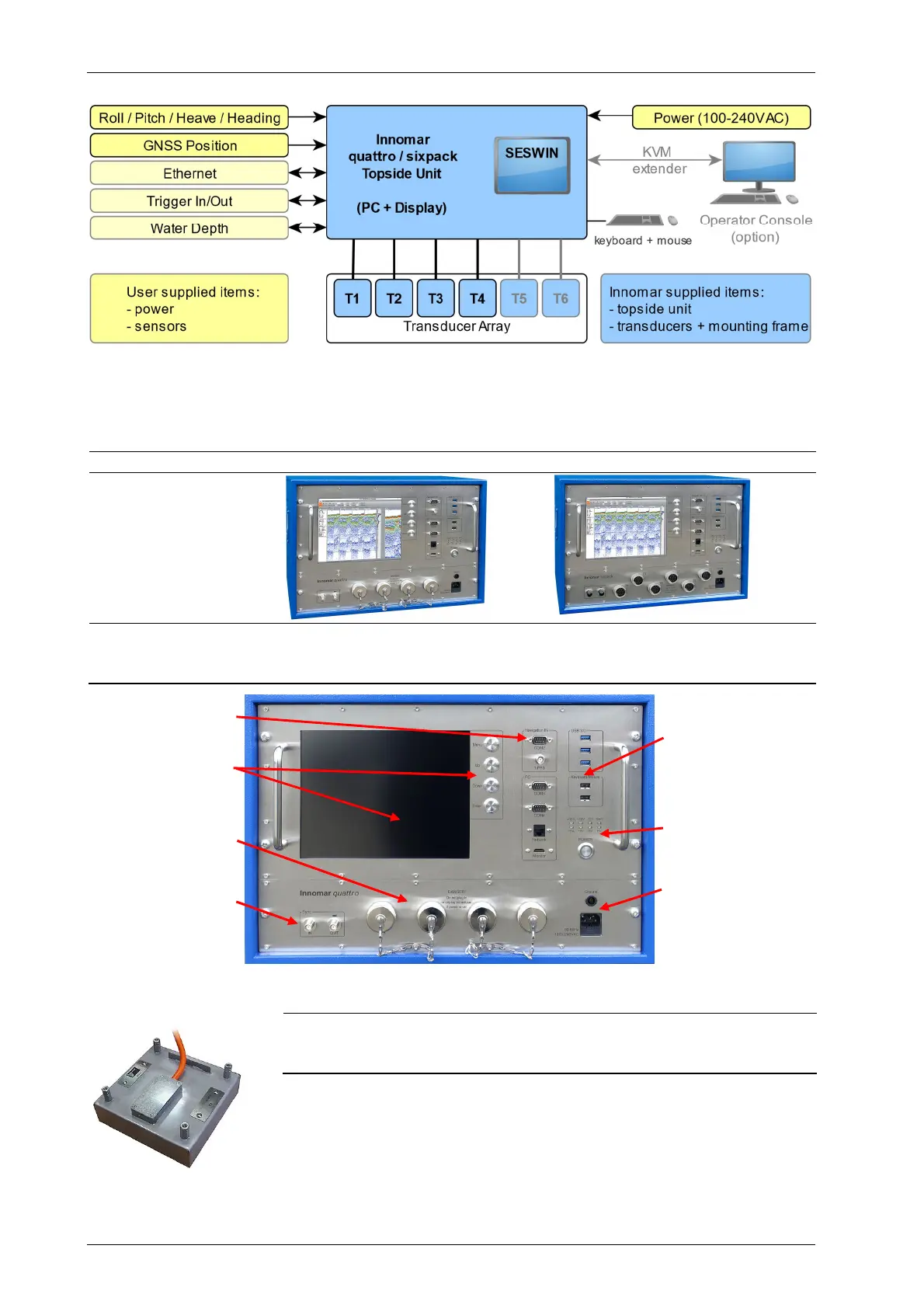

System Components / Wiring Schematic
Topside Unit
There is one (1) topside unit, which contains all transceiver electronics, data acquisition and the
Windows based control PC.
quattro sixpack
Dimensions (L×W×H) 52 cm × 40 cm × 34 cm 52 cm × 40 cm × 34 cm
Housing 19 inch / 7U 19 inch / 7U
Weight sixpack model c. 32 kg c. 34 kg
Motion data IN
TFT display +
control buttons
Transducer
connectors
Trigger IN / OUT
PC interfaces
(RS232 COM ports,
USB, HDMI monitor,
RJ45 Ethernet)
Power ON/ OFF +
power indicators
Power connector
Transducers
Dimensions (L×W×H) 21 cm × 21 cm × 8 cm
Weight (excl. / incl. 15m cable) c. 5 kg / c. 8 kg
Connector / Cable Diameter 37 mm / 12 mm
The transducer cables are moulded non-removable to the transducers,
the standard cable length is 15 meters.
There are two different transducer mounting frames provided by
INNOMAR, one to build a line array (for HBM, QBM, TBM, …) and one to
build a compact square array for SBM.
