User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN 201
Innomar Technologie GmbH (2023-01) 201

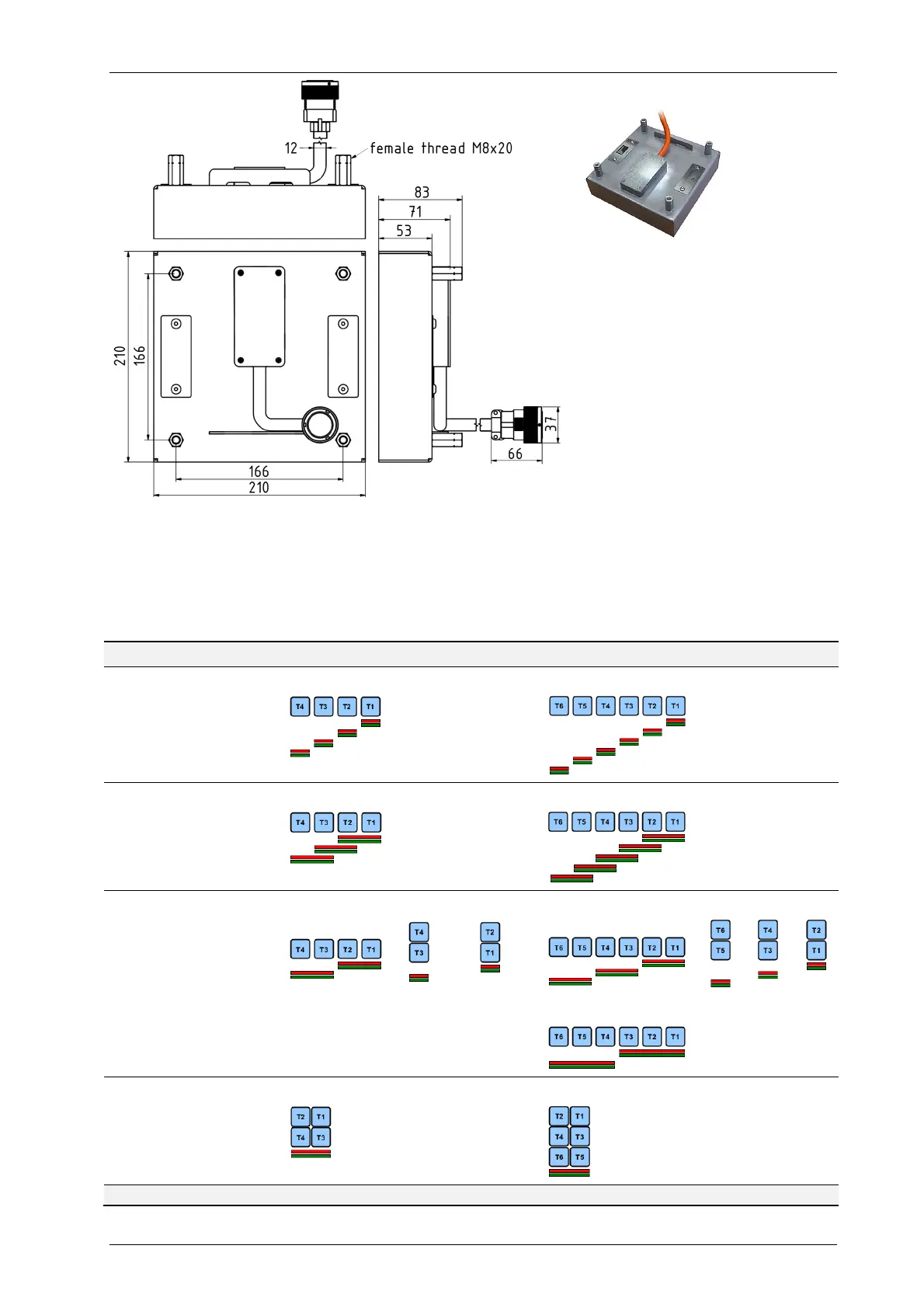

Transducer mounting via 4 bolts
M8. There is no required forward
direction.
The transducers can be arranged in different configurations and can operate either subsequently
for high across-track data density (quad beam mode, hex beam mode) or simultaneously (single
beam mode) for more power if increased sediment penetration or increased range is required.
There are also several combined modes available which provide both, higher data density and
higher power.
quattro sixpack
single
(variable transducer
separation)
4 × 1: Quad Beam Mode (QBM) 6 × 1: Hex Beam Mode (HBM)
combined
(transducers arranged
close together)
3 × 2: Triple Beam Mode (TBM) 5 × 2: Penta Beam Mode (PBM)
grouped
(variable group
separation)
2 × 2: Dual Beam Mode (DBM)
or
2 × 3: Triple Beam Mode (TBM)
or
3 × 2: Dual Beam Mode (DBM)
all as matrix
(transducers arranged
close together)
1 × 4: Single Beam Mode (SBM) 1 × 6: Single Beam Mode (SBM)
red: transducers transmitting; green: transducers receiving
