IFS NS3502-8P-2S User Manual
Mirror Port Configuration

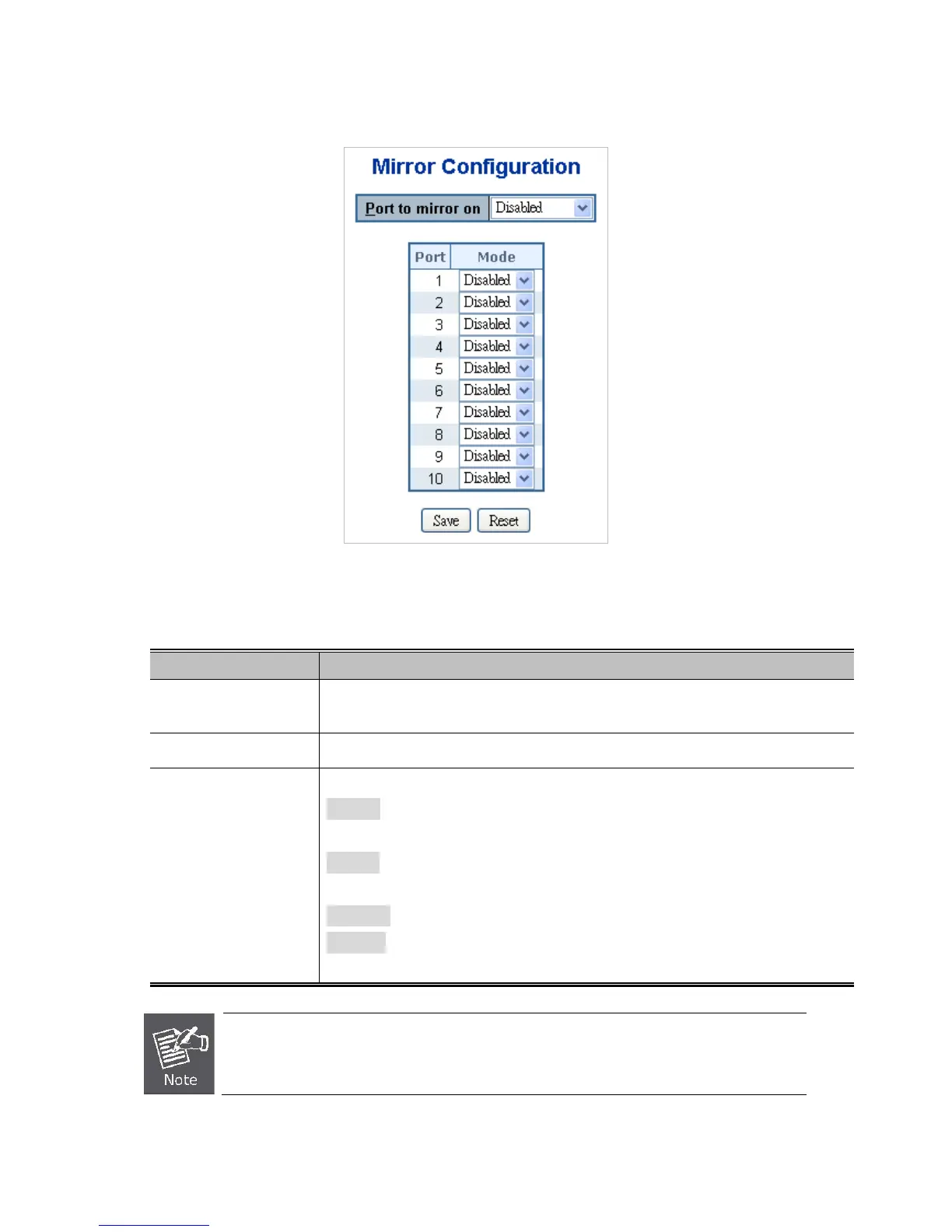

The Port Mirror screen in Figure 4-4-7 appears.
Figure 4-4-7: Mirror Configuration page screenshot
The page includes the following fields:
Object Description
• Port to mirror on
Frames from ports that have either source (rx) or destination (tx)
mirroring enabled are mirrored to this port. Disabled disables mirroring.
• Port
The logical port for the settings contained in the same row.
• Mode
Select mirror mode.
Rx only: Frames received at this port are mirrored to the mirroring port.
Frames transmitted are not mirrored.
Tx only: Frames transmitted from this port are mirrored to the mirroring
port. Frames received are not mirrored.
Disabled: Neither frames transmitted or frames received are mirrored.
Enabled: Frames received and frames transmitted are mirrored to the
mirror port.
For a given port, a frame is only transmitted once. It is therefore not possible to
mirror Tx frames on the mirror port. Because of this, mode for the selected
mirror port is limited to Disabled or Rx only.
