IFS NS3502-8P-2S User Manual
109
4.5.2 LACP Configuration
Link Aggregation Control Protocol (LACP) - LACP LAG negotiate Aggregated Port links with other LACP
ports located on a different device. LACP allows switches connected to each other to discover
automatically whether any ports are member of the same LAG.
This page allows the user to inspect the current LACP port configurations, and possibly change them as
well. The LACP port settings relate to the currently selected stack unit, as reflected by the page header.
The LACP Configuration screen in Figure 4-5-4 appears.

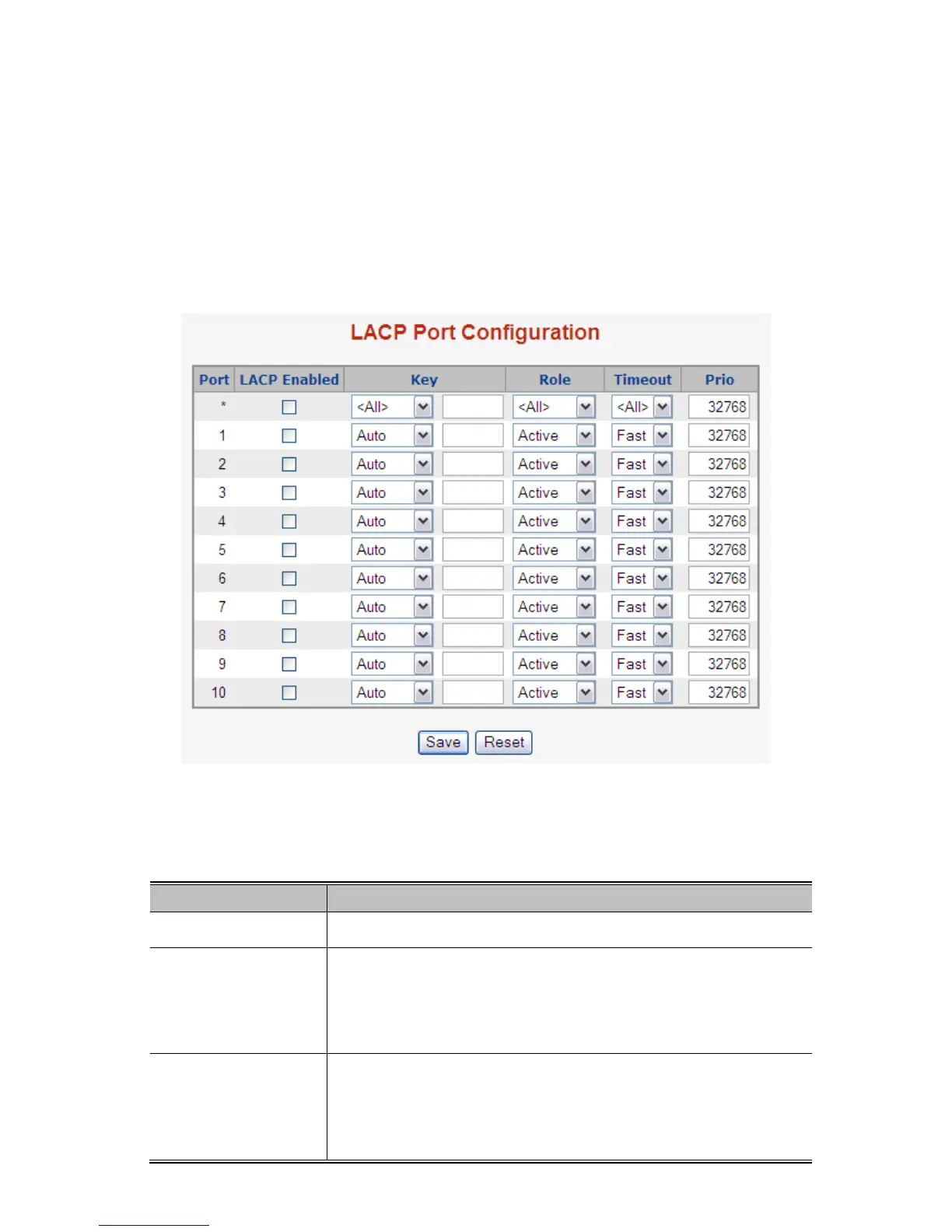

Figure 4-5-4 : LACP Port Configuration page screenshot
The page includes the following fields:
Object Description
• Port
The switch port number.
• LACP Enabled
Controls whether LACP is enabled on this switch port. LACP will
form an aggregation when 2 or more ports are connected to the
same partner. LACP can form max 12 LLAGs per switch and 2
GLAGs per stack.
• Key
The Key value incurred by the port, range 1-65535. The Auto
setting will set the key as appropriate by the physical link speed,
10Mb = 1, 100Mb = 2, 1Gb = 3. Using the Specific setting, a
user-defined value can be entered. Ports with the same Key value
