can participate in the same aggregation group, while ports with
different keys cannot.
The default setting is “Auto”
• Role
The Role shows the LACP activity status. The Active will transmit
LACP packets each second; while Passive will wait for a LACP
packet from a partner (speak if spoken to).
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.5.3 LACP System Status
This page provides a status overview for all LACP instances. The LACP Status page display the current
LACP aggregation Groups and LACP Port status. The LACP System Status screen in Figure 4-5-5 appears.

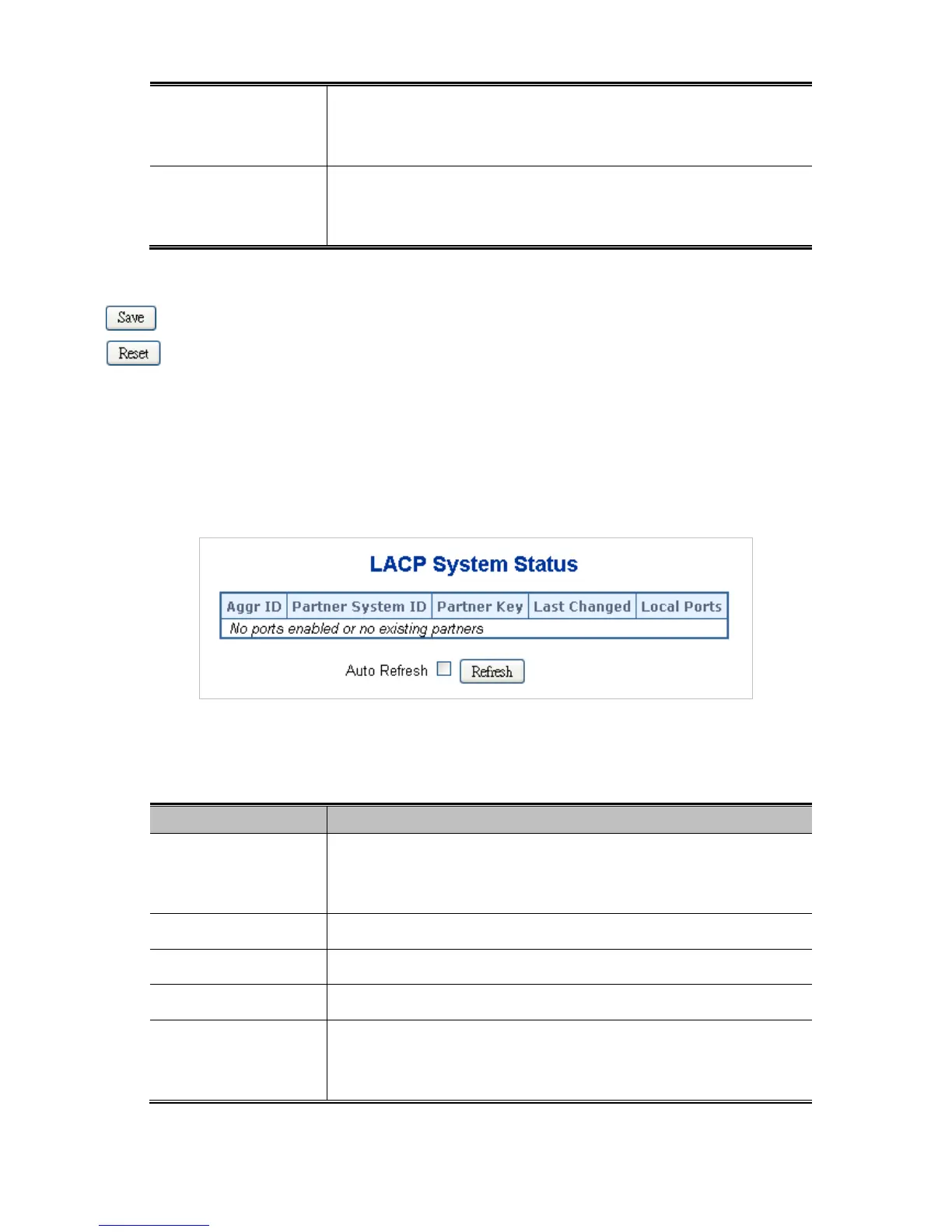

Figure 4-5-5: LACP System Status page screenshot
The page includes the following fields:
Object Description
• Aggr ID
The Aggregation ID associated with this aggregation instance.
For LLAG the id is shown as 'isid:aggr-id' and for GLAGs as
'aggr-id'
• Partner System ID
The system ID (MAC address) of the aggregation partner.
• Partner Key
The Key that the partner has assigned to this aggregation ID.
• Last changed
The time since this aggregation changed.
• Local Ports
Shows which ports are a part of this aggregation for this
switch/stack.
The format is: "Switch ID:Port".
Buttons
