4.4 Port Management
Use the Port Menu to display or configure the Managed Switch's ports. This section has the following
items:
 Port Configuration Configures port connection settings
 Port Statistics
Overview
Lists Ethernet and RMON port statistics
 Port Thermal
Protection Status
Display thermal protection status
 Port Statistics Detail Lists Ethernet and RMON port statistics
 SFP Module
Information
Display SFP information
 Port Mirror
Sets the source and target ports for
mirroring
4.4.1 Port Configuration
This page displays current port configurations. Ports can also be configured here. The Port
Configuration screen in Figure 4-4-1 appears.

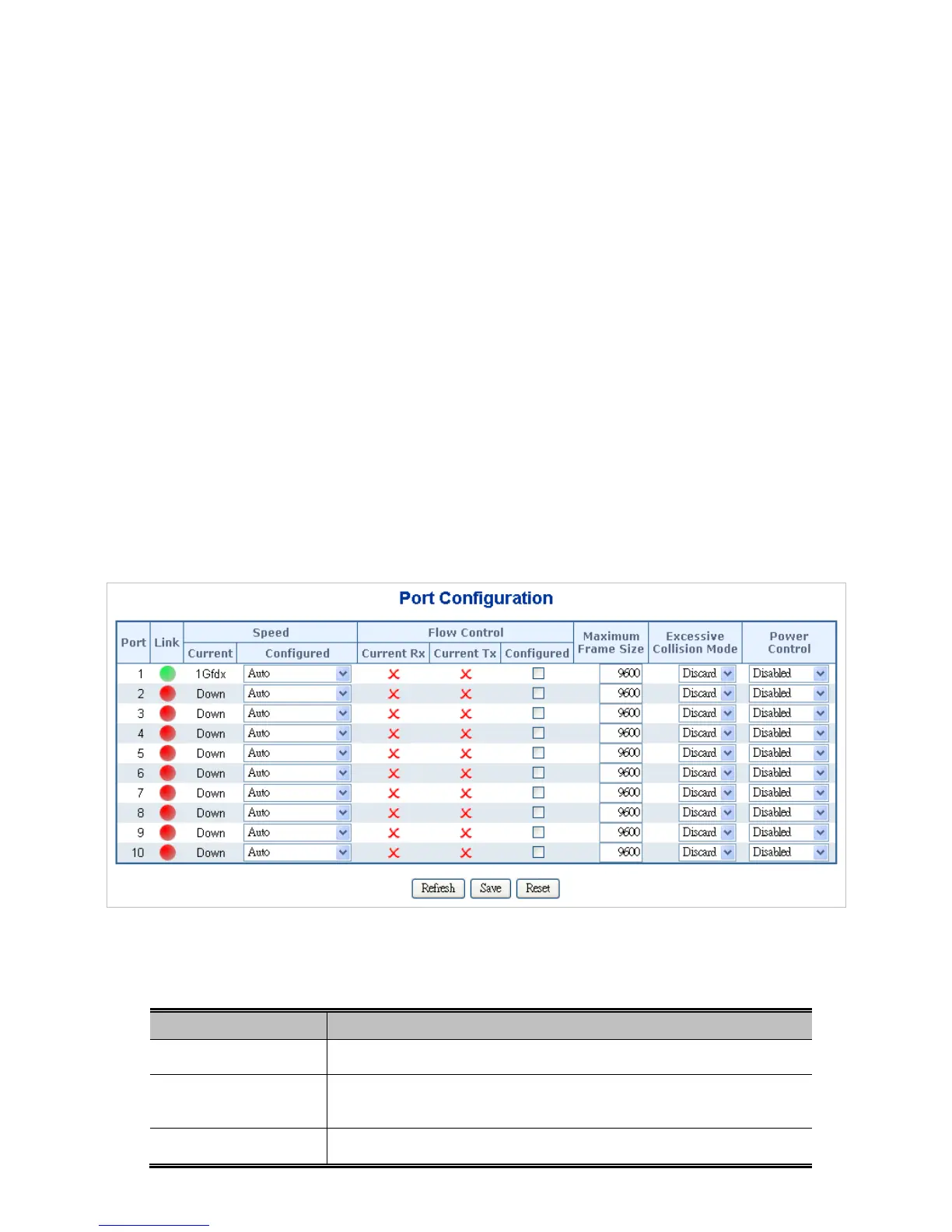

Figure 4-4-1: Port Configuration page screenshot
The page includes the following fields:
Object Description
• Port
This is the logical port number for this row.
• Link
The current link state is displayed graphically. Green indicates the
link is up and red that it is down.
• Current Link Speed
Provides the current link speed of the port.
