The EEE Power Reduction screen in Figure 4-2-19 appears.

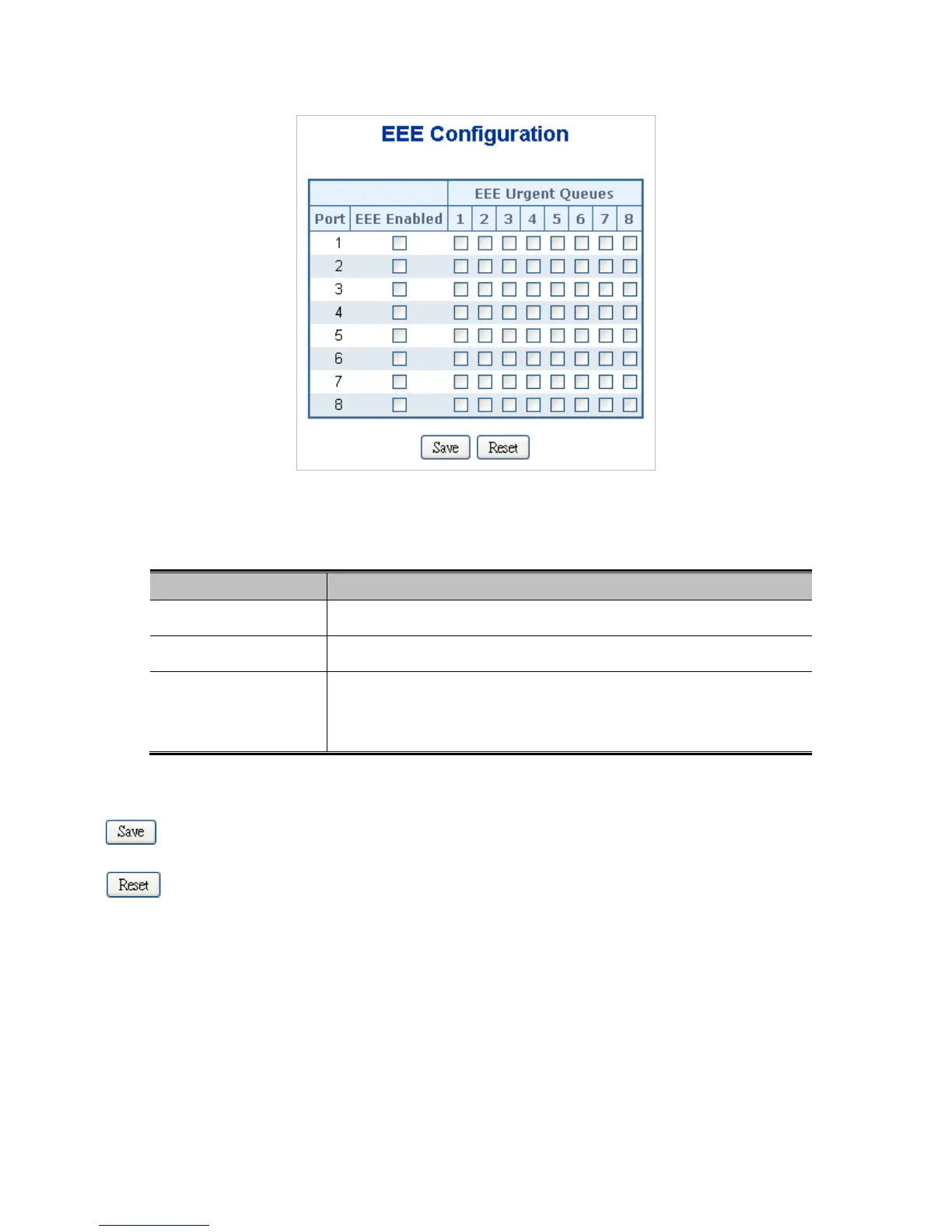

Figure 4-2-19: EEE Configuration page screenshot
The page includes the following fields:
Object Description
• Port
The switch port number of the logical EEE port.
• EEE Enable
Controls whether EEE is enabled for this switch port.
• EEE Urgent Queues
Queues set will activate transmission of frames as soon as any
data is available. Otherwise the queue will postpone the
transmission until 3000 bytes are ready to be transmitted.
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.2.17 Thermal Protection
This page allows the user to inspect and configure the current setting for controlling thermal
protection. Thermal protection is used to protect the chip from getting overheated.
When the temperature exceeds the configured thermal protection temperature, ports will be turned
off in order to decrease the power consumption. It is possible to arrange the ports with different
priorities. Each priority can be given a temperature at which the corresponding ports shall be turned
off. The Thermal Protection screen in Figure 4-2-20 appears.
