4.11.4 Network Access Overview
This page provides an overview of the current NAS port states for the selected switch. The
Network Access Overview screen in Figure 4-11-5 appears.

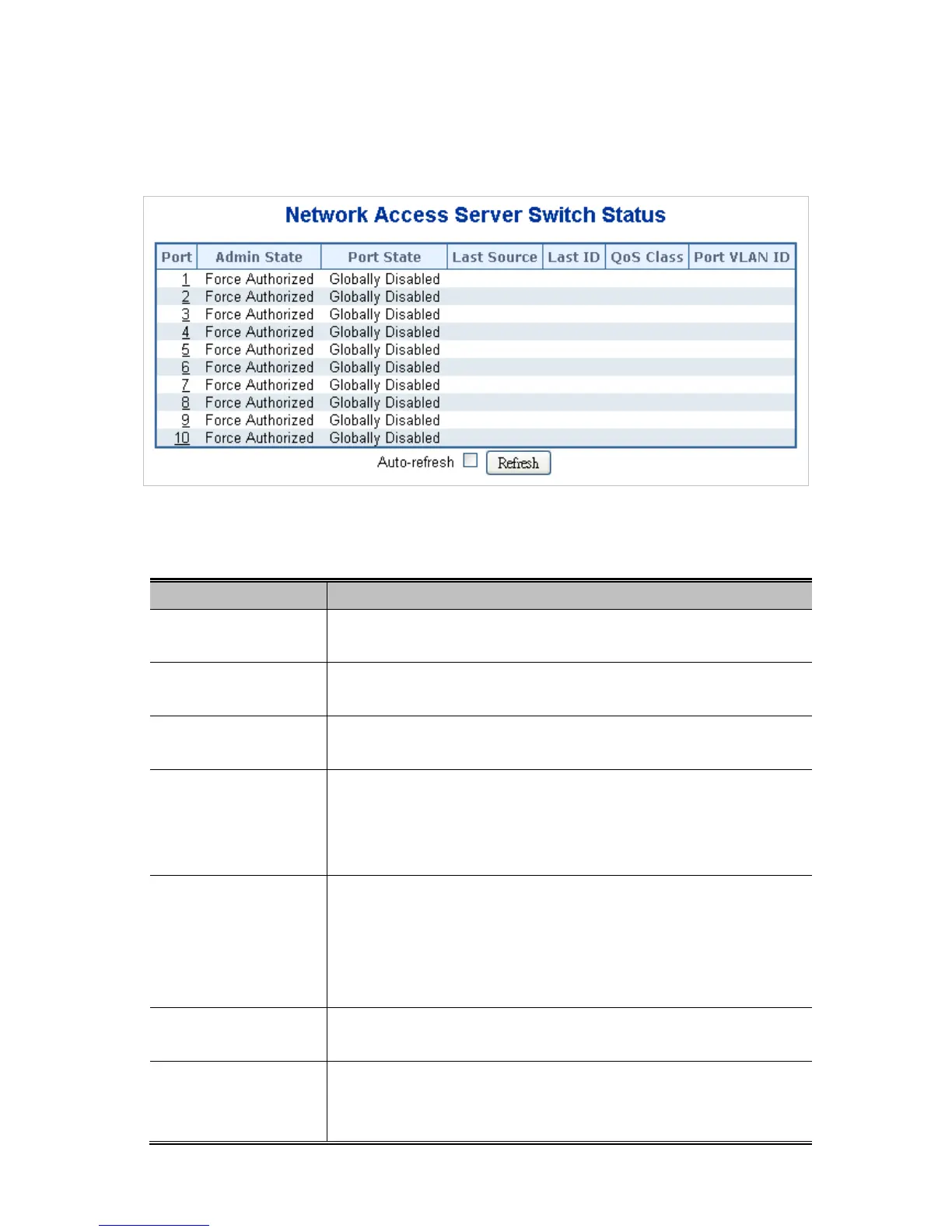

Figure 4-11-5: Network Access Server Switch Status page screenshot
The page includes the following fields:
Object Description
• Port
The switch port number. Click to navigate to detailed NAS
statistics for this port.
• Admin State
The port's current administrative state. Refer to NAS Admin
State for a description of possible values.
• Port State
The current state of the port. Refer to NAS Port State for a
description of the individual states.
• Last Source
The source MAC address carried in the most recently
received EAPOL frame for EAPOL-based authentication, and
the most recently received frame from a new client for
MAC-based authentication.
• Last ID
The user name (supplicant identity) carried in the most
recently received Response Identity EAPOL frame for
EAPOL-based authentication, and the source MAC address
from the most recently received frame from a new client for
MAC-based authentication.
• QoS Class
QoS Class assigned to the port by the RADIUS server if
enabled.
• Port VLAN ID
The VLAN ID t
hat NAS has put the port in. The field is blank,
if the Port VLAN ID is not overridden by NAS.
If the VLAN ID is assigned by the RADIUS server,
