Port-1, Port-2 and Port-3 : PVID=2
Port-4, Port-5 and Port-6 : PVID=3
Port-7~Port-24: PVID=1
5. Enable VLAN Tag for specific ports
Link Type: Port-3 (VLAN-2) and Port-6 (VLAN-3)
The Per Port VLAN configuration in Figure 4-6-10 appears.

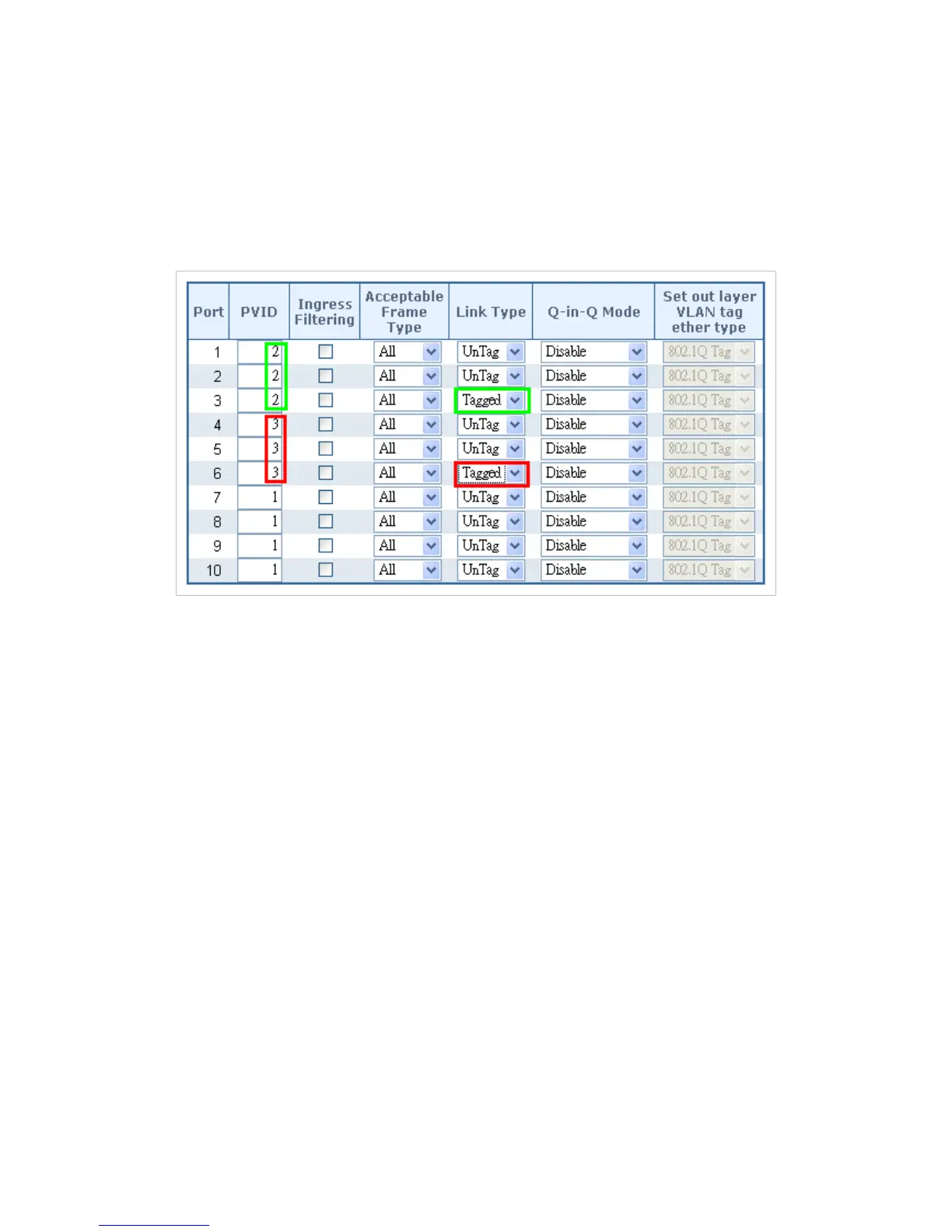

Figure 4-6-10: Port 1-Port 6 VLAN Configurations
4.6.10.2 VLAN Trunking between two 802.1Q aware switch
In VLAN Trunking below, it uses the “Uplink” to connect to other switches. VLANs are separated at
different switches, but they need to access with other switches within the same VLAN group. The
screen in Figure 4-6-11 appears.
