• Port Members
Checkmarks indicate which ports are members of the entry.
Check or uncheck as needed to modify the entry.
Buttons
: Click to add a new entry.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.13.2 MAC Address Table Status
Dynamic MAC Table
Entries in the MAC Table are shown on this page. The MAC Table contains up to 8192 entries, and is
sorted first by VLAN ID, then by MAC address. The MAC Address Table screen in Figure 4-13-2 appears.

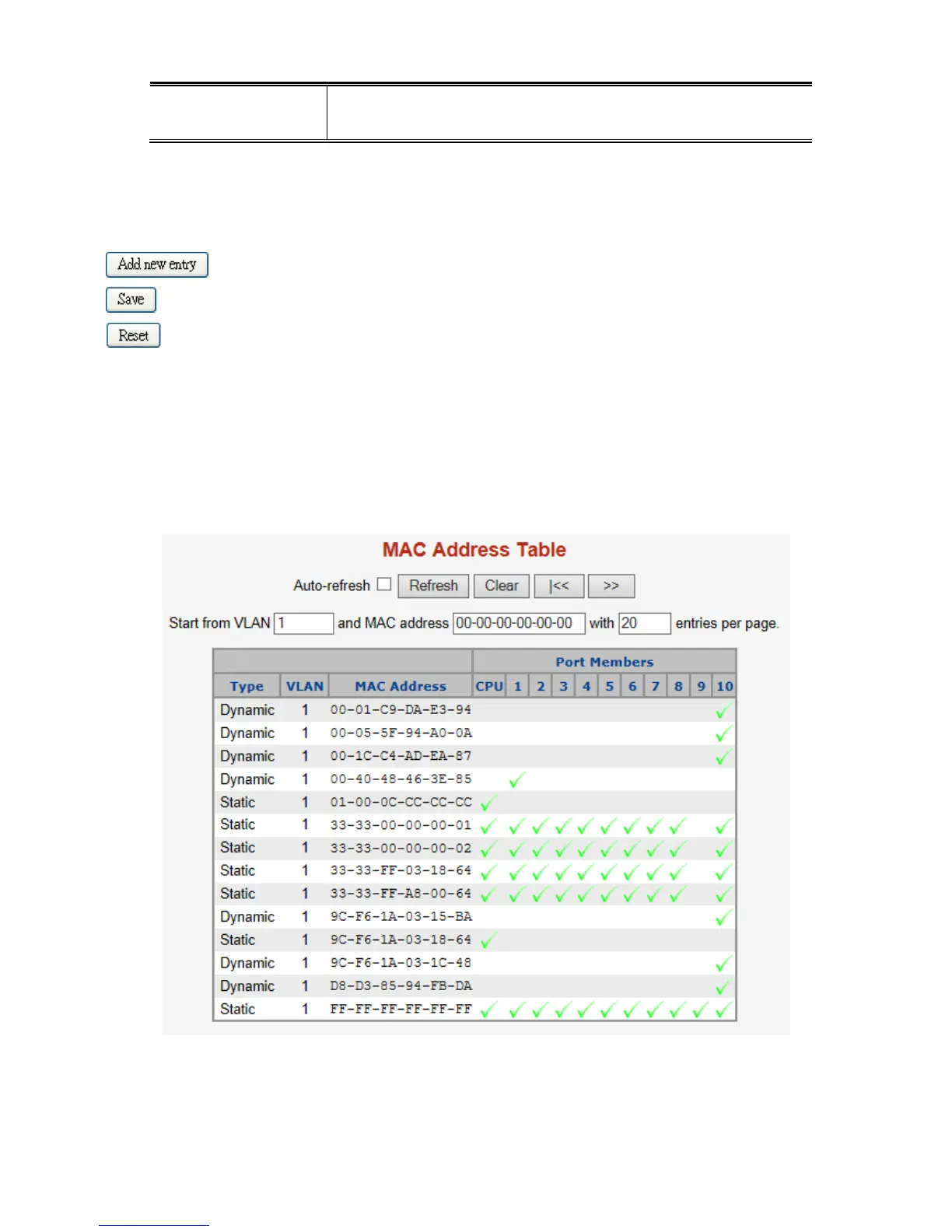

Figure 4-13-2: MAC Address Table Status
Navigating the MAC Table
Each page shows up to 999 entries from the MAC table, default being 20, selected through the
"entries per page" input field. When first visited, the web page will show the first 20 entries from
