: Click to refresh the page immediately.
: Clears the counters for the selected server. The "Pending Requests" counter will not be
cleared by this operation.
4.11.9 Windows Platform RADIUS Server Configuration
Setup the RADIUS server and assign the client IP address to the Managed switch. In this case, field in
the default IP Address of the Managed Switch with 192.168.0.100. And also make sure the shared
secret key is as same as the one you had set at the Managed Switch’s 802.1x system configuration –
12345678 at this case.
1. Configure the IP Address of remote RADIUS server and secret key.

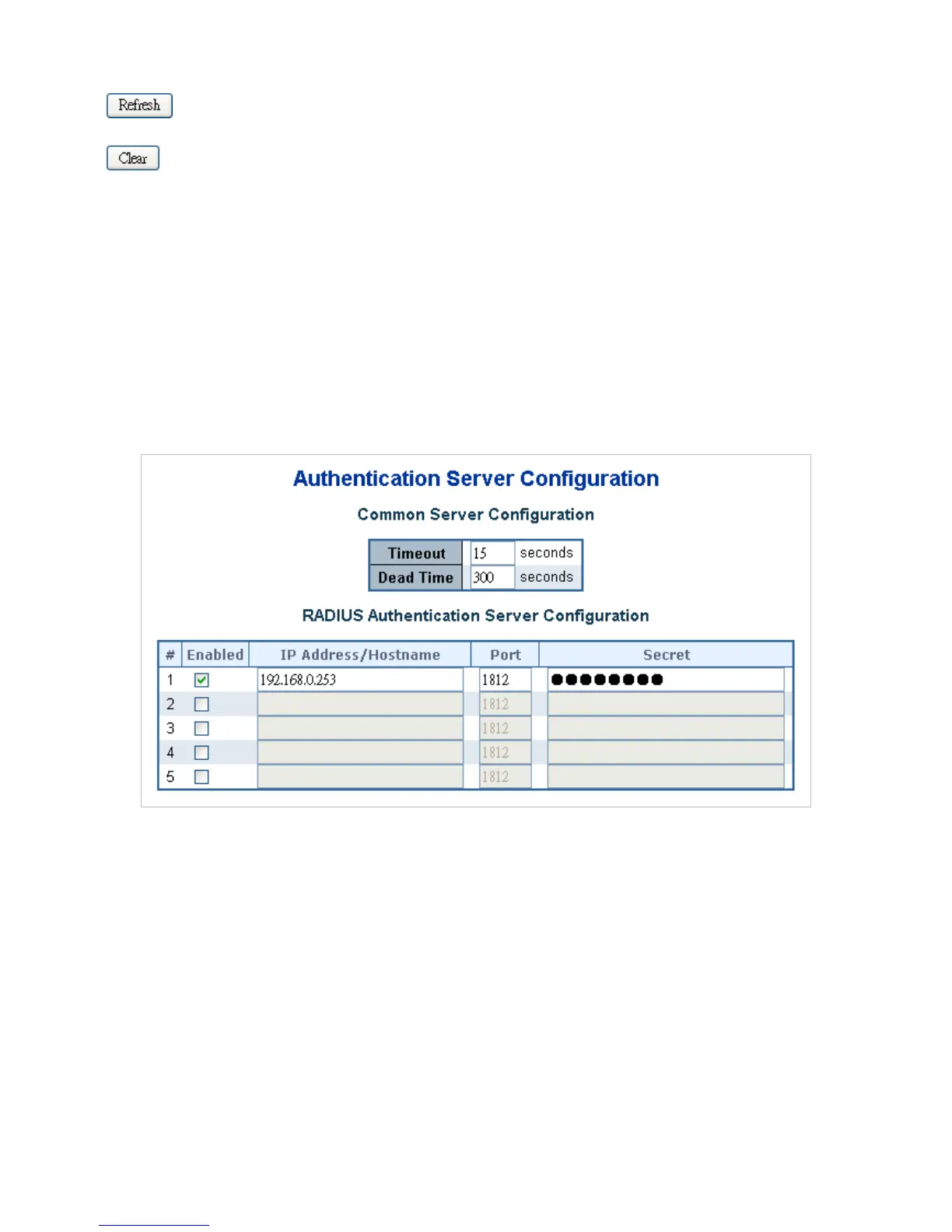

Figure 4-11-10: RADIUS Server Configuration screenshot
2. Add New RADIUS Client on the Windows 2003 server
