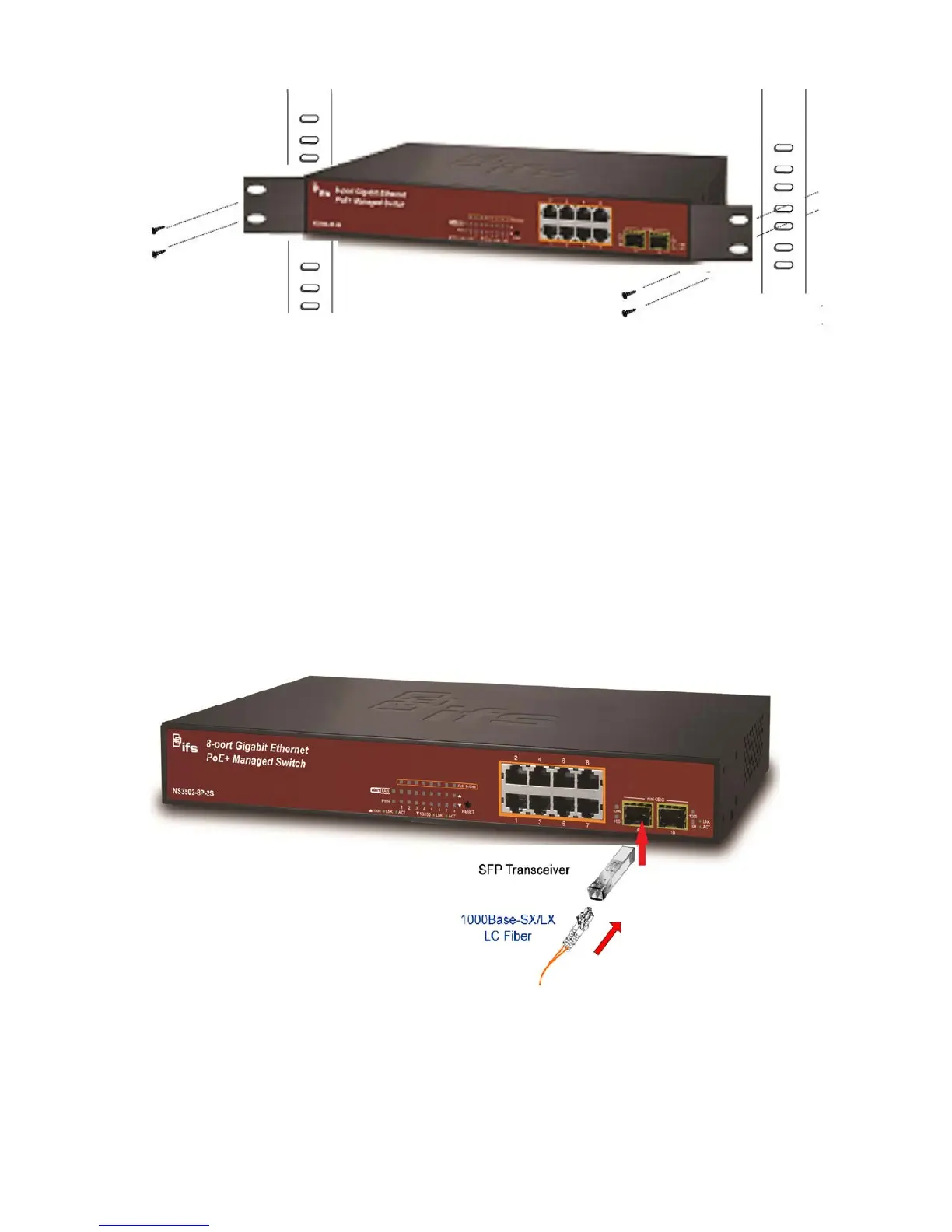

Figure 2-6: Mounting NS3502-8P-2S in a Rack
Step6: Proceeds with the steps 4 and steps 5 of session 2.2.1 Desktop Installation to connect the
network cabling and supply power to the Managed Switch.
2.2.3 Installing the SFP transceiver
The sections describe how to insert an SFP transceiver into an SFP slot.
The SFP transceivers are hot-pluggable and hot-swappable. You can plug-in and out the transceiver
to/from any SFP port without having to power down the Managed Switch. As the Figure 2-7
appears.
Figure 2-7: Plug-in the SFP transceiver
Approved IFS SFP Transceivers
IFS Managed Switch supports both Single mode and Multi-mode SFP transceiver. The following list
of approved IFS SFP transceivers is correct at the time of publication:
