4.5 Link Aggregation
Port Aggregation optimizes port usage by linking a group of ports together to form a single Link
Aggregated Groups (LAGs). Port Aggregation multiplies the bandwidth between the devices, increases
port flexibility, and provides link redundancy.
Each LAG is composed of ports of the same speed, set to full-duplex operations. Ports in a LAG, can be
of different media types (UTP/Fiber, or different fiber types), provided they operate at the same speed.
Aggregated Links can be assigned manually (Port Trunk) or automatically by enabling Link Aggregation
Control Protocol (LACP) on the relevant links.
Aggregated Links are treated by the system as a single logical port. Specifically, the Aggregated Link has
similar port attributes to a non-aggregated port, including auto-negotiation, speed, Duplex setting, etc.
The device supports the following Aggregation links :
Static LAGs (Port Trunk) – Force aggregared selected ports to be a trunk group.
Link Aggregation Control Protocol (LACP) LAGs - LACP LAG negotiate Aggregated Port links
with other LACP ports located on a different device. If the other device ports are also LACP
ports, the devices establish a LAG between them.

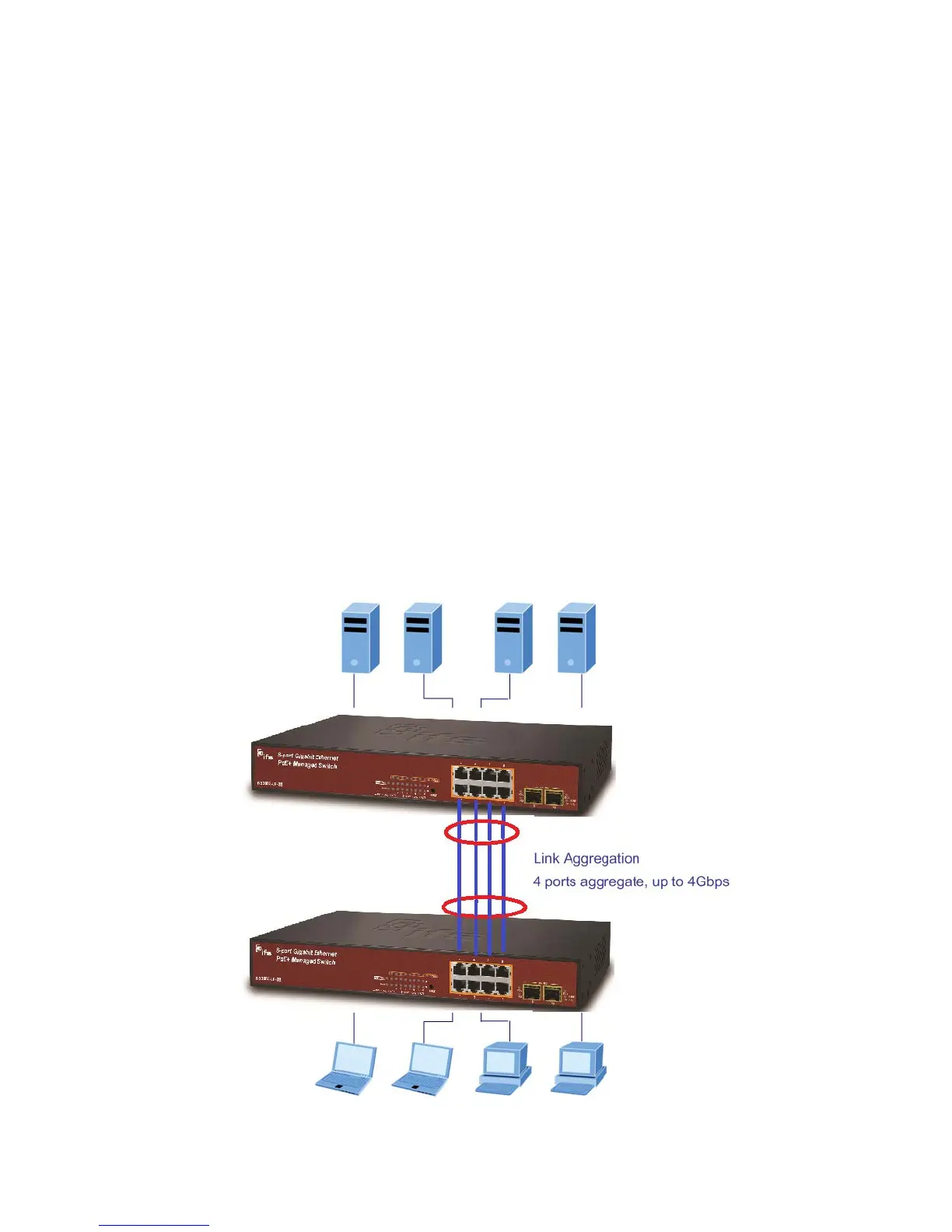

Figure 4-5-1: Link Aggregation
