4.8.6 IGMP Group Information
Entries in the IGMP Group Table are shown on this page. The IGMP Group Table is sorted first by VLAN
ID, and then by group.
Each page shows up to 99 entries from the IGMP Group table, default being 20, selected through the
"entries per page" input field. When first visited, the web page will show the first 20 entries from the
beginning of the IGMP Group Table.
The "Start from VLAN", and "group" input fields allow the user to select the starting point in the IGMP
Group Table.
The IGMP Groups Information screen in Figure 4-8-9 appears.

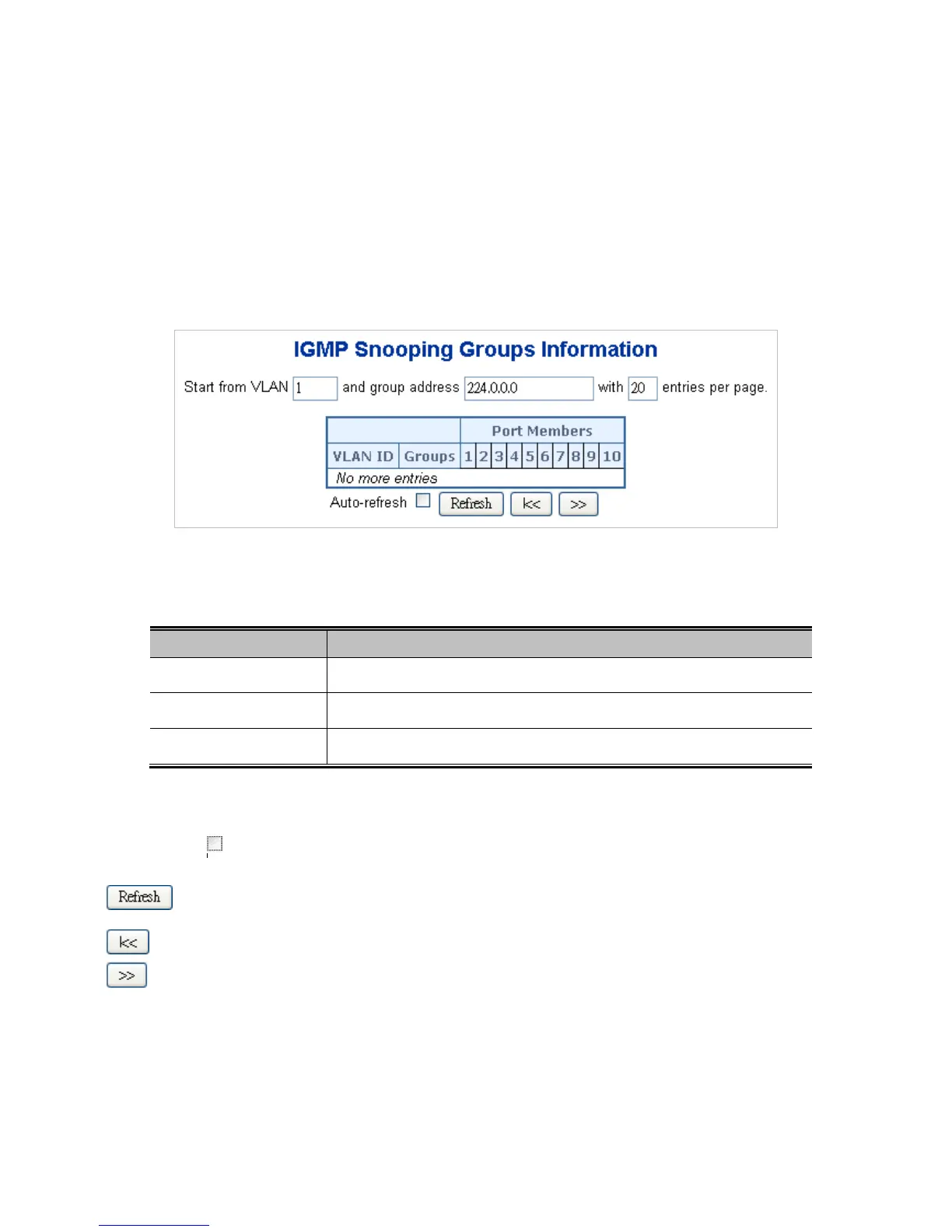

Figure 4-8-9: IGMP Snooping Groups Information page screenshot
The page includes the following fields:
Object Description
• VLAN ID
VLAN ID of the group.
• Groups
Group address of the group displayed.
• Port Members
Ports under this group.
Buttons
Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
: Click to refresh the page immediately.
: Updates the table, starting with the first entry in the IGMP Group Table.
: Updates the table, starting with the entry after the last entry currently displayed.
