4.10.4 ACL Ports Configuration
Configure the ACL parameters (ACE) of each switch port. These parameters will affect frames received
on a port unless the frame matches a specific ACE.
The ACL Ports Configuration screen in Figure 4-10-4 appears.

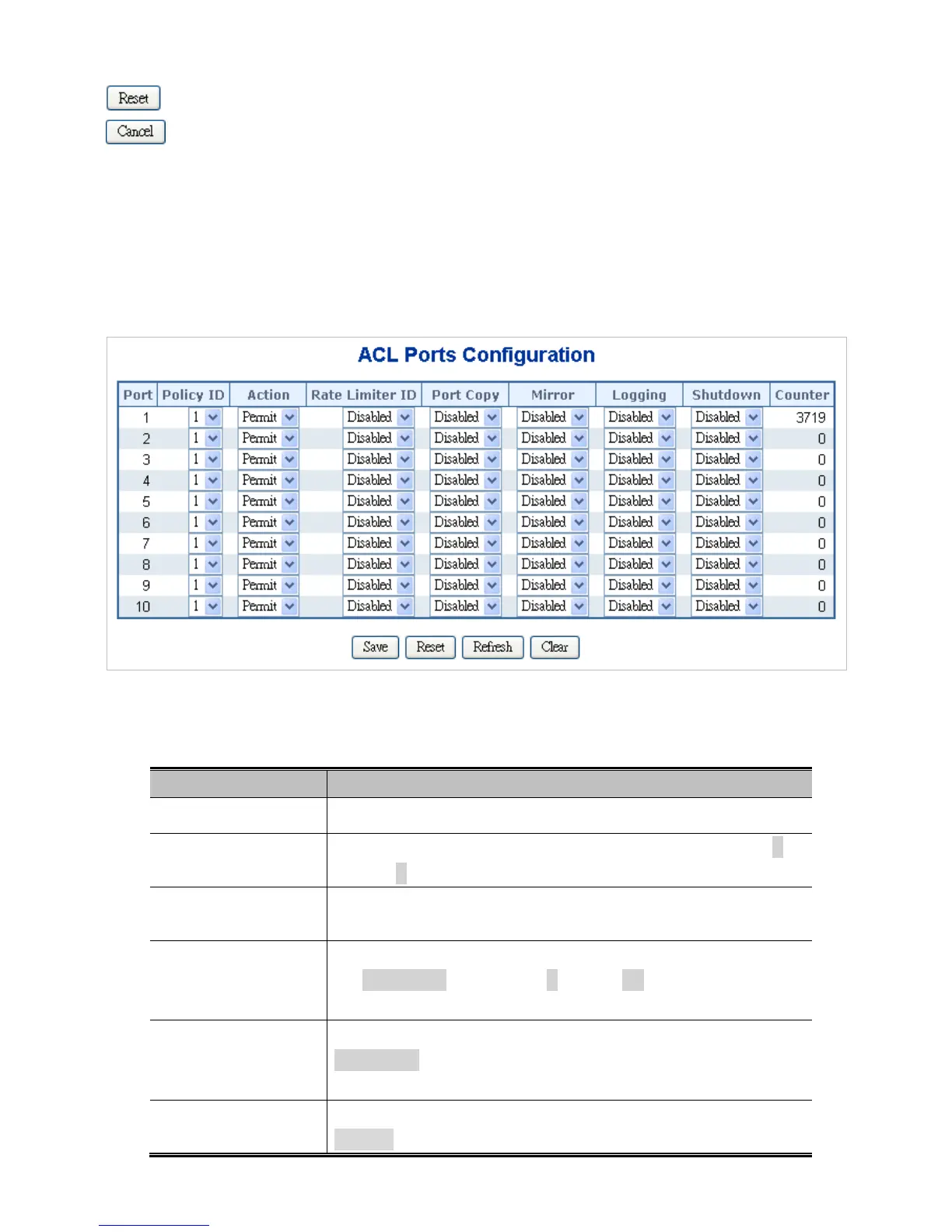

Figure 4-10-4: ACL Ports Configuration page screenshot
The page includes the following fields:
Object Description
• Port
The logical port for the settings contained in the same row.
• Policy ID
Select the policy to apply to this port. The allowed values are
. The default value is 1.
• Action
Select whether forwarding is permitted ("Permit") or denied
("Deny"). The default value is "Permit".
• Rate Limiter ID
Select which rate limiter to apply to this port. The allowed values
are Disabled or the values 1 through 15. The default value is
"Disabled".
• Port Copy
Select which port frames are copied to. The allowed values are
Disabled or a specific port number. The default value is
"Disabled".
• Mirror
Specify the mirror operation of this port. The allowed values are:
Enabled: Frames received on the port are mirrored.
