4.5.1 Static Aggregation
This page is used to configure the Aggregation hash mode and the aggregation group. The aggregation
hash mode settings are global, whereas the aggregation group relate to the currently selected stack
unit, as reflected by the page header.
Hash Code Contributors
The Static Aggregation screen in Figure 4-5-2 appears.

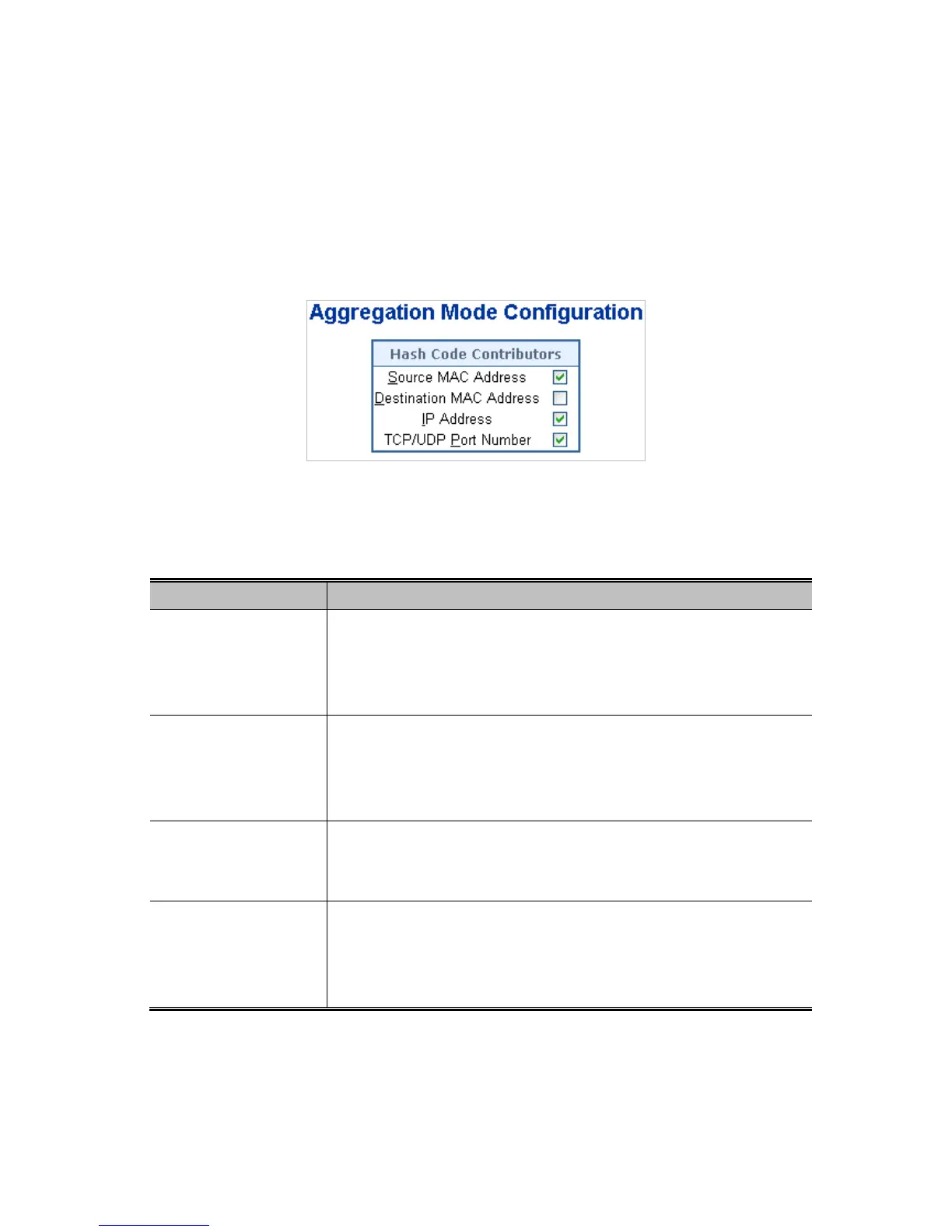

Figure 4-5-2 : Aggregation Mode Configuration page screenshot
The page includes the following fields:
Object Description
• Source MAC
Address
The Source MAC address can be used to calculate the destination
port for the frame. Check to enable the use of the Source MAC
address,
enabled.
• Destination MAC
Address
The Destination MAC Address can be used to calculate the
destination port for the frame. Check to enable the use of the
Destination MAC Address, or uncheck to disable. By default,
Destination MAC Address is disabled.
• IP Address
The IP address can be used to calculate the destination port for
the frame. Check to enable the use of the IP Address, or uncheck
to disable. By default, IP Address is enabled.
• TCP/UDP Port
Number
The TCP/UDP port number can be used to calculate the
destination port for the frame. Check to enable the use of the
TCP/UDP Port Number, or uncheck to disable. By default,
TCP/UDP Port Number is enabled.
Static Aggregation Group Configuration
The Aggregation Group Configuration screen in Figure 4-5-3: appears.
