4.13.4 Dynamic IP Source Guard Table
Entries in the Dynamic IP Source Guard Table are shown on this page. The Dynamic IP Source Guard
Table is sorted first by port, then by VLAN ID, then by IP address, and then by IP mask. The Dynamic IP
Source Guard Table screen in Figure 4-13-4 appears.

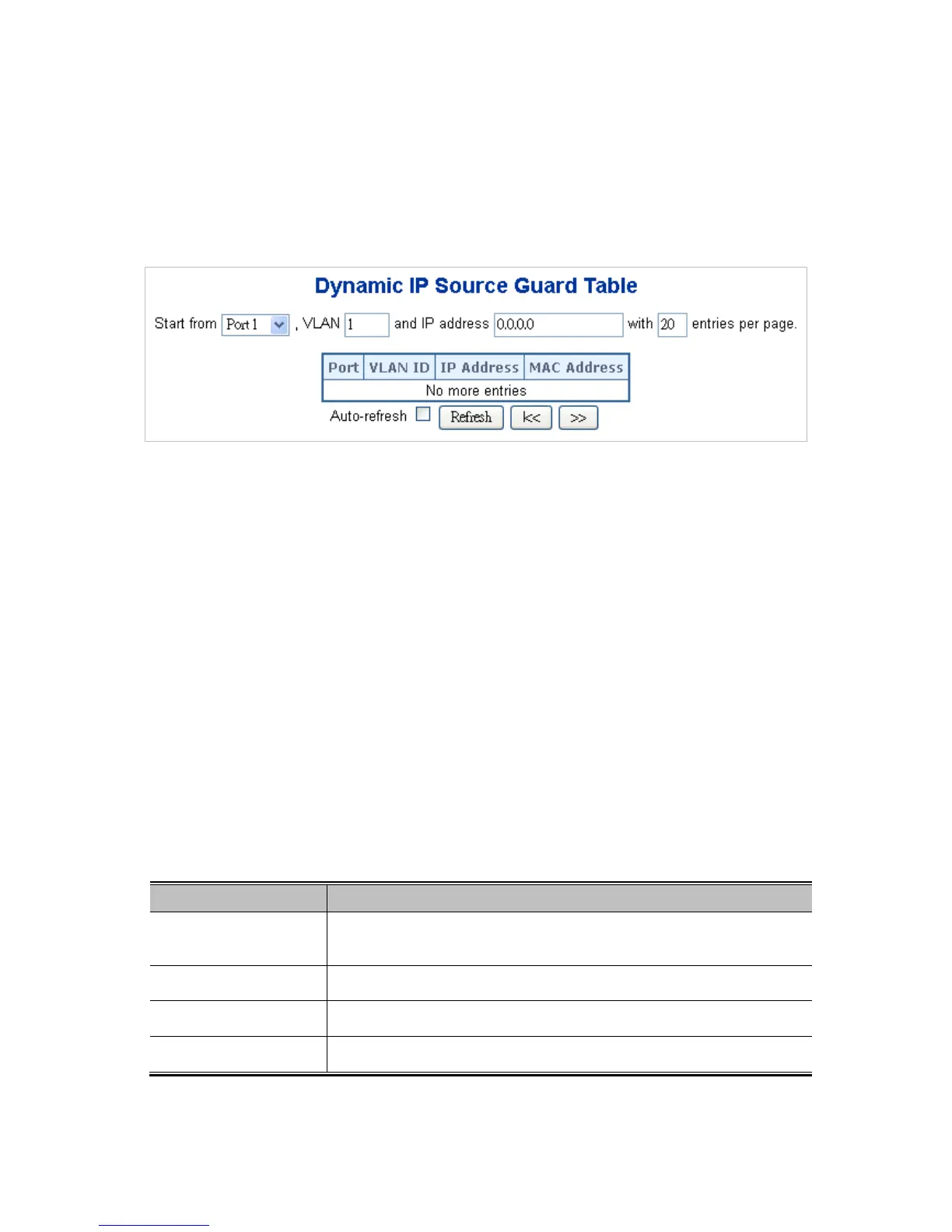

Figure 4-13-4: Dynamic IP Source Guard Table screenshot
Navigating the ARP Inspection Table
Each page shows up to 99 entries from the Dynamic IP Source Guard table, default being 20, selected
through the "entries per page" input field. When first visited, the web page will show the first 20
entries from the beginning of the Dynamic IP Source Guard Table.
The "Start from port address", "VLAN", "IP address" and "IP mask" input fields allow the user to select
the starting point in the Dynamic IP Source Guard Table. Clicking the “Refresh” button will update the
displayed table starting from that or the closest next Dynamic IP Source Guard Table match. In
addition, the two input fields will - upon a “Refresh” button click - assume the value of the first
displayed entry, allowing for continuous refresh with the same start address.
The “>>” will use the last entry of the currently displayed as a basis for the next lookup. When the end
is reached the text "No more entries" is shown in the displayed table. Use the “|<<” button to start
over.
The page includes the following fields:
Object Description
• Port
The port number for which the status applies. Click the port
number to see the status for this particular port.
• VLAN ID
The VLAN ID of the entry.
• MAC address
The MAC address of the entry.
• IP Address
The IP address of the entry.
