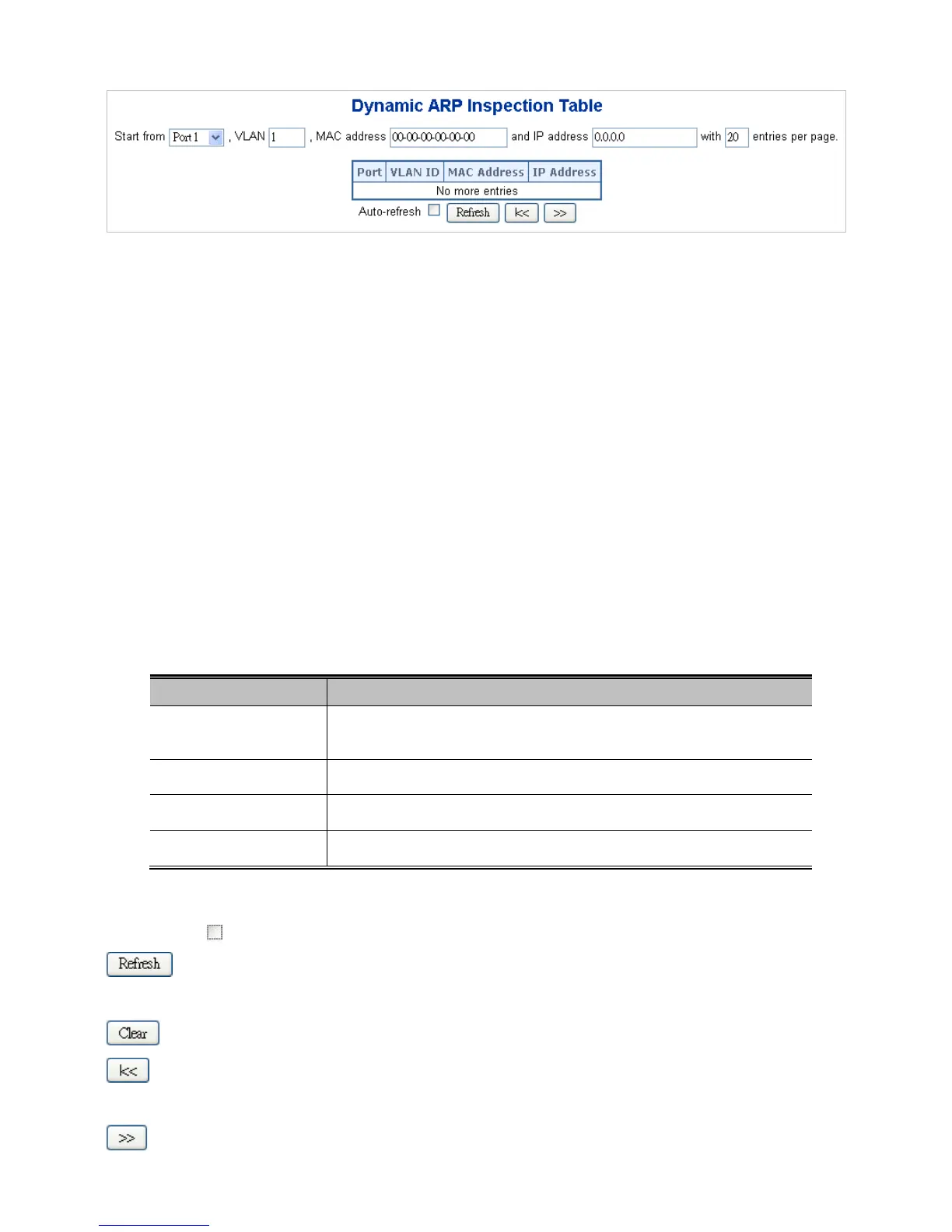

Figure 4-13-3: Dynamic ARP Inspection Table screenshot
Navigating the ARP Inspection Table
Each page shows up to 999 entries from the Dynamic ARP Inspection table, default being 20, selected
through the "entries per page" input field. When first visited, the web page will show the first 20
entries from the beginning of the Dynamic ARP Inspection Table.
The "Start from port address", "VLAN", "MAC address" and "IP address" input fields allow the user to
select the starting point in the Dynamic ARP Inspection Table. Clicking the “Refresh” button will update
the displayed table starting from that or the closest next Dynamic ARP Inspection Table match. In
addition, the two input fields will - upon a “Refresh” button click - assume the value of the first
displayed entry, allowing for continuous refresh with the same start address.
The “>>” will use the last entry of the currently displayed as a basis for the next lookup. When the end
is reached the text "No more entries" is shown in the displayed table. Use the “|<<” button to start
over.
The page includes the following fields:
Object Description
• Port
The port number for which the status applies. Click the port
number to see the status for this particular port.
• VLAN ID
The VLAN ID of the entry.
• MAC Address
The MAC address of the entry.
• IP Address
The IP address of the entry.
Buttons
Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
: Refreshes the displayed table starting from the "Start from MAC address" and "VLAN" input
fields.
: Flushes all dynamic entries.
: Updates the table starting from the first entry in the MAC Table, i.e. the entry with the lowest
VLAN ID and MAC address.
: Updates the table, starting with the entry after the last entry currently displayed.
