• Policy
Policy
Unknown: The network policy for the specified application type is
currently unknown.
Defined: The network policy is defined.
• TAG
TAG is indicating whether the specified application type is using a
tagged or an untagged VLAN. Can be Tagged or Untagged
Untagged: The device is using an untagged frame format and as
such does not include a tag header as defined by IEEE
802.1Q-2003.
Tagged: The device is using the IEEE 802.1Q tagged frame format
• VLAN ID
VLAN ID is the VLAN identifier (VID) for the port as defined in IEEE
802.1Q-2003. A value of 1 through 4094 is used to define a valid
VLAN ID. A value of 0 (Priority Tagged) is used if the device is
using priority tagged frames as defined by IEEE 802.1Q-2003,
meaning that only the IEEE 802.1D priority level is significant and
the default PVID of the ingress port is used instead.
• Priority
Priority is the Layer 2 priority to be used for the specified
application type. One of eight priority levels (0 through 7)
• DSCP
DSCP is the DSCP value to be used to provide Diffserv node
behavior for the specified application type as defined in IETF RFC
2474. Contain one of 64 code point values (0 through 63).
Buttons
: Click to refresh the page immediately.
Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
4.14.5 Neighbor
This page provides a status overview for all LLDP neighbors. The displayed table contains a row for each
port on which an LLDP neighbor is detected. The LLDP Neighbor Information screen in Figure 4-14-4
appears.

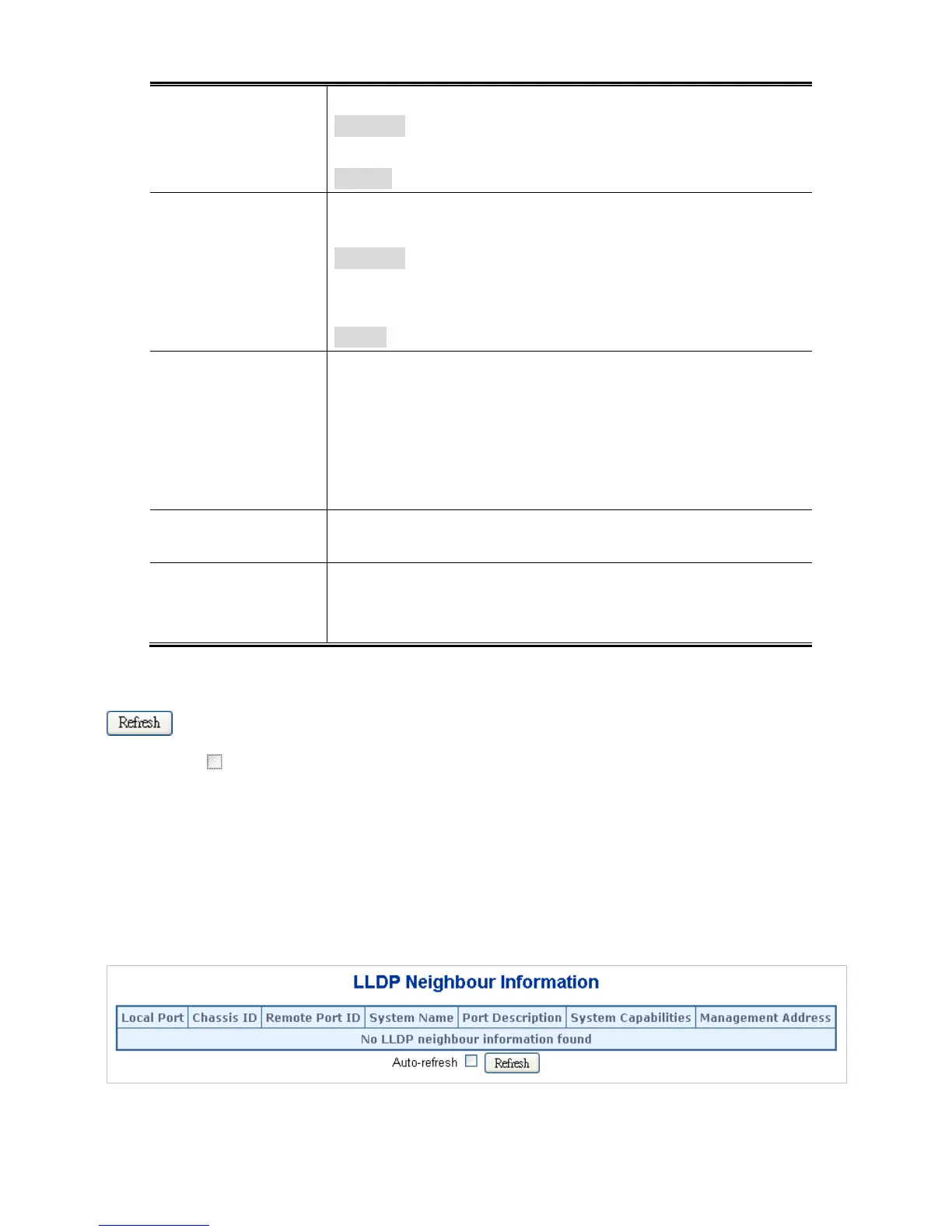

Figure 4-14-4: LLDP Neighbor Information page screenshot
The page includes the following fields:
