Private VLANs are based on the source port mask, and there are no connections to VLANs. This means
that VLAN IDs and Private VLAN IDs can be identical.
A port must be a member of both a VLAN and a Private VLAN to be able to forward packets. By default,
all ports are VLAN unaware and members of VLAN 1 and Private VLAN 1.
A VLAN unaware port can only be a member of one VLAN, but it can be a member of multiple Private
VLANs.
The Private VLAN screen in Figure 4-6-6 appears.

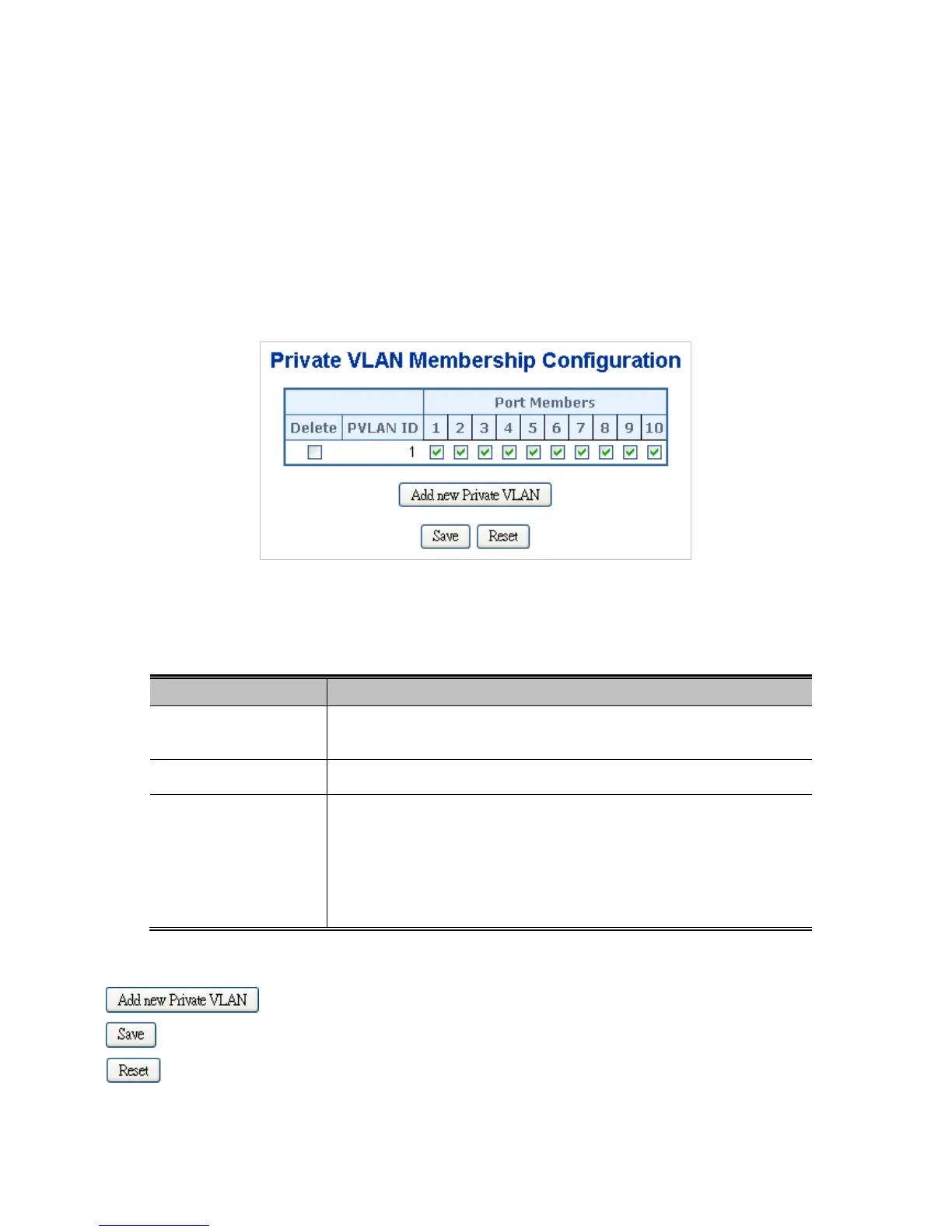

Figure 4-6-6: Private VLAN Membership Configuration page screenshot
The page includes the following fields:
Object Description
• Delete
To delete a private VLAN entry, check this box. The entry will be
deleted during the next save.
• Private VLAN ID
Indicates the ID of this particular private VLAN.
• Port Members
A row of check boxes for each port is displayed for each private
VLAN ID. To include a port in a Private VLAN, check the box. To
remove or exclude the port from the Private VLAN, make sure the
box is unchecked. By default, no ports are members, and all
boxes are unchecked.
Buttons
: Click to add new VLAN.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
