Setup steps
1. Assign Port Mode
Set Port-1~Port-4 in Isolate port.
Set Port5 and Port-6 in Promiscuous port. The screen in Figure 4-6-15 appears.

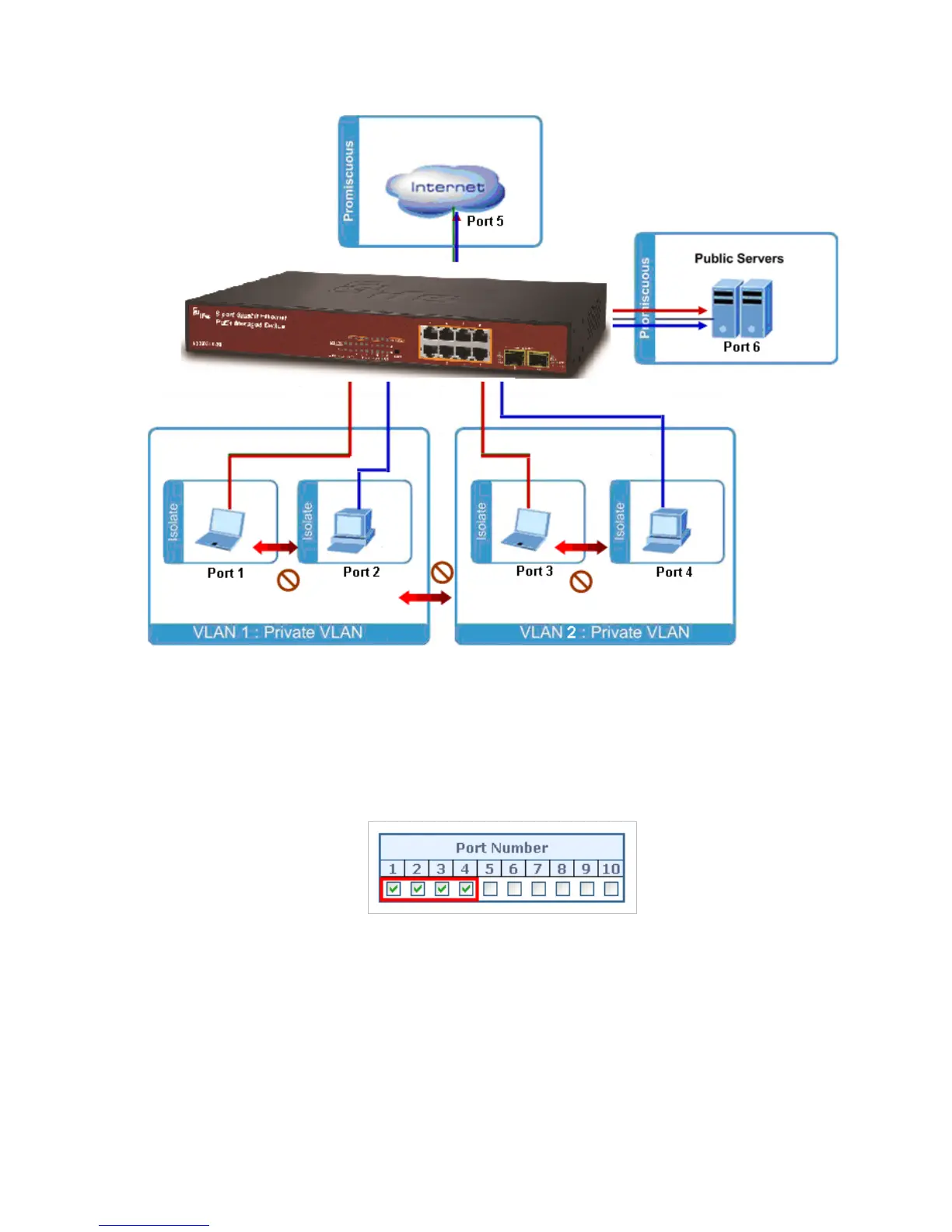

Figure 4-6-15: The configuration of Isolate and Promiscuous port
2. Assign VLAN Member :
VLAN 1 : Port-1, Port-2, Port-5 and Port-3
VLAN 2: Port-3~Port-6. The screen in Figure 4-6-16 appears.
