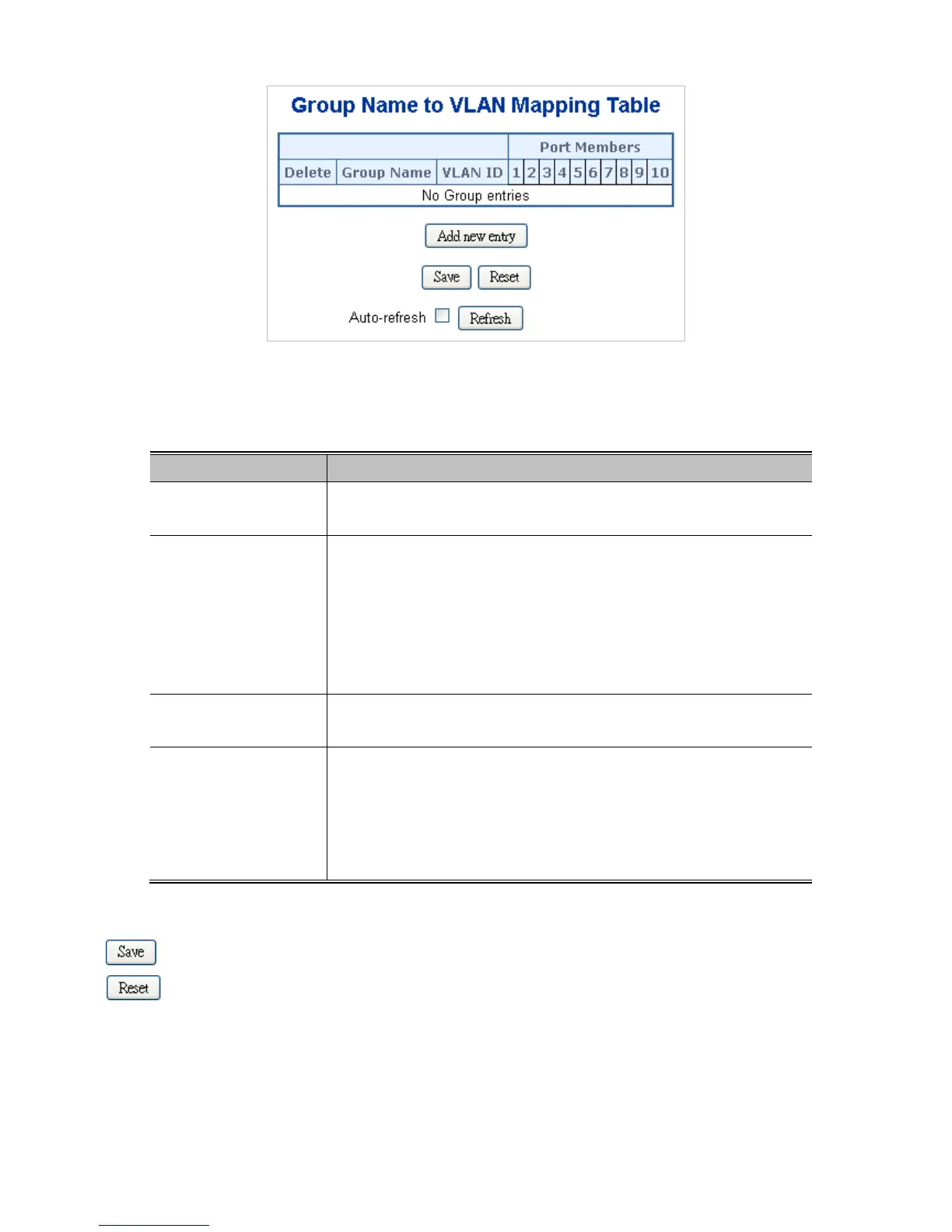

Figure 4-6-20: Group Name to VLAN Mapping Table page screenshot
The page includes the following fields:
Object Description
• Delete
To delete a Group Name to VLAN map entry, check this box. The
entry will be deleted on the switch during the next Save
• Group Name
A valid Group Name is a string of almost 16 characters which
consists of a combination of alphabets (a-z or A-Z) and integers
(0-9), no special character is allowed. Whichever Group name you
try map to a VLAN must be present in Protocol to Group mapping
table and must not be preused by any other existing mapping
entry on this page.
• VLAN ID
Indicates the ID to which Group Name will be mapped. A valid
VLAN ID ranges from 1-4095.
• Port Members
A row of check boxes for each port is displayed for each Group
Name to VLAN ID mapping. To include a port in a mapping, check
the box. To remove or exclude the port from the mapping, make
sur
e the box is unchecked. By default, no ports are members, and
all boxes are unchecked.
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
