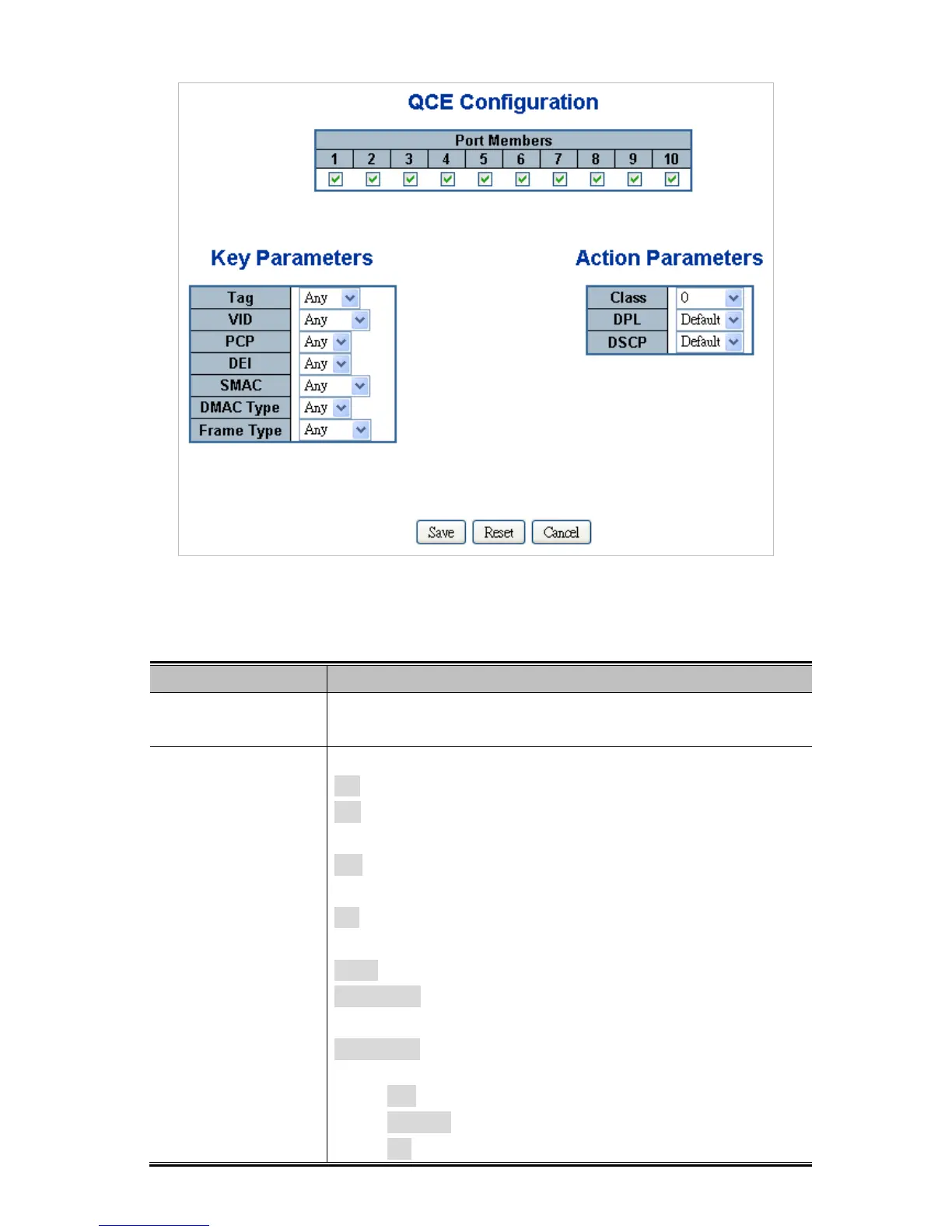

Figure 4-9-14: QCE Configuration page screenshot
The page includes the following fields:
Object Description
• Port Members
Check the checkbox button in case you what to make any port
member of the QCL entry. By default all ports will be checked
• Key Parameters
Key configuration are described as below:
Tag Value of Tag field can be 'Any', 'Untag' or 'Tag'
VID Valid value of VLAN ID can be any value in the range 1-4095
or 'Any'; user can enter either a specific value or a range of VIDs
PCP Priority Code Point: Valid value PCP are specific(0, 1, 2, 3, 4,
5, 6, 7) or range(0-1, 2-3, 4-5, 6-7, 0-3, 4-7) or 'Any'
DEI Drop Eligible Indicator: Valid value of DEI can be any of values
between 0, 1 or 'Any'
SMAC Source MAC address: 24 MS bits (OUI) or 'Any'
DMAC Type Destination MAC type: possible values are
unicast(UC), multicast(MC), broadcast(BC) or 'Any'
Frame Type Frame Type can have any of the following values
1. Any
2. Ethernet
3. LLC
