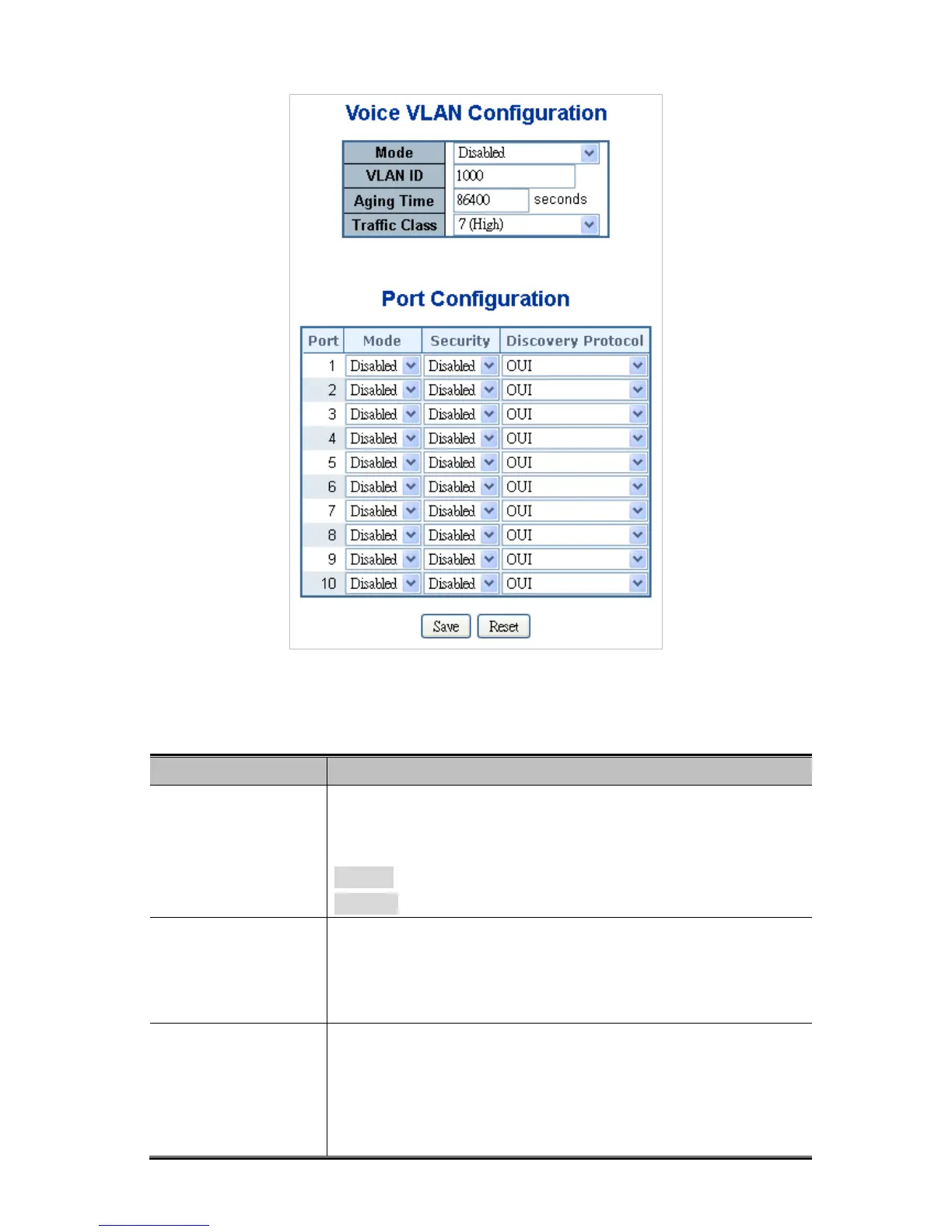

Figure 4-9-18: Voice VLAN Configuration page screenshot
The page includes the following fields:
Object Description
• Mode
Indicates the Voice VLAN mode operation. We must disable MSTP
feature before we enable Voice VLAN. It can avoid the conflict of
ingress filter. Possible modes are:
Enabled: Enable Voice VLAN mode operation.
Disabled: Disable Voice VLAN mode operation.
• VLAN ID
Indicates the Voice VLAN ID. It should be a unique VLAN ID in the
system and cannot equal each port PVID. It is conflict
configuration if the value equal management VID, MVR VID, PVID
etc. The allowed range is 1 to 4095.
• Age Time
Indicates the Voice VLAN secure learning age time. The allowed
range is 10 to 10000000 seconds. It used when security mode or
auto detect mode is enabled. In other cases, it will based
hardware age time. The actual age time will be situated in the
[age_time; 2 * age_time] interval.
