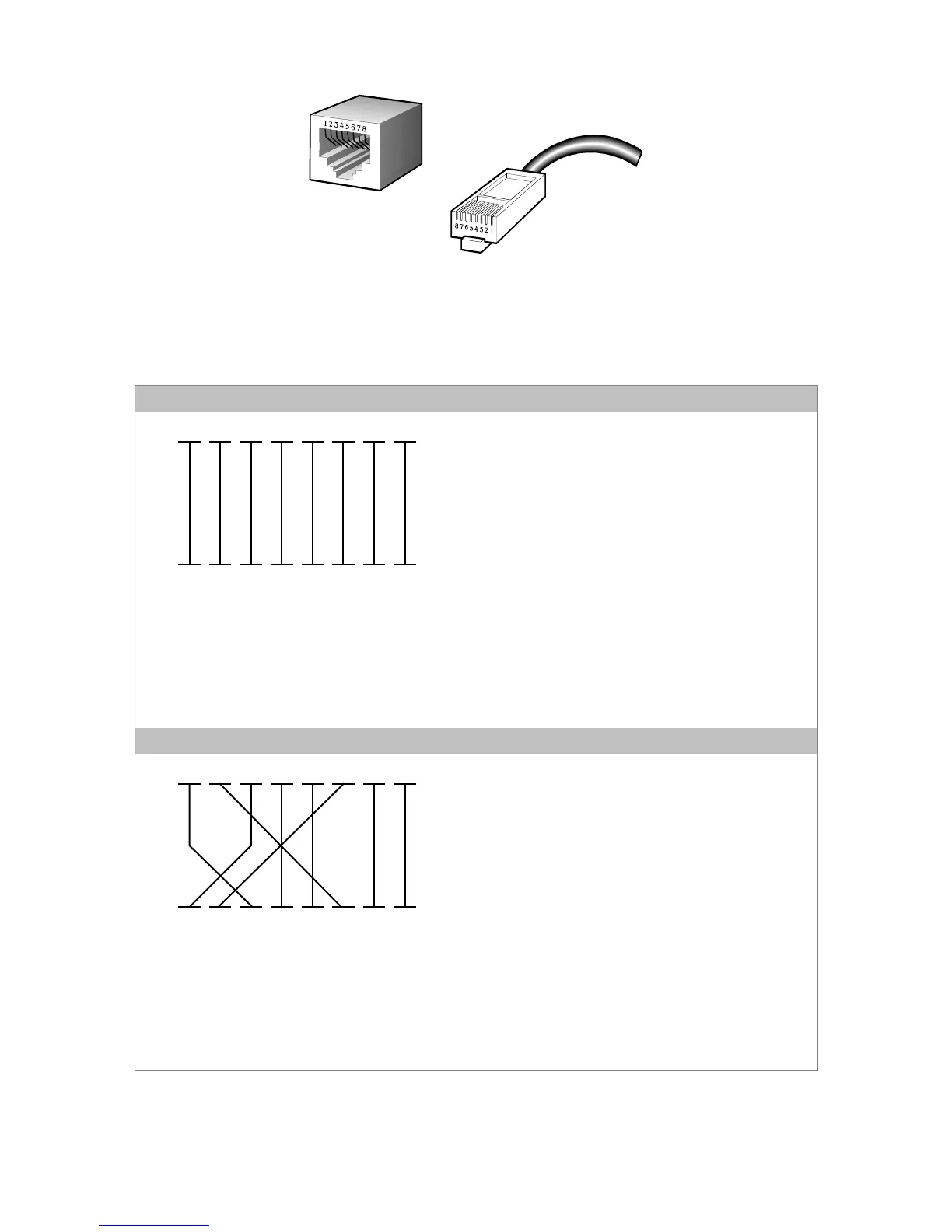

The standard RJ-45 receptacle/connector
There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the
pin allocation and color of straight cable and crossover cable connection:
Straight Cable SIDE 1 SIDE2
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
SIDE 1 1 = White /
Orange
2 = Orange
3 = White /
Green
4 = Blue
5 = White /
Blue
6 = Green
7 = White /
Brown
8 = Brown
1 = White /
Orange
2 = Orange
3 = White /
Green
4 = Blue
5 = White /
Blue
6 = Green
7 = White /
Brown
8 = Brown SIDE 2
Crossover Cable SIDE 1 SIDE2
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
SIDE 1 1 = White /
Orange
2 = Orange
3 = White /
Green
4 = Blue
5 = White /
Blue
6 = Green
7 = White /
Brown
8 = Brown
1 = White /
Green
2 = Green
3 = White /
Orange
4 = Blue
5 = White /
Blue
6 = Orange
7 = White /
Brown
8 = Brown SIDE 2
Figure A-1: Straight-Through and Crossover Cable
Please make sure your connected cables are with same pin assignment and color as above picture
before deploying the cables into your network.
