IFS NS3502-8P-2S User Manual
98

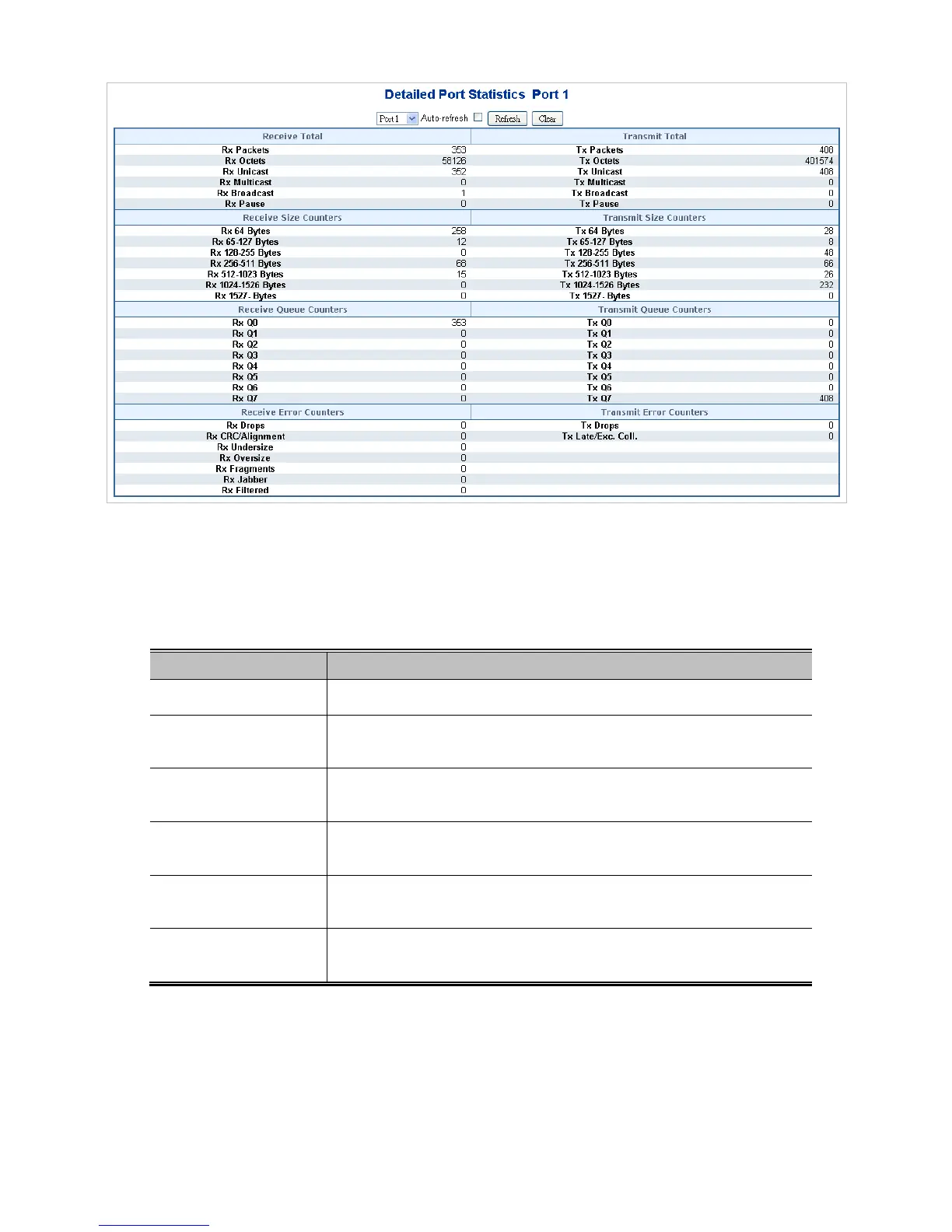

Figure 4-4-4: Detailed Port Statistics Port 1 page screenshot
The page includes the following fields:
Receive Total and Transmit Total
Object Description
• Rx and Tx Packets
The number of received and transmitted (good and bad) packets
• Rx and Tx Octets
The number of received and transmitted (good and bad) bytes.
Includes FCS, but excludes framing bits.
• Rx and Tx Unicast
The number of received and transmitted (good and bad) unicast
packets.
• Rx and Tx Multicast
The number of received and transmitted (good and bad)
multicast packets.
• Rx and Tx
Broadcast
The number of received and transmitted (good and bad)
broadcast packets.
• Rx and Tx Pause
A count of the MAC Control frames received or transmitted on
this port that have an opcode indicating a PAUSE operation.
Receive and Transmit Size Counters
The number of received and transmitted (good and bad) packets split into categories based on
their respective frame sizes.
