GAPS - User Guide

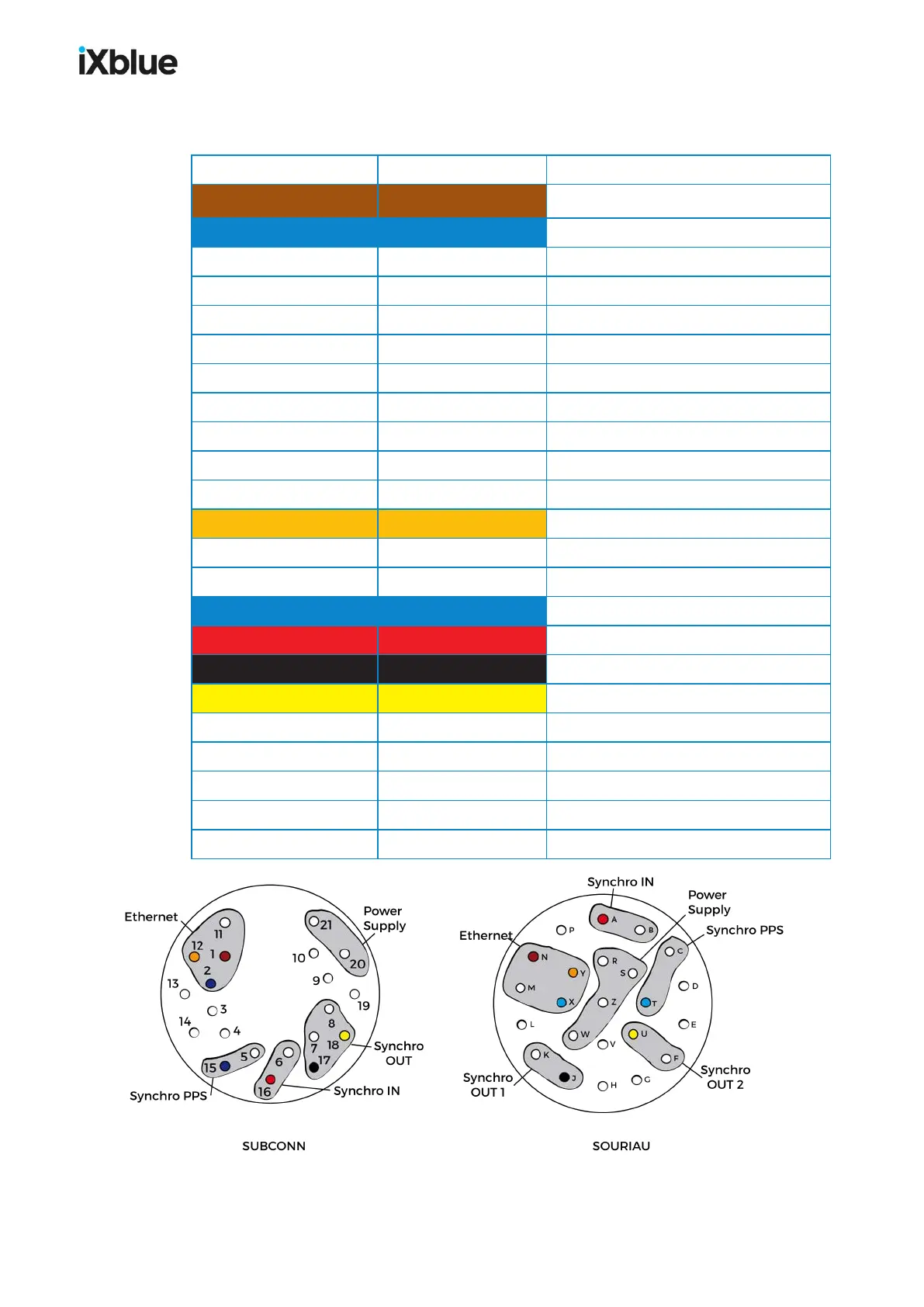

Table 2 - Wiring of the 23-pin SOURIAU and 21-pin SUBCONN connectors
SUBCONN (GAPS side) SOURIAU (BOX side) Signal
1 N Ethernet Rx-
2 X Ethernet Tx-
3 Not Connected
4 Not Connected , used by iXblue GPS
5 C Sync PPS–
6 B Sync IN 1-
7 K Sync OUT 1–
8 F Sync OUT 2–
9 Not Connected
10 Not Connected
11 M Ethernet Rx+
12 Y Ethernet Tx+
13 Not Connected
14 Not Connected , used by iXblue GPS
15 T Sync PPS+
16 A Sync IN+
17 J Sync OUT 1+
18 U Sync OUT 2+
19 Not Connected
20 R,W Power Supply -
21 Z,S Power Supply +
D,E,G Ethernet and Synchro pairs shield
H,L,P,V Reserved by iXblue
MU-GAPS-AN-005-H - November 2019 27
