GAPS - User Guide
4.4.2.2 Configuration Procedure
The configuration procedure of output data is detailed in this section.

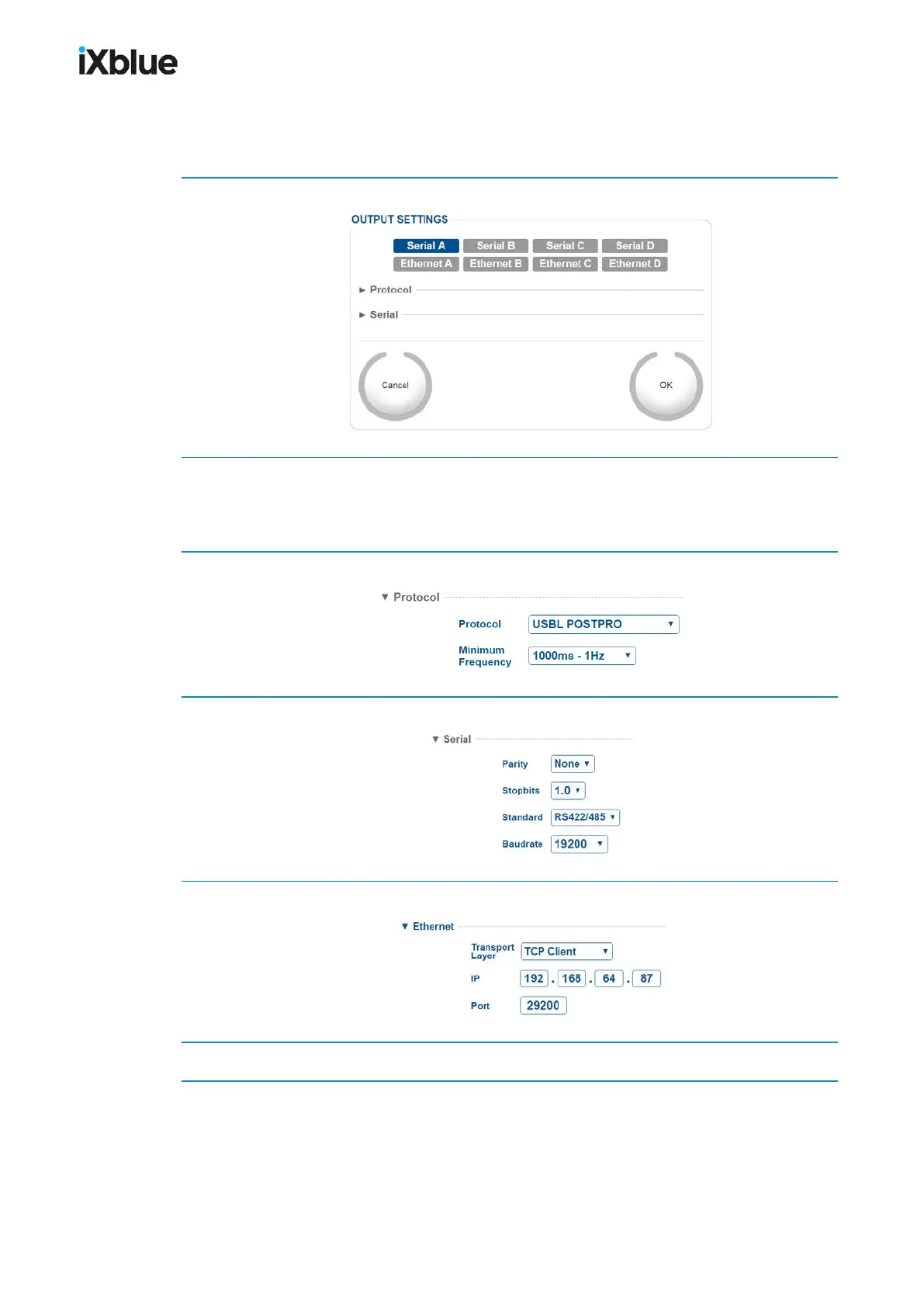

1. Click on the INSTALLATION > OUTPUTS menu.
2. Click on the port of your choice: Serial A, B, C, D or Ethernet A, B, C, D.
The selected port is highlighted in blue. According to the type of link, the Serial or Ethernet
component appears below.
3. In Protocol, select a Protocol and a Frequency if necessary:
4. If you have selected a Serial link, enter the parameters of this link:
5. If you have selected an Ethernet link, enter the parameters of the link:
6. Click on OK to validate your output configuration positioning data.
72 MU-GAPS-AN-005-H - November 2019
