iXBlue GAPS - Optional Repeater Box for the Main Cable

GAPS - User Guide
2.2.3.2 Optional Repeater Box for the Main Cable
The Repeater Box is necessary when two main cables (95 + 95 m or 95 + 50 m) are used
simultaneously between the GAPS BOX and the GAPS unit. The Repeater Box realizes the
junction between the two cables. Standard main cables are used so the connectors on the
Repeater Box are similar to connectors on the GAPS BOX and on the GAPS antenna.

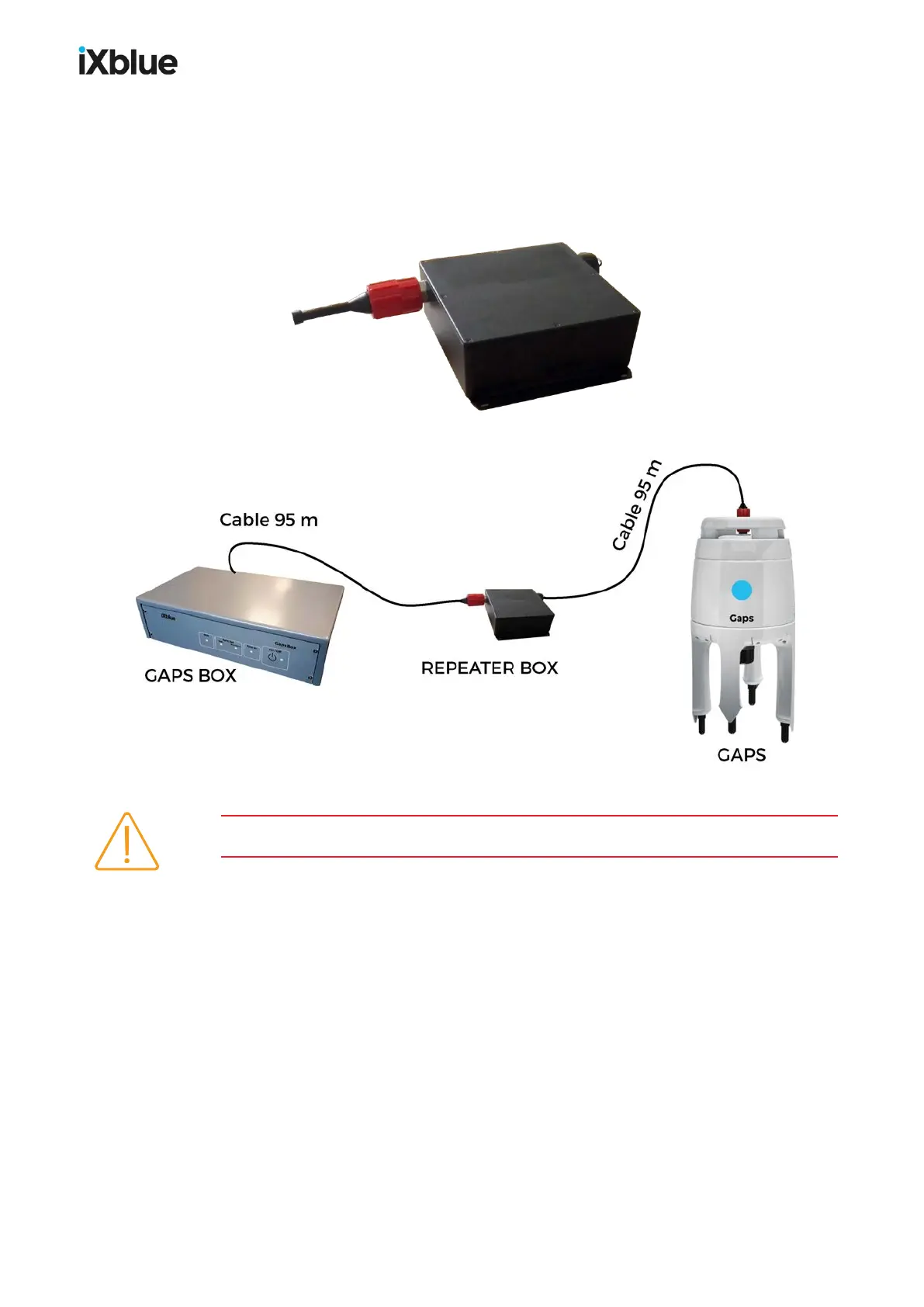

Figure 10 - GAPS Repeater Box
Figure 11 - GAPS Repeater Box operation principle (95 m + 50 m or 2 x 95 m)
Only one Repeater Box can be used with a GAPS unit.
Specifications
The general characteristics of the Repeater Box are the following:
● Weight 2.15 kg
● Size: 217 x 188 x 68.5 mm
● Operating temperature: -20°C / +70°C
● Storage temperature: -20°C / +80°C
● IP rating classification: IP65
The mechanical drawing of the Repeater Box is available in appendix K.
Power Supply
Power supply from GAPS BOX: 32 to 38.5 VDC (for 1 repeater box and two 95 m cables).
Connectors
The SOURIAU 23-points connector (SOURIAU UT01823SH6) and its wiring are the same as
on the GAPS BOX. The wiring description is to be found in the GAPS user guide.
The SUBCONN 21-points connector (SUBCONN MCOM21M) and its wiring are the same as
on the GAPS antenna. The wiring description is to be found in the GAPS user guide.
28 MU-GAPS-AN-005-H - November 2019
