GAPS - User Guide

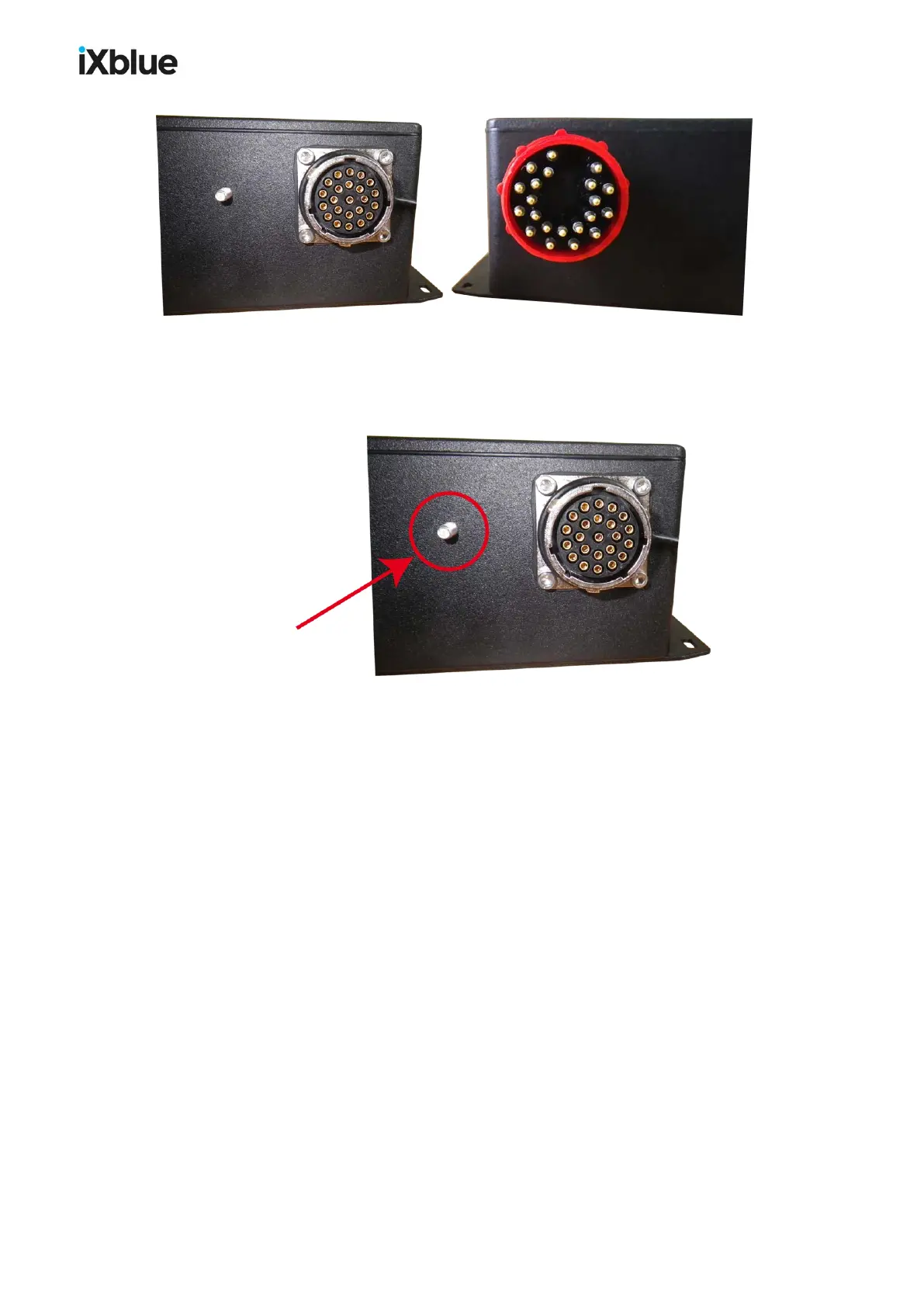

Figure 12 - SOURIAU (left) and SUBCONN (right) connectors
Installation
The Repeater Box is classified IP65. We recommend an indoor installation. The repeater box
may be installed on any vertical or horizontal surface.
Electrical
Ground
The Repeater Box must be connected to the electrical ground and shield via the threaded rod.
Figure 13 - Shield threaded rod
MU-GAPS-AN-005-H - November 2019 29
