GAPS - User Guide
2.2.3.6 Power Supply
AC Power
Supply
The whole system (GAPS + BOX + computer) must be powered by a 100 - 240 V / 50 Hz
source. The 100 – 240 VAC is converted into 36 VDC inside the BOX.
Consumption
● Less than 100 W during the 4 s boot sequence
● 37 Wafter boot sequence
● 60 Wduring the 100 ms transmission
The 100 – 240 V socket-outlet shall be installed near the equipment and shall be easily
accessible. The BOX must be power supplied with either VAC or VDC but not both
simultaneously.
DC Power
Supply
GAPS is powered by a 24 to 36 V / 50 W DC source on a 4-pins SOURIAU UTO00104PH
connector. The DC connector is the only way to disconnect the DC power supply (no switch).

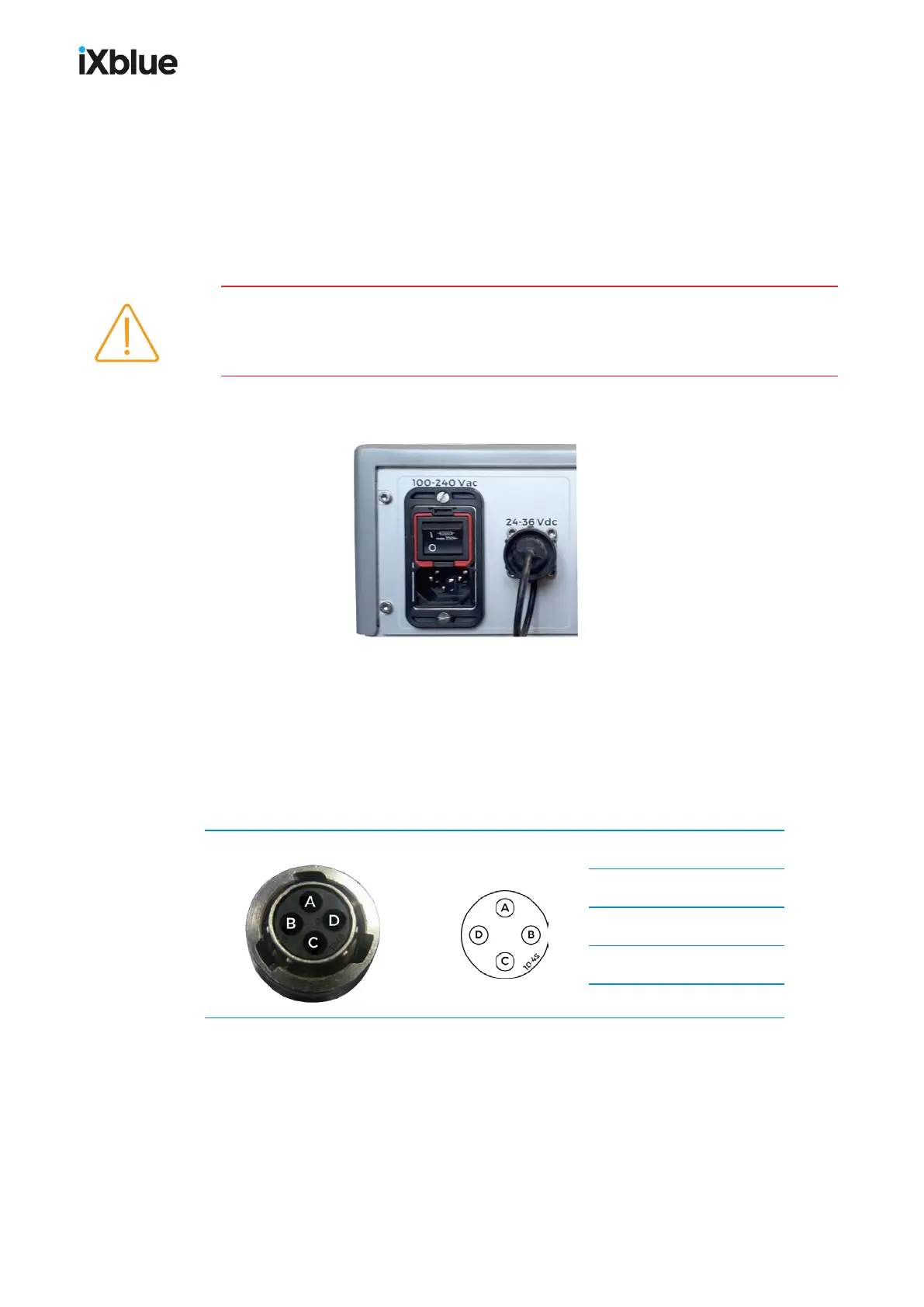

Figure 17 - AC-DC power supply connectors
DC Cable
The GAPS BOX is supplied with a SOURIAU female connector UTO00104PH on which can
be welded a 24 – 36 VDC power supply cable of your own. The female connector is made of
the following references (1 x UT06104SH, 4 x RC16SE4K, 1 x UTG10ST). The minimal wire
section of DC power cable is 0.75 mm2.
Table 7 - Connector and wiring of the 24 – 36 VDC external power supply connector
Standalone female connector
Male connector wiring
Pin # Signal
A +VCC
B GND
C Earth
D Earth
34 MU-GAPS-AN-005-H - November 2019
